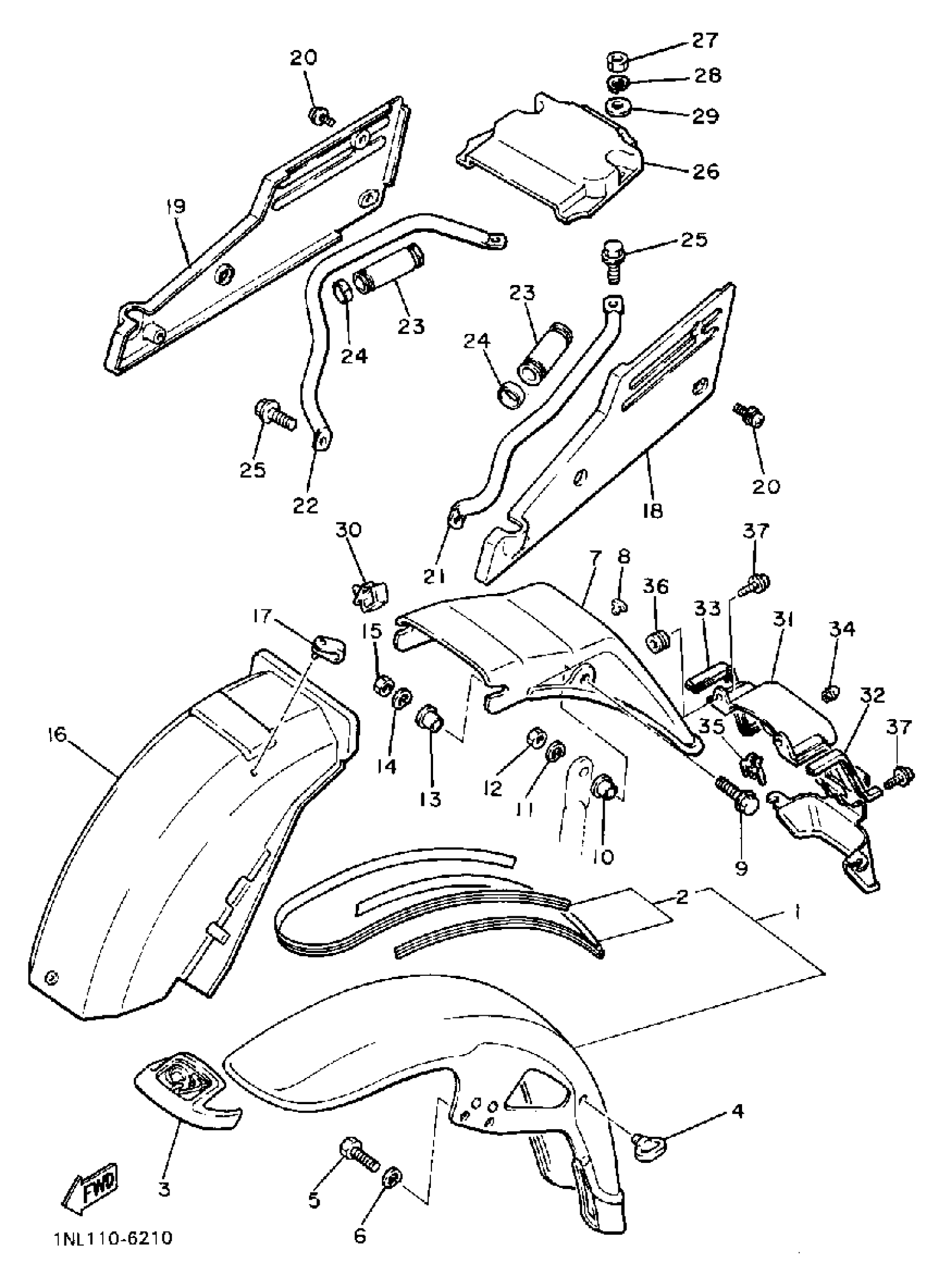

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FENDER Diagram
#
1
FENDER, FRONTCOMP
1NL-Y2151-00-JW
Unavailable
1
FENDER, FRONTCOMP
1NL-Y2151-10-2X
Unavailable
1
FENDER, FRONTCOMP
1NL-Y2151-10-NR
Unavailable
1
FENDER, FRONTCOMP
1NL-Y2151-20-8X
Unavailable
2
. GRPHC SET, FRT FNDR
1NL-21570-00-00
Unavailable
2
. GRPHC SET, FRT FNDR FRONT FENDER
1NL-21570-10-00
Unavailable
2
. GRPHC SET, FRT FNDR FRONT FENDER
1NL-21570-20-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER
31M-21570-10-00
Unavailable
3
MASCOT
1NL-21577-00-00
Unavailable
7
FENDER, rear
1NL-21611-00-00
Unavailable
10
COLLAR
90387-08564-00
Unavailable
12
NUT(6L2)
95333-08600-00
Unavailable
13
COLLAR (3L1)
90387-07717-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
GUARD, mud
26H-21629-00-00
Unavailable
17
CLAMP (2H7)
90464-12027-00
Unavailable
18
COVER, rear fender 1
1NL-2163A-00-00
Unavailable
19
COVER, rear fender 2
1NL-2163E-00-00
Unavailable
20
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
21
STAY, rear
1NL-21644-01-00
Unavailable
22
STAY, rear
1NL-21645-01-00
Unavailable
23
GRIP 1
1NL-2164A-00-00
Unavailable
24
BAND
1NL-21646-00-00
Unavailable
25
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
26
COVER, rear fender 3
26H-2163F-01-00
Unavailable
27
NUT (J17)
95380-06800-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLATE
90201-06045-00
Unavailable
30
CLAMP (1J7)
90464-16025-00
Unavailable
31
FLAP
1NL-21621-01-00
Unavailable
31
FLAP
1NL-21621-01-00
Unavailable
31
FLAP
1NL-21621-01-00
Unavailable
31
FLAP
1NL-21621-01-00
Unavailable
32
MOULDING
1NL-21694-00-00
Unavailable
33
MOULDING
1NL-21695-00-00
Unavailable
34
PLUG
90338-07018-00
Unavailable
35
NUT, rear fender
1NL-21635-00-00
Unavailable
36
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
37
SCREW, WITH WASHER(35R)
90159-06093-00
Unavailable
