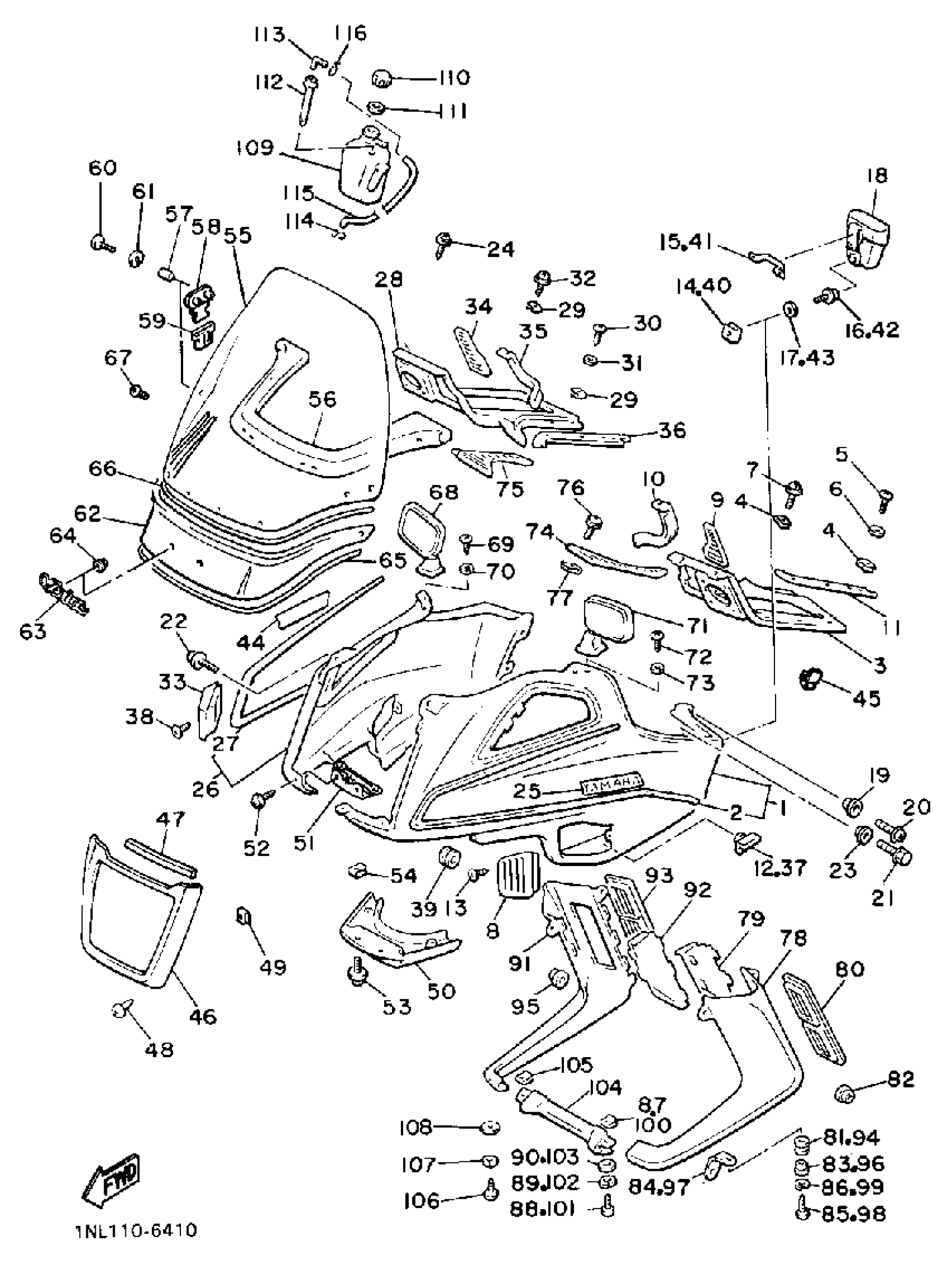

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FAIRING 1 Diagram
#
1
BODY, FRONT UPPER1 (1NL-Y283G-00-9X)
1NL-W283M-01-9X
Unavailable
1
BODY, FRONT UPPER 1 (1NL-Y283G-10-1Y)
1NL-W283M-11-1Y
Unavailable
1
BODY, FRONT UPPER 1 (1NL-Y283G-20-3Y)
1NL-Y283G-21-3Y
Unavailable
1
BODY, FRONT UPPER 1 (1NL-Y283G-30-4Y)
1NL-Y283G-31-4Y
Unavailable
2
. GRAPHIC, COWLING 1
1NL-28391-00-00
Unavailable
2
. GRAPHIC, COWLING 1
1NL-28391-10-00
Unavailable
2
. GRAPHIC, COWLING 1
1NL-28391-20-00
Unavailable
2
. GRAPHIC, COWLING 1
1NL-28391-30-00
Unavailable
3
PANEL, console 1
26H-2837L-02-00
Unavailable
5
SCREW, PAN HEAD
90157-05M19-00
Unavailable
8
GRILL, air intake 1
26H-2837N-01-33
Unavailable
9
GRILL, air outlet 1
26H-2837V-00-00
Unavailable
10
MOLE 5
26H-2834G-00-00
Unavailable
11
DAMPER, locating 1
26H-2836T-00-00
Unavailable
12
DAMPER
26H-28372-00-00
Unavailable
13
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
14
NUT, SPRING (26H)
90183-04027-00
Unavailable
15
BRACKET, POUCH
59G-28283-00-00
Unavailable
16
HOOK
59J-28379-00-00
Unavailable
17
WASHER, PLATE
90201-04027-00
Unavailable
18
POUCH, COWLING
3JJ-28281-00-00
Unavailable
19
COLLAR
90387-06107-00
Unavailable
20
SCREW, PAN
98507-06014-00
Unavailable
21
BOLT, FLANGE
95817-06020-00
Unavailable
22
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
23
COLLAR (8G8)
90387-06681-00
Unavailable
25
EMBLEM
26H-28328-00-00
Unavailable
26
BODY, FRONT UPPER 2 (1NL-Y283H-00-9X)
1NL-W283J-01-9X
Unavailable
26
BODY, FRONT UPPER 2 (1NL-Y283H-10-1Y)
1NL-W283J-11-1Y
Unavailable
26
BODY, FRONT UPPER 2 (1NL-Y283H-20-3Y)
1NL-Y283H-21-3Y
Unavailable
26
BODY, FRONT UPPER 2 (1NL-Y283H-30-4Y)
1NL-Y283H-31-4Y
Unavailable
27
. GRAPHIC, COWLING 2
1NL-28392-00-00
Unavailable
27
. GRAPHIC, COWLING 2
1NL-28392-10-00
Unavailable
27
. GRAPHIC, COWLING 2
1NL-28392-20-00
Unavailable
27
. GRAPHIC, COWLING 2
1NL-28392-30-00
Unavailable
28
PANEL, console 2
26H-2837M-01-00
Unavailable
30
SCREW, PAN HEAD
90157-05M19-00
Unavailable
33
GRILL, air intake 2
26H-2837R-01-33
Unavailable
34
GRILL, air outlet 2
26H-2837W-00-00
Unavailable
35
MOLE 6
26H-2834H-00-00
Unavailable
36
DAMPER, locating 2
26H-2836U-00-00
Unavailable
37
DAMPER
26H-28372-00-00
Unavailable
38
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
39
GROMMET
90480-40367-00
Unavailable
40
NUT, SPRING (26H)
90183-04027-00
Unavailable
41
BRACKET, POUCH
59G-28283-00-00
Unavailable
42
HOOK
59J-28379-00-00
Unavailable
43
WASHER, PLATE
90201-04027-00
Unavailable
44
EMBLEM
26H-28338-00-00
Unavailable
45
. CLAMP
90462-12131-00
Unavailable
46
RIM, HEADLIGHT
1NL-2835A-00-EM
Unavailable
46
RIM, HEADLIGHT
1NL-2835A-00-JW
Unavailable
46
RIM, HEADLIGHT
1NL-2835A-00-NR
Unavailable
46
RIM, HEADLIGHT
1NL-2835A-00-TY
Unavailable
47
PAD
1NL-28378-00-00
Unavailable
48
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
49
NUT, SPRING (26H)
90183-04027-00
Unavailable
50
GRILL, AIR INTAKE 3
26H-2837T-00-EM
Unavailable
50
GRILL, AIR INTAKE 3
26H-2837T-00-JW
Unavailable
50
GRILL, AIR INTAKE 3
26H-2837T-00-NR
Unavailable
50
GRILL, AIR INTAKE 3
26H-2837T-00-TY
Unavailable
51
PLATE
1NL-28336-00-00
Unavailable
55
SCREEN (41R-2837U-00)
ABA-26H01-11-00
Unavailable
56
MOLE 1
26H-28345-00-00
Unavailable
57
COLLAR
90387-056J6-00
Unavailable
58
PLATE, front
1NL-28361-00-00
Unavailable
59
DAMPER, SIDE COVER
2N4-21717-00-00
Unavailable
60
SCREW, PAN HEAD
90157-05M19-00
Unavailable
61
WASHER(3SX)
92907-05100-00
Unavailable
62
MOLE 2
1NL-28346-00-00
Unavailable
63
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
64
GROMMET(1KT)
90480-01445-00
Unavailable
65
MOLD 3
1NL-28347-01-00
Unavailable
66
NOLE 4
1NL-28348-01-00
Unavailable
67
SCREW (26H)
90149-05185-00
Unavailable
68
REAR VIEW MIRROR ASSY (RIGHT)
26H-26290-20-00
Unavailable
69
SCREW, PAN HEAD
98580-05020-00
Unavailable
70
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
71
REAR VIEW MIRROR ASSY (LEFT)
26H-26290-30-00
Unavailable
72
SCREW, PAN HEAD
98580-05020-00
Unavailable
73
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
74
HOOD 1
26H-2835E-00-00
Unavailable
75
HOOD 2
26H-2835F-00-00
Unavailable
78
BODY, FRONT LOWER 1
26H-2835J-01-EM
Unavailable
78
BODY, FRONT LOWER 1
26H-2835J-01-JW
Unavailable
78
BODY, FRONT LOWER 1
26H-2835J-01-NR
Unavailable
78
BODY, FRONT LOWER 1
26H-2835J-01-TY
Unavailable
79
PANEL, inner 4
26H-2836N-02-00
Unavailable
80
GRILL, air outlet 3
26H-2837X-00-00
Unavailable
81
GROMMET (1E6)
90480-15058-00
Unavailable
82
GROMMET
90480-08374-00
Unavailable
83
COLLAR (4N0)
90387-071E0-00
Unavailable
84
BRACKET 22
26H-2833X-02-00
Unavailable
85
SCREW PAN HEAD
98580-06020-00
Unavailable
86
WASHER, SPRING
92995-06100-00
Unavailable
87
NUT, SPRING (26H)
90183-06023-00
Unavailable
88
SCREW, PAN
98507-06014-00
Unavailable
89
WASHER, SPRING
92995-06100-00
Unavailable
90
WASHER, PLAIN (646)
92990-06600-00
Unavailable
91
BODY, FRONT LOWER 2
26H-2835K-01-EM
Unavailable
91
BODY, FRONT LOWER 2
26H-2835K-01-JW
Unavailable
91
BODY, FRONT LOWER 2
26H-2835K-01-NR
Unavailable
91
BODY, FRONT LOWER 2
26H-2835K-01-TY
Unavailable
92
PANEL, inner 5
26H-2836R-01-00
Unavailable
93
GRILL, air outlet 4
26H-2837Y-00-00
Unavailable
94
GROMMET (1E6)
90480-15058-00
Unavailable
95
GROMMET
90480-08371-00
Unavailable
96
COLLAR (4N0)
90387-071E0-00
Unavailable
97
BRACKET 23
26H-2833Y-02-00
Unavailable
98
SCREW PAN HEAD
98580-06020-00
Unavailable
99
WASHER, SPRING
92995-06100-00
Unavailable
100
NUT, SPRING (26H)
90183-06023-00
Unavailable
101
SCREW, PAN
98507-06014-00
Unavailable
102
WASHER, SPRING
92995-06100-00
Unavailable
103
WASHER, PLAIN (646)
92990-06600-00
Unavailable
104
FIN
26H-2835M-00-EM
Unavailable
104
FIN
26H-2835M-00-JW
Unavailable
104
FIN
26H-2835M-00-NR
Unavailable
104
FIN
26H-2835M-00-TY
Unavailable
105
NUT, SPRING (26H)
90183-06023-00
Unavailable
106
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
107
WASHER, SPRING
92907-06100-00
Unavailable
108
WASHER(6TA)
92907-06600-00
Unavailable
109
TANK, recovery
26H-21871-01-00
Unavailable
110
CAP
26H-21875-00-00
Unavailable
111
GASKET
26H-21874-00-00
Unavailable
112
PIPE 1
26H-21816-01-00
Unavailable
113
ELBOW
26H-21828-00-00
Unavailable
114
CLIP (7K7)
90467-11044-00
Unavailable
115
HOSE (M201)
91A10-07150-00
Unavailable
116
CLIP
90467-100A1-00
Unavailable
