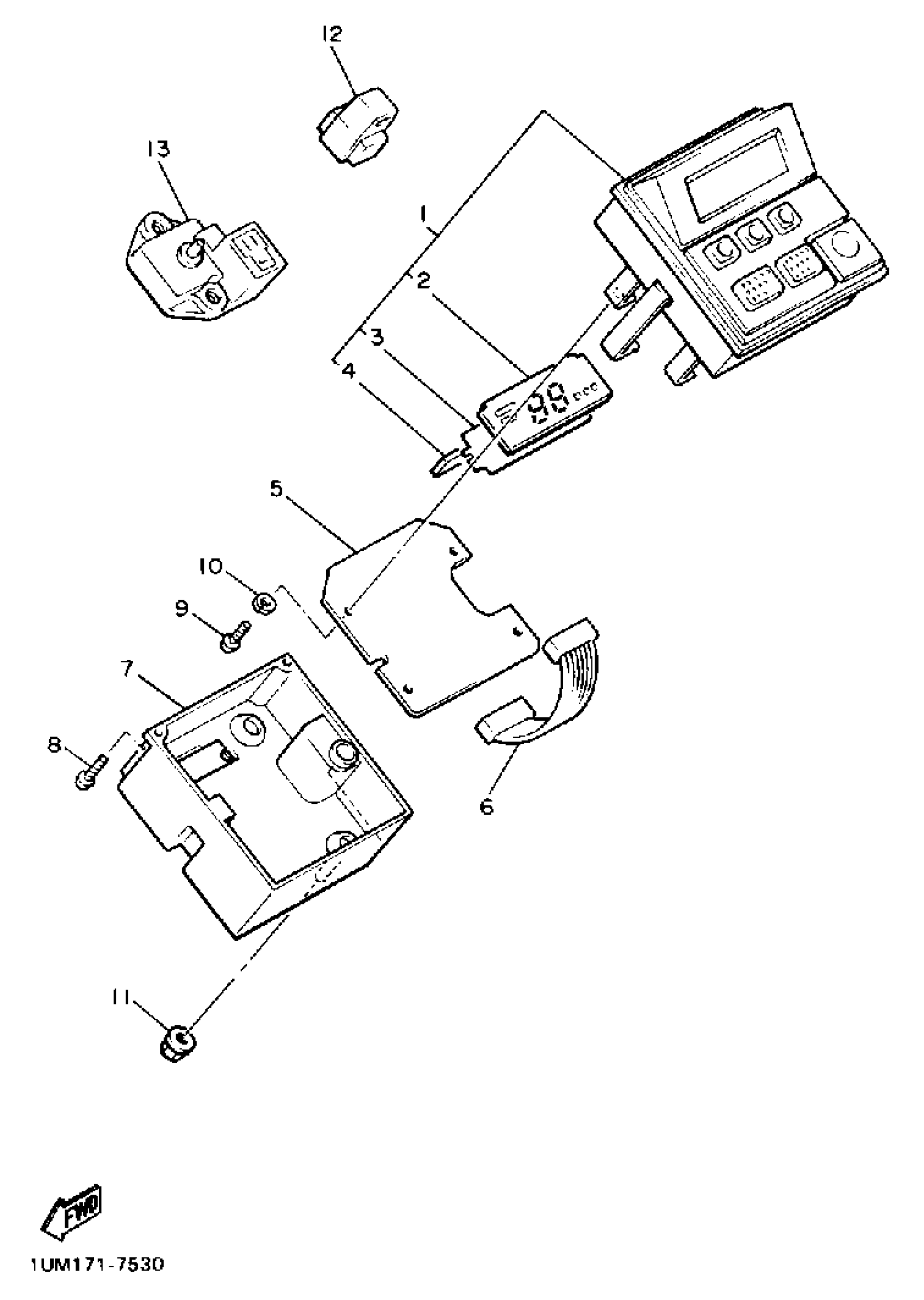

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 CONTROL UNIT Diagram

PRINT BOARD/CASE SET

31M-W8591-M0-00

Unavailable

. LCD UNIT

31M-85931-00-00

Unavailable

. REFLECTOR, lcd

31M-85933-00-00

Unavailable

CONNECTOR, LCD

(31M-85932-00-00)

Unavailable

PRINT BOARD ASS''Y 2

31M-85921-M0-00

Unavailable

WIRE, LEAD

26H-8356N-00-00

Unavailable

CASE, under

31M-85913-00-00

Unavailable

SCREW, TAPPING

90164-03016-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

WASHER(3SX)

92907-03600-00

$8.49

NUT, FLANGE

95707-04500-00

$8.49

RELAY ASSY

25G-81950-02-00

$47.99

PRESSURE, sensor

31M-85981-00-00

Unavailable
