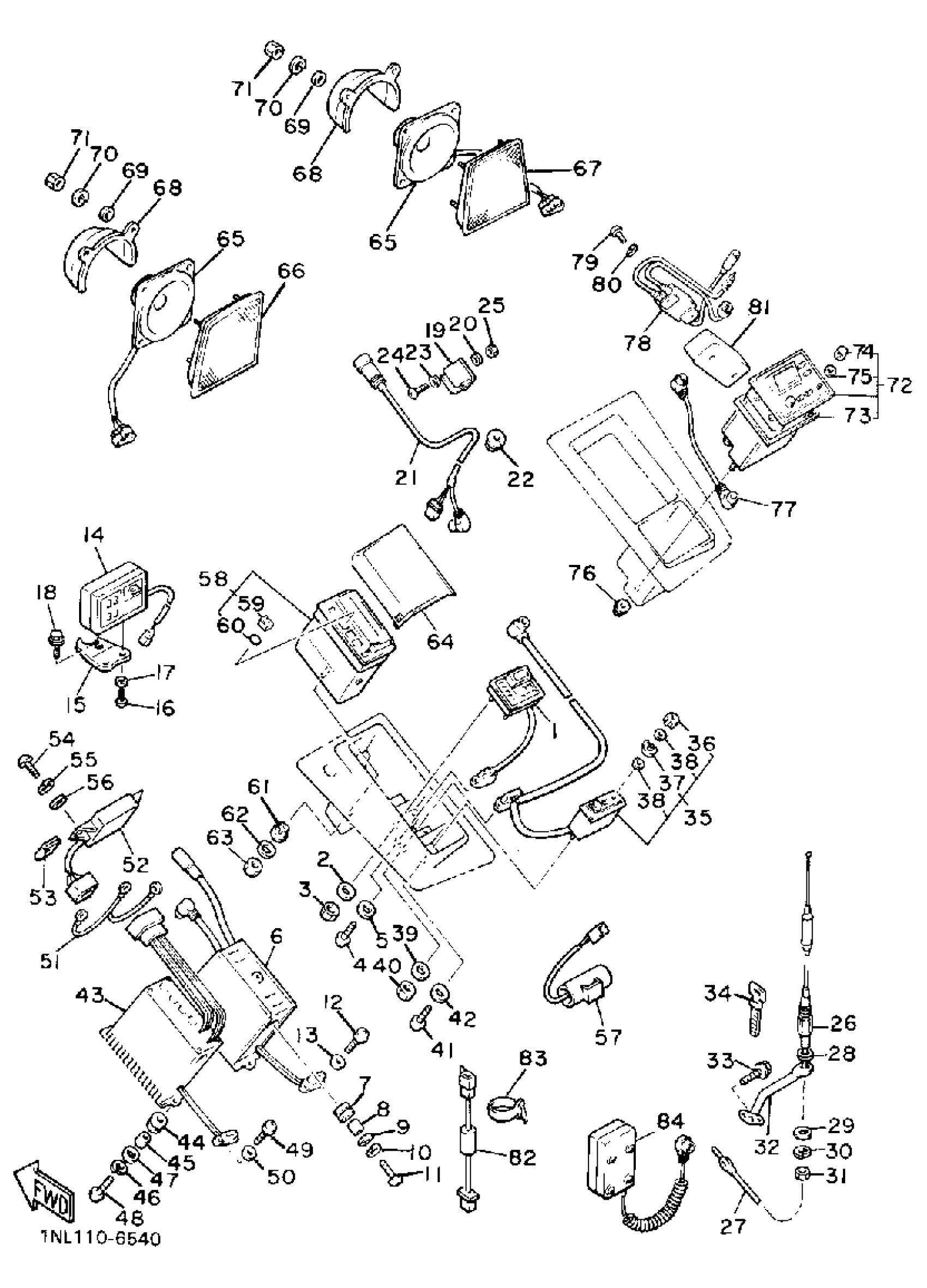

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 AUDIO EQUIPMENT 1 Diagram

CONTROL, tuner

26H-88121-01-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

NUT(6TA)

95307-04600-00

$8.49

SCREW, TAPPING (97702-30512-00)

97780-30512-00

Unavailable

WASHER(3SX)

92907-03600-00

$8.49

TUNER

26H-88122-02-00

Unavailable

. GROMMET

90480-09364-00

Unavailable

. COLLAR

90387-046N2-00

Unavailable

WASHER, plate

90201-045K9-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

SCREW, PAN HEAD

98511-04012-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

WASHER(3SX)

92907-03600-00

$8.49

REMOTE CONTROL 1

1NL-88168-00-00

Unavailable

BRACKET, remote control

1NL-88178-00-00

Unavailable

GASKET, EXHAUST

98507-05008-00

Unavailable

WASHER(1RW)

92907-05600-00

Unavailable

BOLT, FLANGE

95026-10016-00

Unavailable

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

COLLAR

90387-041K1-00

Unavailable

CORD, head set 1

1NL-88196-00-00

Unavailable

CAP

1NL-28349-00-00

Unavailable

WASHER, PLATE

90201-042E0-00

Unavailable

SCREW, PAN HEAD

98507-04018-00

Unavailable

NUT, FLANGE

95707-04500-00

Unavailable

POLE, ANTENNA

26H-88143-09-00

Unavailable

CABLE

26H-88146-00-00

Unavailable

WASHER, PLATE(4BP)

90202-17211-00

Unavailable

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT

90170-12329-00

Unavailable

BRACKET, antenna

1NL-88144-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

CONTROL, amp

26H-88131-02-00

Unavailable

BUTTON 1

26H-88137-00-00

Unavailable

KNOB 2

26H-88138-00-00

Unavailable

WASHER, gum

26H-88139-00-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

NUT(6TA)

95307-04600-00

$8.49

SCREW, TAPPING (97702-30512-00)

97780-30512-00

Unavailable

WASHER(3SX)

92907-03600-00

$8.49

AMP. POWER

26H-88132-01-00

Unavailable

. GROMMET

90480-09364-00

Unavailable

. COLLAR

90387-046N2-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

WASHER, plate

90201-045K9-00

Unavailable

SCREW, PAN HEAD

98511-04012-00

Unavailable

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

WASHER(3SX)

92907-03600-00

$8.49

. WIRE, earth lead

26H-8232Y-00-00

Unavailable

FILTER, noise

1NL-88188-00-00

Unavailable

NUT, SPRING

90183-051A0-00

Unavailable

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

. WASHER, PLAIN

92990-05200-00

Unavailable

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

CASSETTE DECK ASS''Y

26H-88150-01-00

Unavailable

BUTTON 1

26H-88157-00-00

Unavailable

O-RING

26H-88159-00-00

Unavailable

. DAMPER 2

26H-28227-00-00

Unavailable

WASHER, PLATE

90201-05023-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

Unavailable

. COVER, cassette deck

26H-88153-00-00

Unavailable

. SPEAKER 1

26H-88161-00-00

Unavailable

GRILLE, speaker 1

26H-88163-00-00

Unavailable

GRILLE, speaker 2

26H-88173-00-00

Unavailable

BOX, speaker 1

26H-88162-00-00

Unavailable

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

Unavailable

CB RADIO ASS''Y

59J-88180-01-00

Unavailable

. GASKET, cb

59J-8818E-00-00

Unavailable

. KNOB, cb

59J-8818F-00-00

Unavailable

. PACKING, cb

59J-8818G-00-00

Unavailable

NUT, FLANGE

95707-04500-00

Unavailable

CORD, cb

59J-88186-00-00

Unavailable

MATCHING BOX ASS''Y

1NL-88185-00-00

Unavailable

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

WASHER, PLAIN (646)

92990-04600-00

$5.99

COVER, matching box

59J-8818A-00-00

Unavailable

FILTER, noise

59J-88188-00-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

REMOTE CONTROL 1

1NL-88169-00-00

Unavailable
