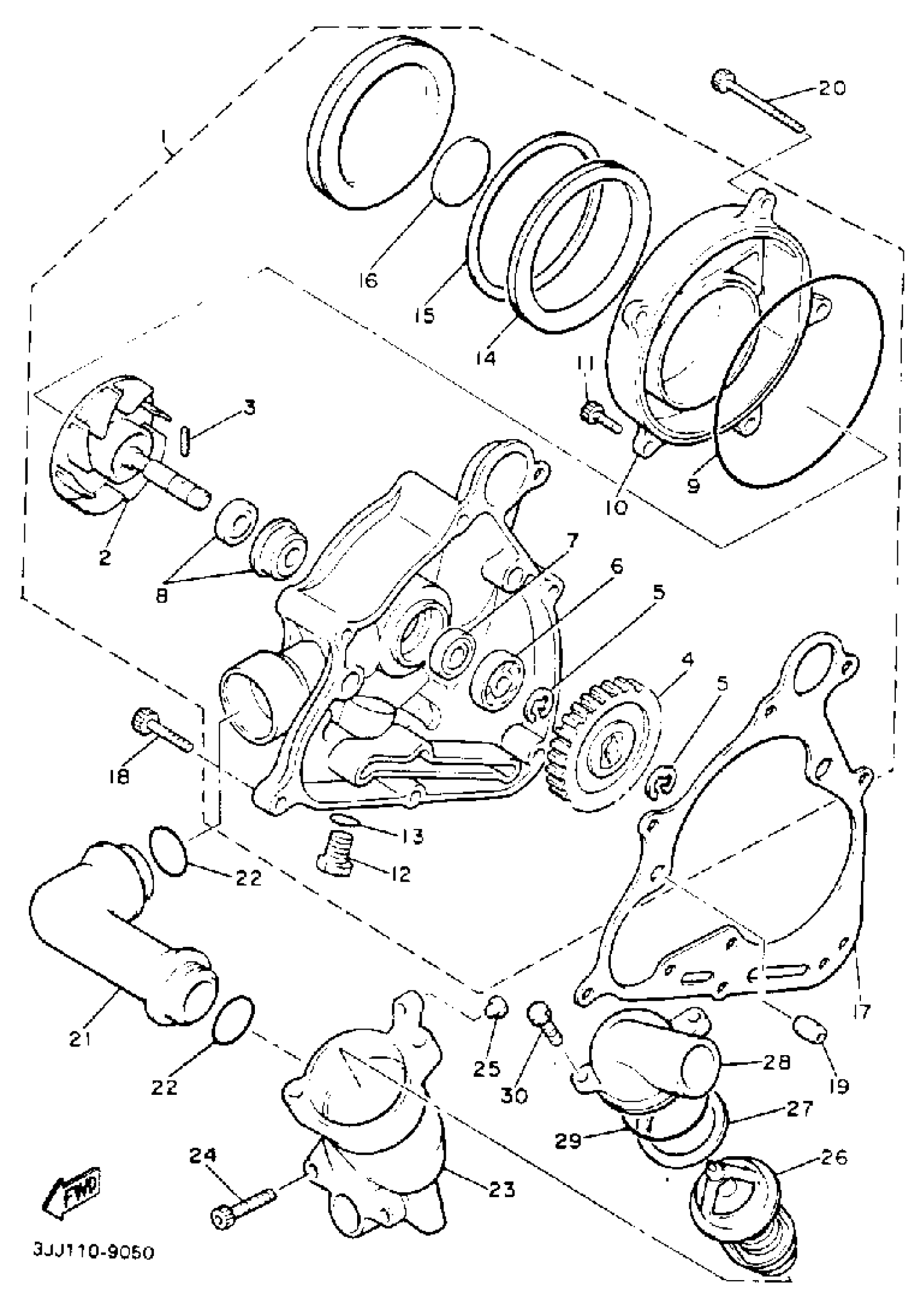

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 WATER PUMP Diagram

WATER PUMP ASS''Y

26H-12420-01-00

Unavailable

INPELLER SHAFT ASSY

1FK-12450-00-00

$122.99

PIN, DOWEL

93603-14026-00

$8.49

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

CIRCLIP(10W)

99009-10400-00

$4.73

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

OIL SEAL (J10)

93101-10090-00

$8.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

O-RING (26H)

93211-16591-00

$15.99

. COVER, housing

26H-12422-00-00

Unavailable

BOLT, SOCKET

91314-06016-00

$8.49

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

GASKET

214-11198-01-00

$3.17

DAMPER 4

26H-15337-01-00

Unavailable

CLIP (26H)

90468-98132-00

$11.49

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

Unavailable

GASKET, WATER PUMP

3JP-12449-02-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

BOLT, SOCKET

91314-06065-00

Unavailable

JOINT

26H-12446-00-00

Unavailable

O-RING(1KT)

93210-27778-00

Unavailable

HOUSING, THERMOSTAT

1FK-12417-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

PLUG (13K)

90338-06134-00

Unavailable

THERMOSTAT ASSY

99999-03066-00

Unavailable

SEAL, THERMOSTAT

11H-12412-00-00

Unavailable

COVER, THERMOSTAT

26H-12413-00-00

Unavailable

O-RING(1EY)

93210-43713-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(47X)

90110-06084-00

Unavailable
