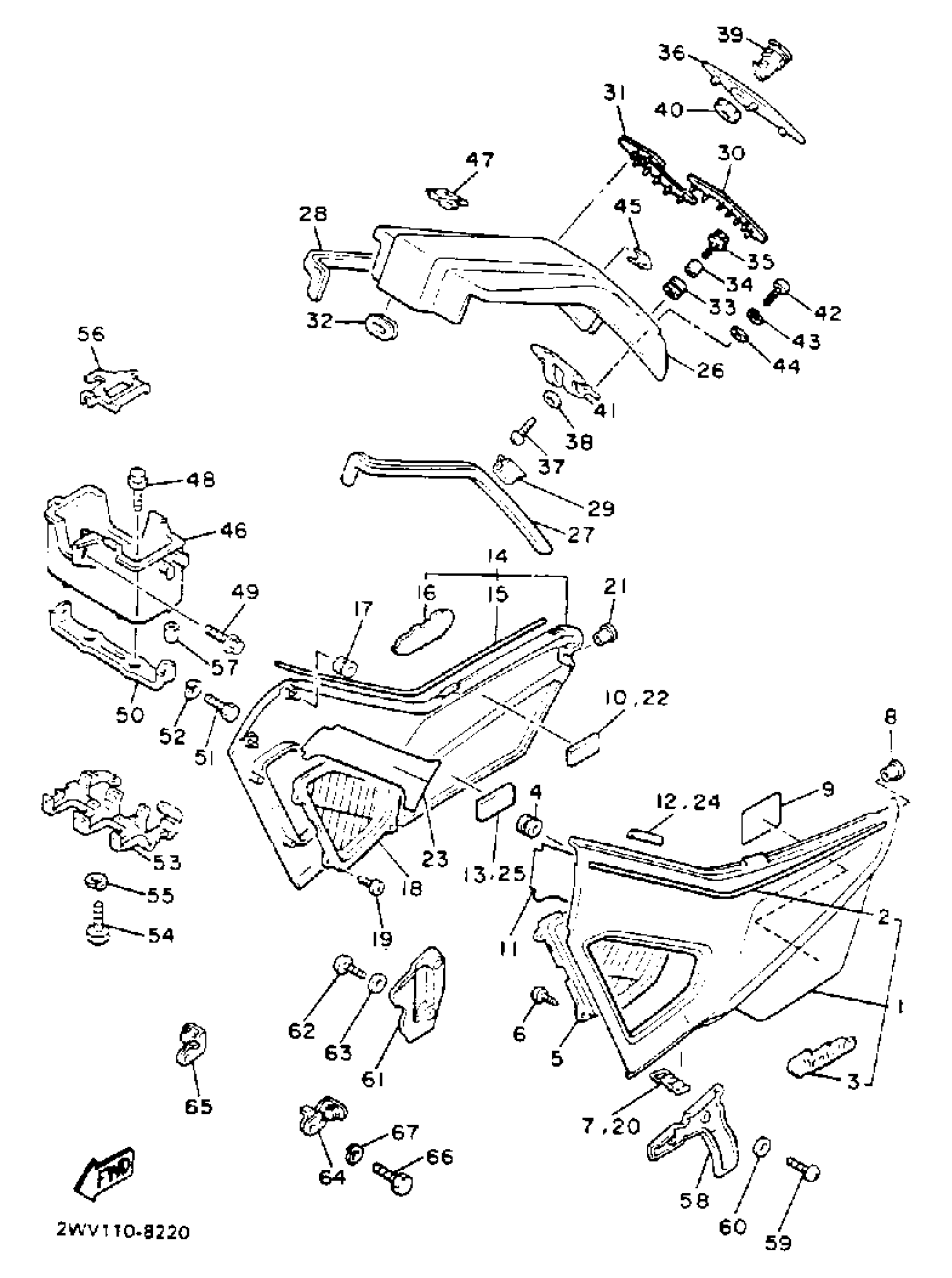

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 SIDE COVER Diagram
#
1
COVER, SIDE 1
41R-Y2171-21-3Y
Unavailable
2
. GRAPHIC
3JJ-2173E-30-00
Unavailable
3
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
5
GRILL,SIDE COVER 1
54K-2171Y-02-00
Unavailable
6
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
7
. BAND
41R-2179E-00-00
Unavailable
8
GROMMET (26H)
90480-12355-00
Unavailable
9
PLATE, EPA CAL 2
3JJ-2179R-40-00
Unavailable
9
PLATE, EPA U49
3JJ-2179V-40-00
Unavailable
11
LINING, side cover 1
26H-2171J-00-00
Unavailable
12
MOLE, side cover 3
26H-2171N-00-00
Unavailable
14
COVER, SIDE 2
41R-Y2172-21-3Y
Unavailable
15
. GRAPHIC
3JJ-2173F-30-00
Unavailable
16
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
18
GRILL, side cover 2
54K-2172Y-02-00
Unavailable
19
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
20
. BAND
41R-2179E-00-00
Unavailable
21
GROMMET (26H)
90480-12355-00
Unavailable
23
LINING, side cover 2
26H-2171K-00-00
Unavailable
24
MOLE, side cover 3
26H-2171N-00-00
Unavailable
26
COVER, TOP
1NL-2171A-00-WW
Unavailable
27
MOLE, side cover 1
26H-2171L-00-00
Unavailable
28
MOLE, side cover 2
26H-2171M-00-00
Unavailable
29
CLIP
90468-03135-00
Unavailable
30
DAMPER, locating 3
26H-2177M-00-00
Unavailable
31
DAMPER, locating 4
26H-2177N-00-00
Unavailable
32
DAMPER
26H-21747-00-00
Unavailable
33
GROMMET (461)
90480-12067-00
Unavailable
34
COLLAR (26H)
90387-053H3-00
Unavailable
35
BOLT, HEXAGON WITH WASHER(353)
90119-05001-00
Unavailable
36
LID
26H-2177E-00-WW
Unavailable
37
SCREW, TAPPING
97707-50610-00
Unavailable
38
. WASHER, PLAIN
92990-05200-00
Unavailable
39
SIDE CVR LOCK ASSEMBLY
54K-21780-01-00
Unavailable
40
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
41
HINGE
26H-21796-01-00
Unavailable
42
SCREW, PAN
98517-05012-00
Unavailable
43
WASHER(3SX)
92907-05100-00
Unavailable
44
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
45
SPRING, plate
26H-2177R-00-00
Unavailable
46
BOX, BATTERY
(26H-2177G-00-00)
Unavailable
47
EMBLEM 2
31M-21782-01-00
Unavailable
48
BOLT, WITH WASHER
90119-06152-00
Unavailable
49
BOLT, WITH WASHER
90119-06226-00
Unavailable
50
BRACKET 3
26H-2172M-01-00
Unavailable
51
BOLT, HEXAGON
97017-08016-00
Unavailable
52
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
53
PLATE, bridge
26H-21243-01-00
Unavailable
54
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
55
WASHER, SPRING
92995-06100-00
Unavailable
56
PLATE
26H-2176E-00-00
Unavailable
57
PLUG, BLIND
16G-13569-00-00
Unavailable
58
COVER,SIDE 3
41R-21731-00-00
Unavailable
59
SCREW, PAN
98517-05012-00
Unavailable
60
WASHER(1RW)
92907-05600-00
Unavailable
61
COVER, side 4
41R-21741-00-00
Unavailable
62
SCREW, PAN
98517-05012-00
Unavailable
63
WASHER(1RW)
92907-05600-00
Unavailable
64
BRACKET, horn
26H-2134K-00-00
Unavailable
65
BRACKET, horn 2
26H-2134L-00-00
Unavailable
66
BOLT, HEXAGON
97017-08016-00
Unavailable
67
WASHER(JN5)
92907-08100-00
Unavailable
