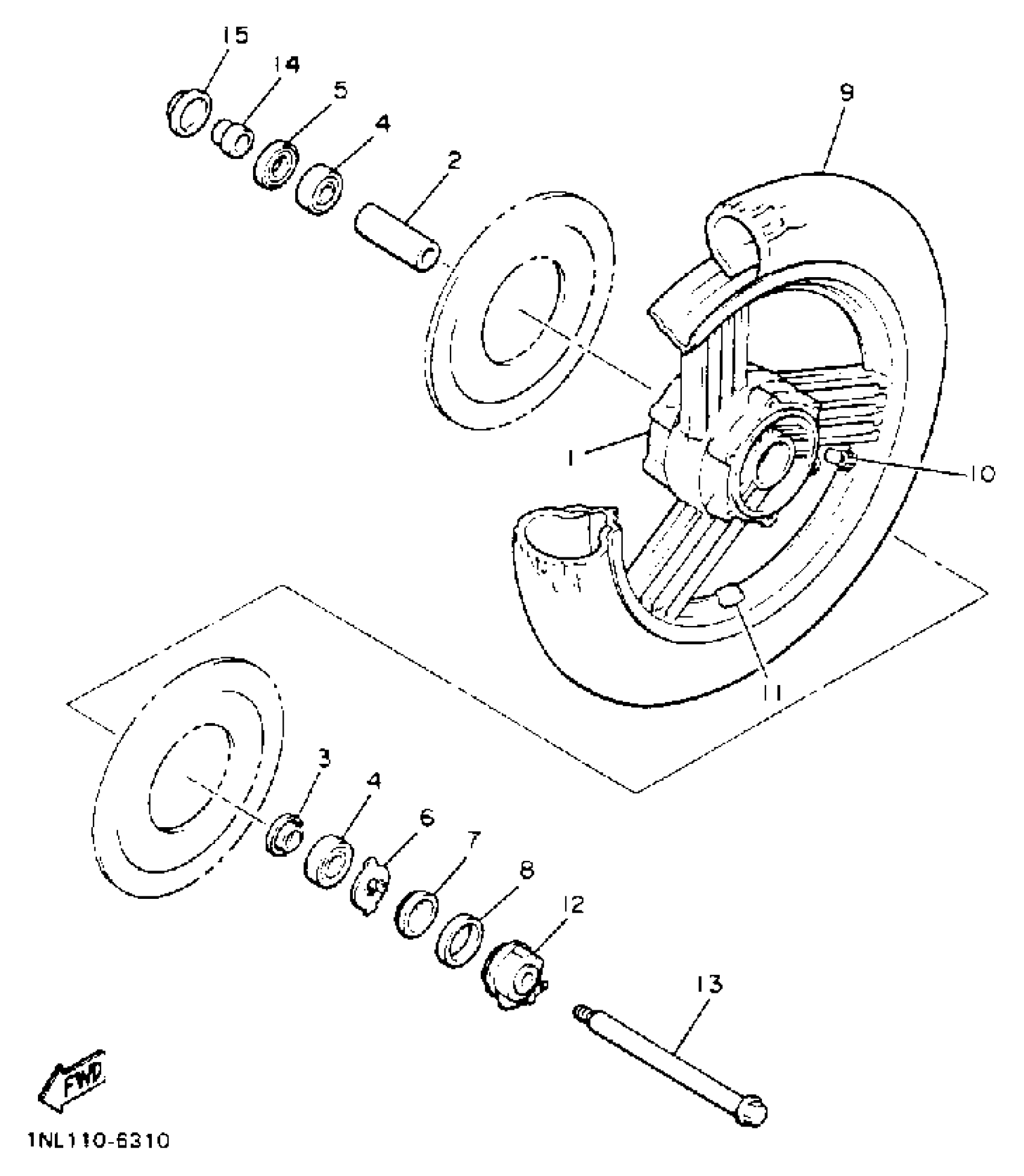

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 FRONT WHEEL Diagram

CAST WHEEL, front

41R-25168-00-35

Unavailable

SPACER

90560-17233-00

Unavailable

FLANGE, SPACER

146-25315-00-00

$7.99

BEARING(4HM)

93306-30317-00

$39.99

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

CLUTCH, METER (371,447)

341-25149-00-00

$7.99

RETAINER, CLUTCH (371,447)

341-25846-00-00

$8.99

OIL SEAL (45X56X6)

93105-45017-00

$14.99

TIRE (MCS 120/90-18 65H)

94112-187G9-00

Unavailable

VALVE, RIM (31A)

93900-00031-00

$16.99

VALVE, RIM (31A)

93900-00031-00

$16.99

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-00-00

$17.49

BALANCER, WHEEL

5MT-25398-00-00

$17.49

GEAR UNIT ASSY

4TR-25190-20-00

$115.99

AXLE, wheel

1NL-25181-00-00

Unavailable

COLLAR

90387-173H2-00

Unavailable

COVER, HUB DUST

341-25118-00-00

Unavailable
