Description

Price

1

DISC, brake (RIGHT)

1NL-25831-00-00

Unavailable

2

DISC, brake (LEFT)

1NL-25831-10-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

4

CALIPER ASY

1NL-25810-02-00

Unavailable

5

PISTON ASSY, CALIPER

1KT-25802-00-00

$193.99

6

CALIPER SEAL KIT

1KT-25803-00-00

$58.99

7

. BRAKE PAD KIT

1NL-W0045-01-00

Unavailable

8

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

9

COVER, DUST

1NL-25836-01-00

$36.99

10

PIN, PAD

3HE-25924-00-00

Unavailable

11

CLIP, PAD PIN

3GM-25925-00-00

$11.99

12

SUPPORT, PAD

1NL-25919-00-00

$24.99

13

CALIPER ASSY (LEFT)

1NL-25810-12-00

Unavailable

14

PISTON ASSY, CALIPER

1NL-W0057-00-00

$210.99

15

CALIPER SEAL KIT

1NL-W0047-00-00

$69.99

16

. BRAKE PAD KIT

1NL-W0045-01-00

Unavailable

17

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

18

COVER, DUST

1NL-25836-01-00

$36.99

19

PIN, PAD

3HE-25924-00-00

Unavailable

20

CLIP, PAD PIN

3GM-25925-00-00

$11.99

21

SUPPORT, PAD

1NL-25919-00-00

$24.99

22

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable

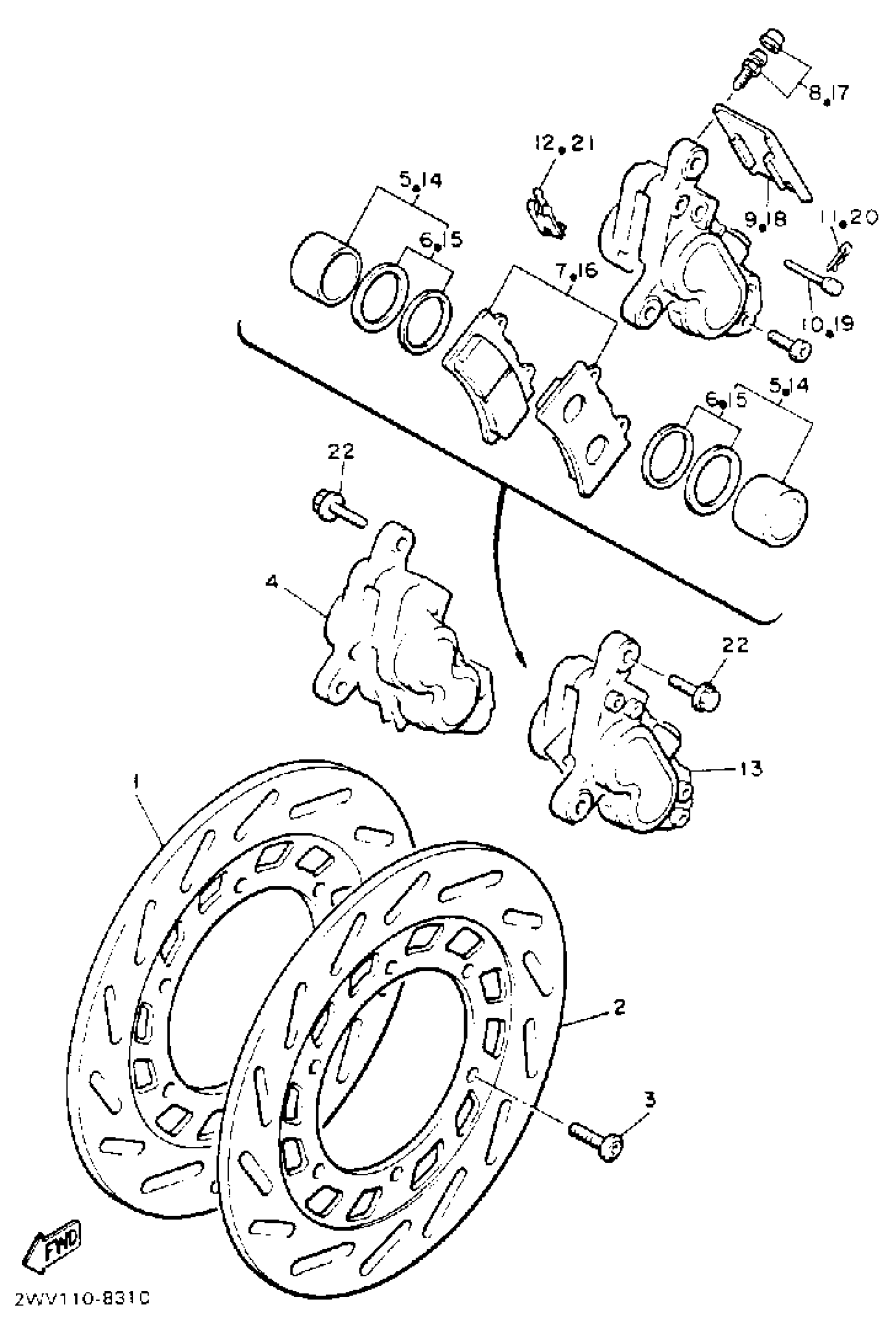

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 FRONT BRAKE CALIPER Diagram

DISC, brake (RIGHT)

DISC, brake (LEFT)

BOLT,HEX. SOCKET BUTTON

CALIPER ASY

PISTON ASSY, CALIPER

CALIPER SEAL KIT

. BRAKE PAD KIT

BLEED SCREW KIT

COVER, DUST

PIN, PAD

CLIP, PAD PIN

SUPPORT, PAD

CALIPER ASSY (LEFT)

PISTON ASSY, CALIPER

CALIPER SEAL KIT

. BRAKE PAD KIT

BLEED SCREW KIT

COVER, DUST

PIN, PAD

CLIP, PAD PIN

SUPPORT, PAD

BOLT, WASHER BASED(3VD)
