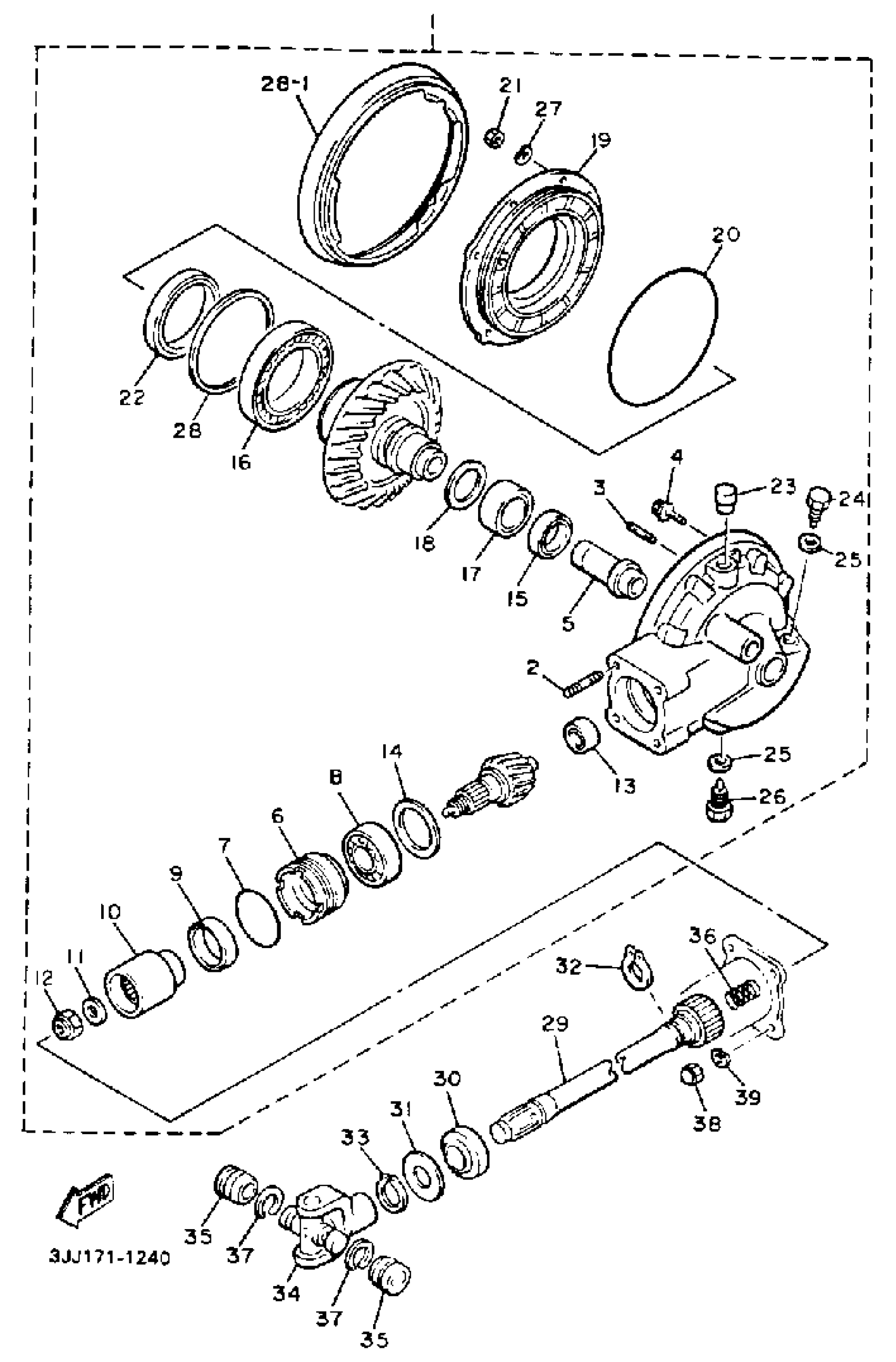

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 DRIVE SHAFT Diagram

#

Description
Price

1

COVER, HOUSING

1FK-46154-00-00

Unavailable

1

RR AXL GR CASE ASY

99999-03076-00

Unavailable

2

BOLT, STUD (5E5)

90116-10361-00

Unavailable

3

BOLT, STUD(2GG)

95617-08620-00

$7.49

4

BOLT, FLANGE(8AB)

95817-10050-00

$7.49

5

COLLAR, GUIDE

1FK-46153-00-00

Unavailable

6

RETAINER, BEARING

4H7-46125-00-00

$62.99

7

O-RING (4H7)

93210-60426-00

$10.49

8

BRG,R-B 6305RB1 62MM 245G KY

93306-30533-00

$137.99

9

OIL SEAL (4H7)

93101-38098-00

$17.99

10

COUPLING, GEAR

4H7-46123-01-00

Unavailable

11

WASHER, PLATE 11J7)

90201-14632-00

Unavailable

12

NUT

90179-14508-00

Unavailable

13

BEARING ASSY

2H7-46102-00-00

$58.99

14

SHIM, THRUST (0.30T)

1J7-17537-Y0-30

$4.47

14

SHIM, THRUST (0.40T)

1J7-17537-Y0-40

Unavailable

14

SHIM, THRUST (0.50T)

1J7-17537-Y0-50

Unavailable

15

OIL SEAL (30X42X7-1J7)

93101-30084-00

Unavailable

16

BRG,R-B 16014C2 110MM 433G KY

93316-01403-00

Unavailable

17

BRG,CYL-CAL ROLLER 80G KY

93311-43729-00

Unavailable

18

WASHER, THRUST

22U-46118-00-12

Unavailable

18

WASHER, THRUST

22U-46118-00-14

Unavailable

18

WASHER, THRUST

22U-46118-00-16

Unavailable

18

WASHER, THRUST

22U-46118-00-18

Unavailable

18

WASHER, THRUST

22U-46118-00-20

Unavailable

19

. HOUSING, BEARING

1FK-46152-01-00

Unavailable

20

O-RING(59V)

93211-54698-00

Unavailable

21

NUT(6L2)

95333-08600-00

Unavailable

22

OIL SEAL (4H7)

93102-70167-00

Unavailable

23

BREATHER COMP.

2H7-17590-00-00

Unavailable

24

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

25

GASKET

214-11198-01-00

Unavailable

26

PLUG, STRAIGHT SCREW

90340-14004-00

Unavailable

27

WASHER(6TA)

92907-08700-00

Unavailable

28

SHIM, RING GEAR (0.25T)

1J7-46117-Y0-25

Unavailable

28

SHIM, RING GEAR (0.30T)

1J7-46117-Y0-30

Unavailable

28

. SHIM, RING GEAR (035T)

1J7-46117-Y0-35

Unavailable

28

SHIM, RING GEAR (0.40T)

1J7-46117-Y0-40

Unavailable

28

SHIM, RING GEAR (0.50T)

1J7-46117-Y0-50

Unavailable

29

SHAFT, drive

1NL-46172-00-00

Unavailable

30

OIL SEAL(1FK)

93108-43013-00

Unavailable

31

WASHER, PLATE (4H7)

90201-231A2-00

Unavailable

32

CIRCLIP (4H7)

93410-23056-00

Unavailable

33

CIRCLIP (537)

93410-22039-00

Unavailable

34

CROSS JOINT COMP.

4X7-46180-00-00

Unavailable

35

BEARING(2HR)

93399-99926-00

Unavailable

36

SPRING, COMPRESSION (2H7)

90501-16491-00

Unavailable

37

CIRCLIP (4X7)

93440-20088-00

Unavailable

38

NUT, CROWN(2GG)

90176-10075-00

Unavailable

39

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable
