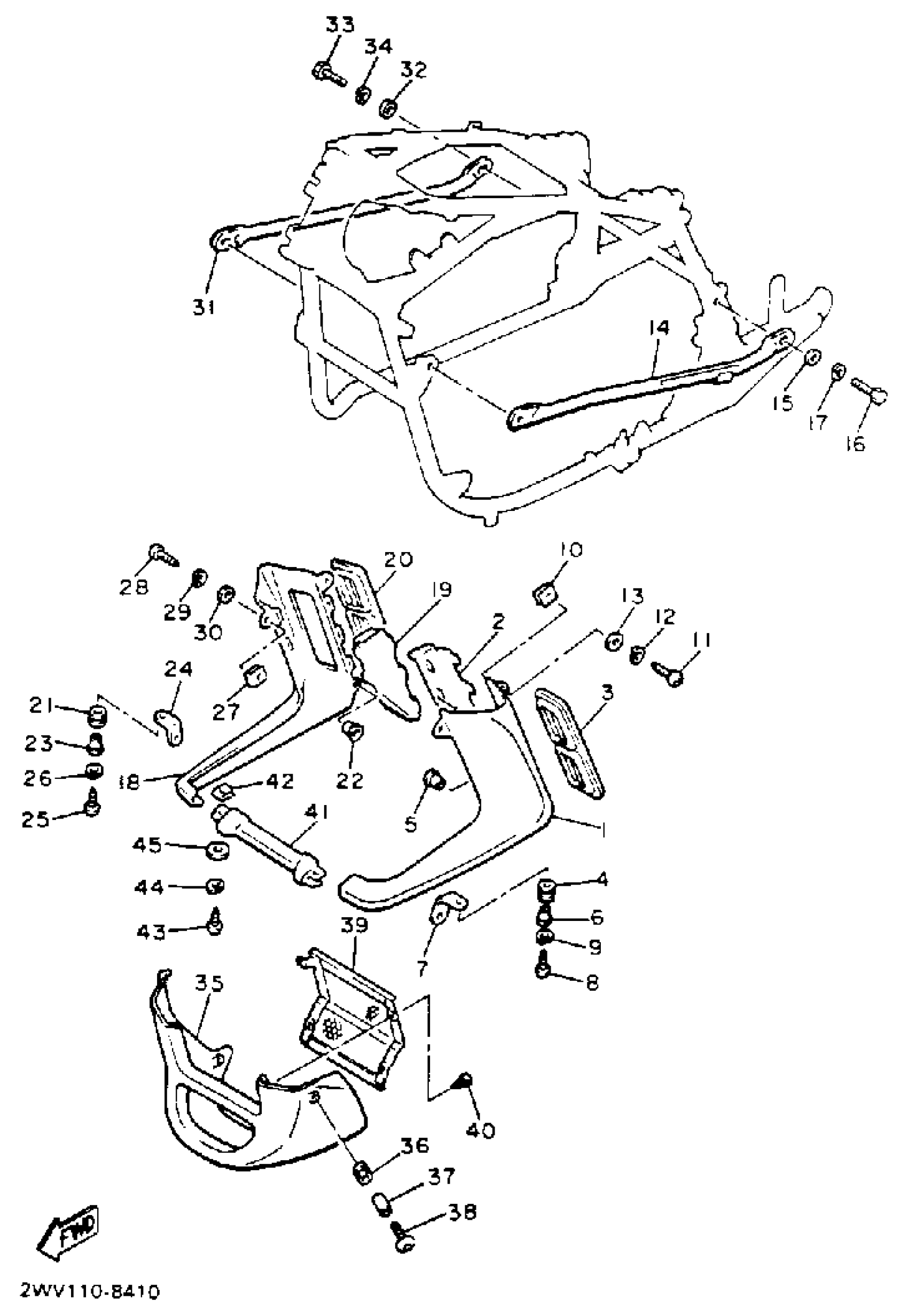

Yamaha XVZ13DEC (VENTURE ROYALE CA) 1993 COWLING 3 Diagram
#
1
BODY, FRONT LOWER 1
26H-2835J-01-8E
Unavailable
2
PANEL, inner 4
26H-2836N-02-00
Unavailable
3
GRILL, air outlet 3
26H-2837X-00-00
Unavailable
5
GROMMET
90480-08374-00
Unavailable
7
BRACKET 22
26H-2833X-02-00
Unavailable
9
WASHER, SPRING
92995-06100-00
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
14
. STAY 2
41R-28357-00-00
Unavailable
14
STAY 2
59K-28357-00-00
Unavailable
15
WASHER, PLAIN
92990-08200-00
Unavailable
16
BOLT, HEXAGON
97013-08020-00
Unavailable
17
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
18
BODY, FRONT LOWER 2
26H-2835K-01-8E
Unavailable
19
PANEL, inner 5
26H-2836R-01-00
Unavailable
20
GRILL, air outlet 4
26H-2837Y-00-00
Unavailable
22
GROMMET
90480-08371-00
Unavailable
24
BRACKET 23
26H-2833Y-02-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
31
. STAY 3
41R-28358-00-00
Unavailable
32
WASHER, PLAIN
92990-08200-00
Unavailable
33
BOLT, HEXAGON
97013-08020-00
Unavailable
34
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
35
COVER, LOWER
1NL-28385-00-8E
Unavailable
36
GROMMET (462)
90480-13018-00
Unavailable
37
COLLAR(47X)
90387-060G7-00
Unavailable
38
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
39
COVER
1NL-28365-00-00
Unavailable
40
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
41
FIN
26H-2835M-00-8E
Unavailable
43
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
44
WASHER, SPRING
92907-06100-00
Unavailable
45
WASHER(6TA)
92907-06600-00
Unavailable
