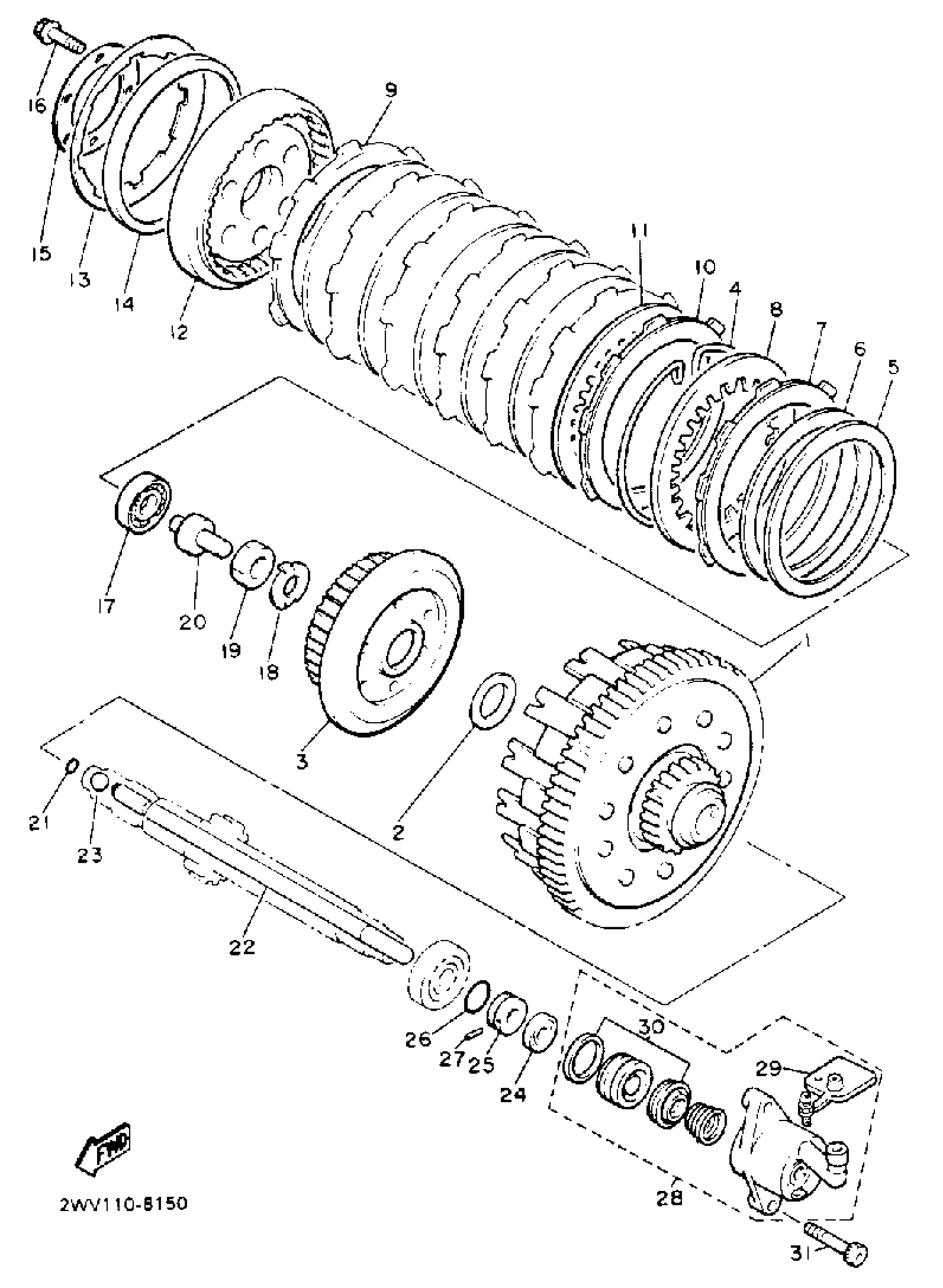

Yamaha XVZ13DDC (VENTURE ROYALE CA) 1992 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

99999-02924-00

Unavailable

2

PLATE, THRUST 1

26H-16154-00-00

Unavailable

3

BOSS, CLUTCH

1FK-16371-00-00

Unavailable

4

RING, CLUTCH BOSS

26H-16385-00-00

$7.18

5

PLATE, SEAT

26H-16384-00-00

$24.21

6

SPRING, CLUTCH BOSS

1FK-16383-00-00

$44.46

7

PLATE, FRICTION

26H-16321-01-00

$15.86

8

PLATE, CLUTCH 1

26H-16324-10-00

$9.74

9

PLATE, FRICTION 3

26H-16307-01-00

$18.70

10

PLATE, FRICTION 3

26H-16307-01-00

$18.70

11

PLATE, CLUTCH 1

26H-16324-10-00

$9.74

12

PLATE, PRESSURE 1

1FK-16351-00-00

$78.26

13

SPRING, CLUTCH 2

1FK-16334-00-00

$124.93

14

HOUSING, SPRING

1FK-16335-00-00

$27.23

15

PLATE, PRESSURE 2

1FK-16352-00-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

BEARING(2JN)

93306-00315-00

Unavailable

18

WASHER, LOCK (26H)

90215-25218-00

Unavailable

19

NUT (26H)

90170-20323-00

Unavailable

20

ROD, PUSH 1

36Y-16356-00-00

Unavailable

21

O-RING (26H)

93210-06632-00

Unavailable

22

ROD, PUSH 2

4NK-16357-00-00

Unavailable

23

BALL (498)

93511-32027-00

Unavailable

24

OIL SEAL(12E)

93109-08061-00

Unavailable

25

GUIDE,PUSH ROD

26H-Y1639-00-00

Unavailable

26

O-RING (1L9)

93210-18322-00

Unavailable

27

PIN, DOWEL

93603-07073-00

Unavailable

28

PUSH LEVER COMP.

1FK-16381-11-00

Unavailable

29

BLEED SCREW KIT

1NL-W0048-00-00

Unavailable

30

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD (4H7

90110-06035-00

Unavailable
