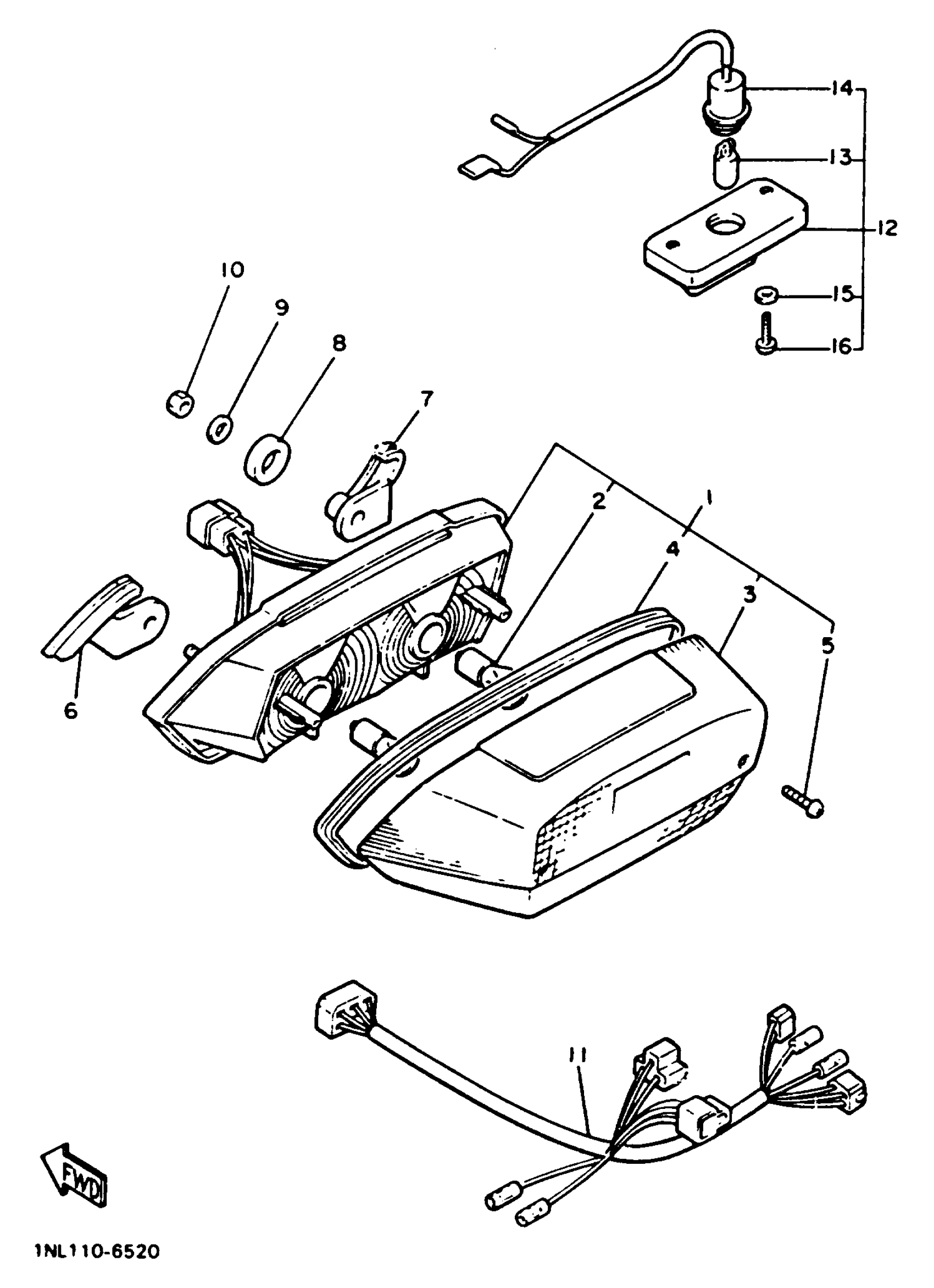

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS''Y

26H-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

. LENS, taillight

26H-84721-60-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

SCREW, LENS FITTING

3Y1-84524-00-00

$2.06

6

DAMPER, tail 1

26H-84736-00-00

Unavailable

7

DAMPER, tail 2

26H-84737-00-00

Unavailable

8

DAMPER

26H-84553-00-00

Unavailable

9

WASHER PLATE 248217570000

90201-06074-00

$5.86

10

NUT, HEXAGON

95380-06600-00

$4.11

11

CORD, taillight

1NL-84717-00-00

Unavailable

12

LIGHT, accessory

1NL-84770-00-00

Unavailable

13

BULB

4SV-84347-00-00

$5.99

14

. CORD ASS''Y

1N-L8473-50-00

Unavailable

15

. WASHER, plate

90-20104-6K-00

Unavailable

16

SCREW, PAN HEAD

98507-04018-00

Unavailable
