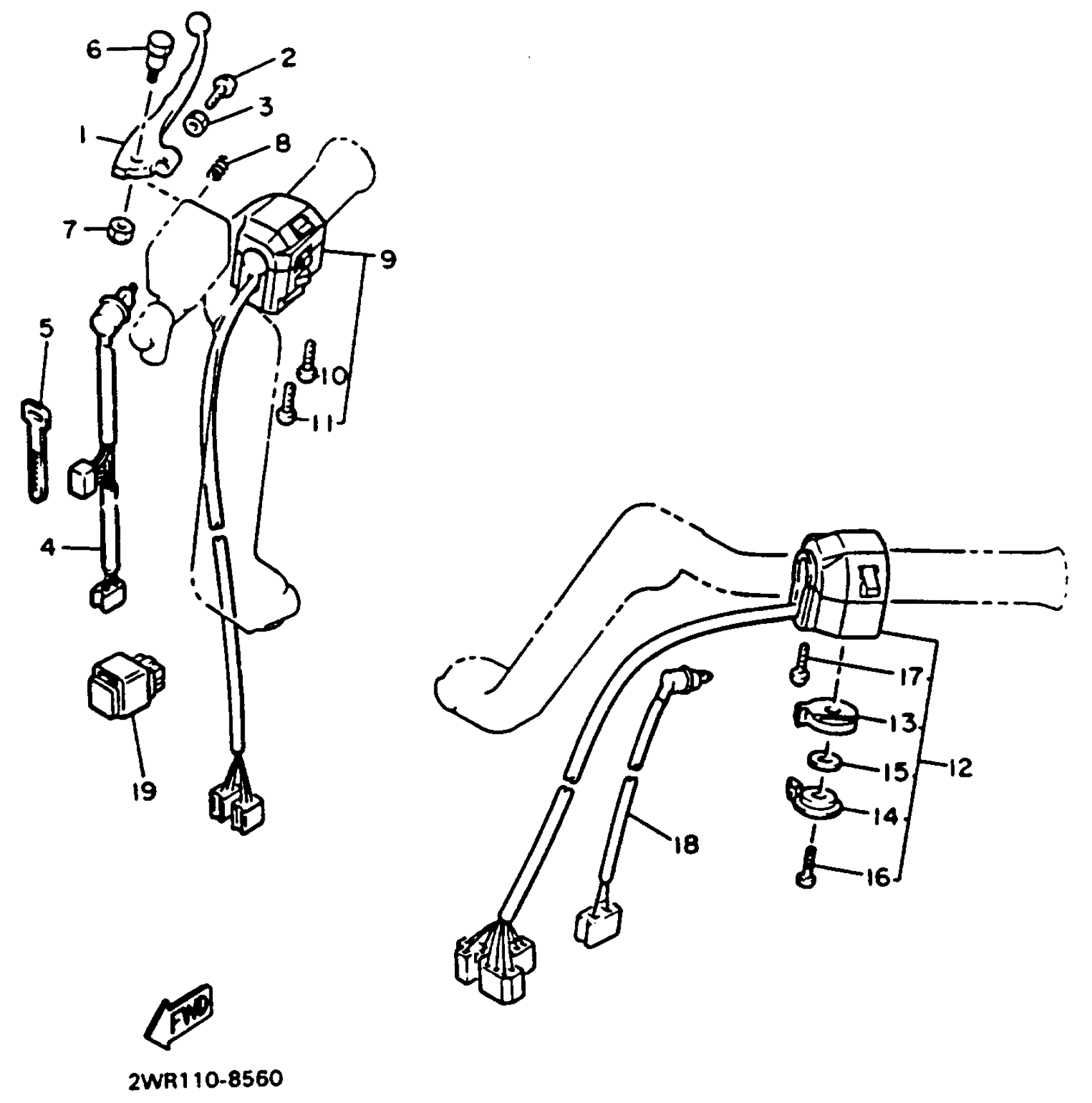

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER 2 (26H-83922-01)

26H-83922-10-00

Unavailable

2

SCREW (2L0)

90149-06131-00

$8.49

3

NUT HEXAGON 306839270000

90170-06010-00

$8.49

4

FRONT STOP SWITCH ASSY (2WR-83980-00)

2WR-83980-01-00

Unavailable

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

BOLT (4L0)

90109-06577-00

$5.60

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

SPRING, COMPRESSION (2H7)

90501-10510-00

Unavailable

9

SWITCH, HANDLE 4

1NL-83972-50-00

Unavailable

10

SCREW, PAN

98507-05040-00

$8.49

11

. SCREW, PAN HEAD

98506-05060-00

Unavailable

12

SWITCH, HANDLE 4

1NL-83972-00-00

Unavailable

13

COVER, STARTER

10M-83942-00-00

Unavailable

14

LEVER, STARTER

10M-83941-00-00

Unavailable

15

WASHER (357)

90209-10131-00

$9.49

16

SCREW, PAN

98517-06008-00

Unavailable

17

SCREW, PAN

98507-05035-00

Unavailable

18

SWITCH (41V-82917-00)

41V-82917-01-00

Unavailable

19

RELAY ASSY

25G-81950-02-00

Unavailable
