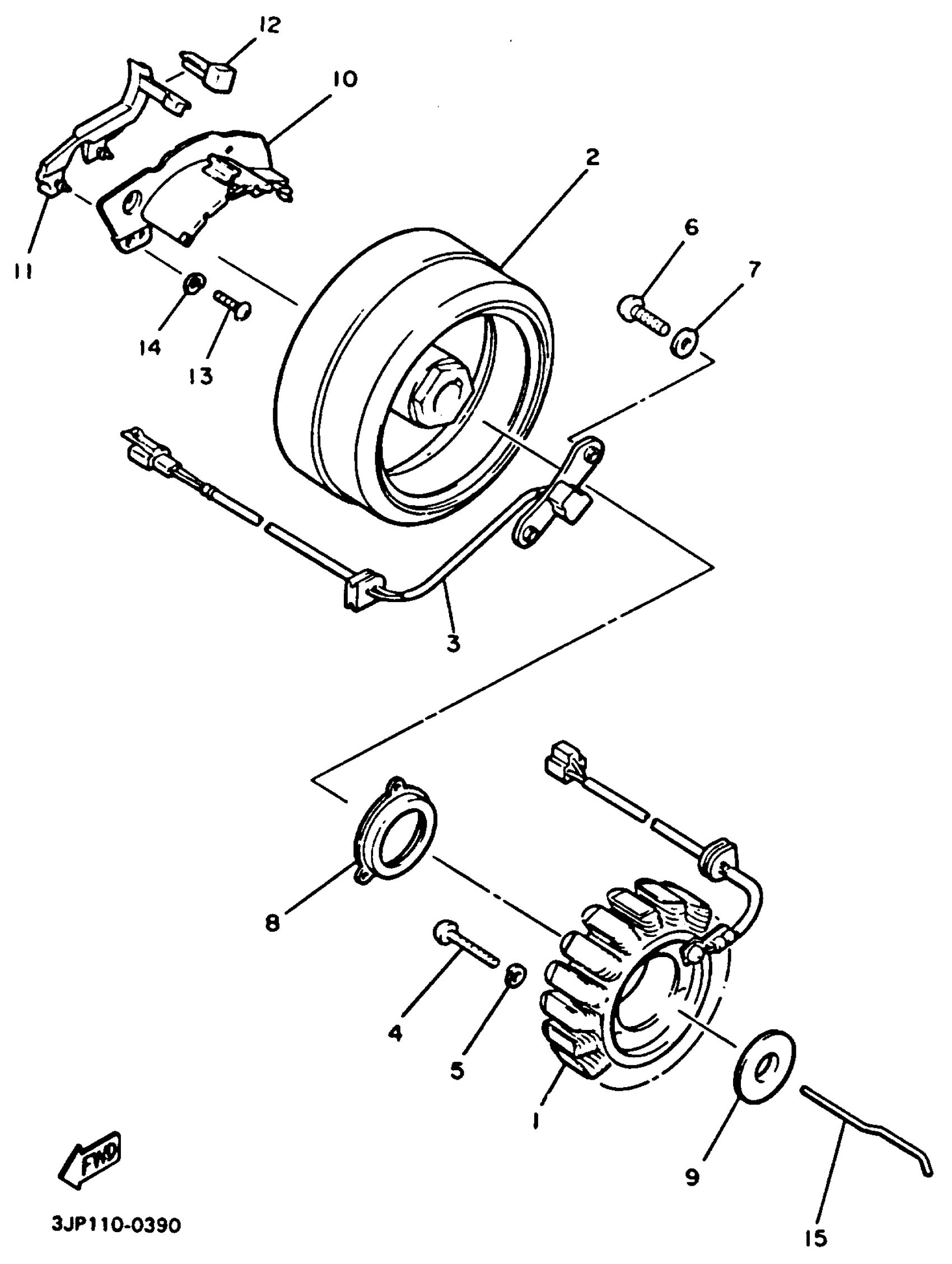

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 GENERATOR Diagram
#
Description
Price
1
STATOR ASS''Y
3JJ-81410-00-00
Unavailable
2
ROTOR ASS''Y
3JJ-81450-00-00
Unavailable
3
PICK-UP ASSY
3UF-81670-00-00
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
10
SEPARATOR, oil
[1F-K1535-80-00
Unavailable
12
SEAL, PROTECTOR
1FK-15494-00-00
Unavailable
13
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
