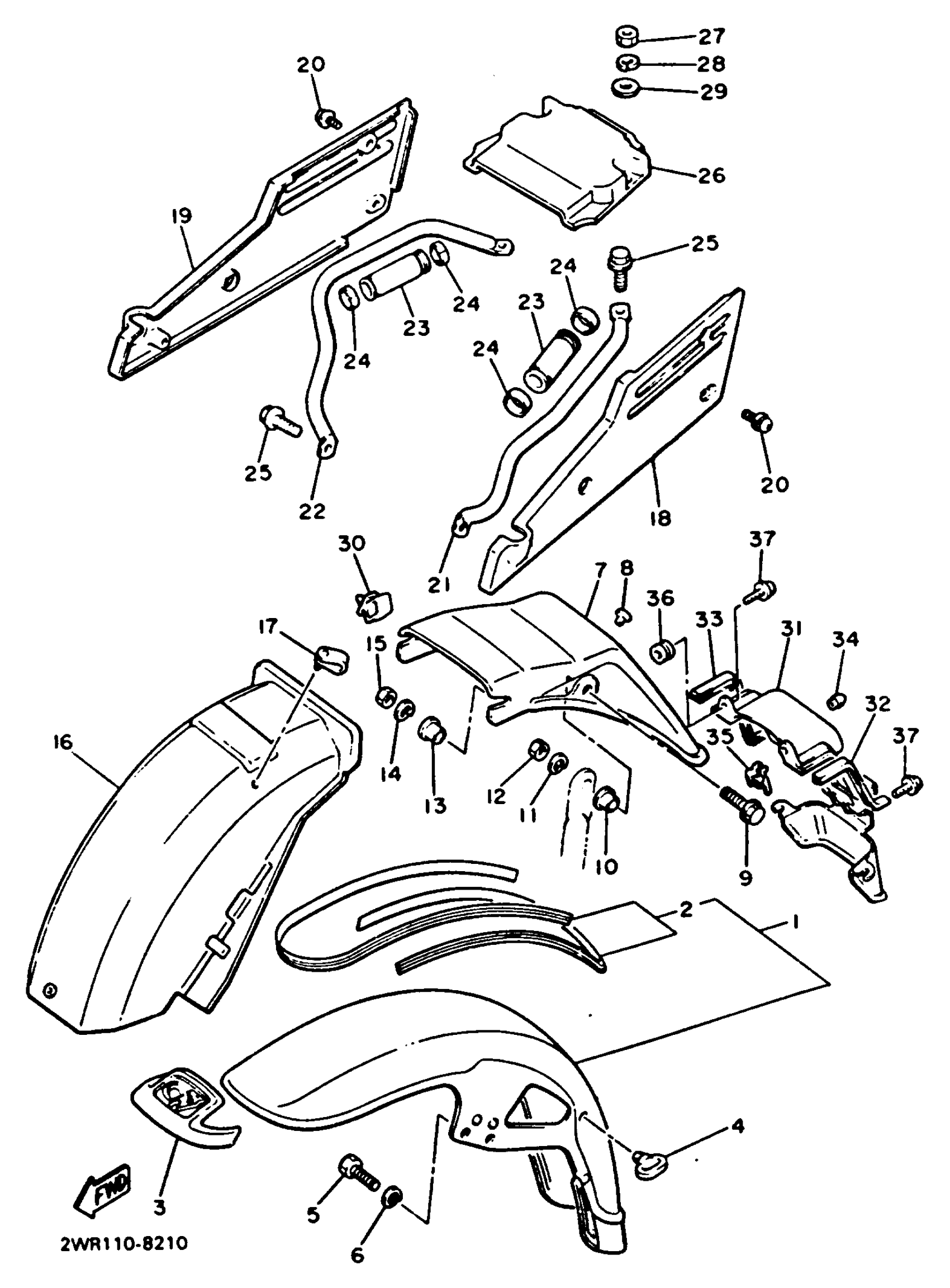

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 FENDER Diagram
#
1
FRONT FENDER COMP
3JJ-W2151-00-3Y
Unavailable
1
FRONT FENDER COMP
3JJ-W2151-00-4Y
Unavailable
2
. GRAPHIC SET, front fender (GRACEFUL MAROON)
3JJ-21570-10-00
Unavailable
2
. GRAPHIC SET, front fender (NEW BLACK BLUE)
3JJ-21570-20-00
Unavailable
3
MASCOT
3JJ-21577-00-00
Unavailable
7
FENDER, rear
1NL-21611-00-00
Unavailable
10
COLLAR
90387-08564-00
Unavailable
14
WASHER, SPRING
92995-06100-00
Unavailable
15
NUT, HEXAGON
95380-06600-00
Unavailable
16
GUARD, mud
26H-21629-00-00
Unavailable
17
CLAMP (2H7)
90464-12027-00
Unavailable
18
COVER, rear fender 1
1NL-2163A-00-00
Unavailable
19
COVER, rear fender 2
1NL-2163E-00-00
Unavailable
20
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
21
STAY, rear
1NL-21644-01-00
Unavailable
22
STAY, rear
1NL-21645-01-00
Unavailable
23
GRIP 1
1NL-2164A-00-00
Unavailable
24
BAND
1NL-21646-00-00
Unavailable
25
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
26
COVER, rear fender 3
26H-2163F-01-00
Unavailable
27
NUT (J17)
95380-06800-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
WASHER, PLATE (8H9)
90201-06727-00
Unavailable
30
CLAMP (1J7)
90464-16025-00
Unavailable
31
FLAP
1NL-21621-01-00
Unavailable
32
MOULDING
1NL-21694-00-00
Unavailable
33
MOULDING
1NL-21695-00-00
Unavailable
34
PLUG
90338-07018-00
Unavailable
35
NUT, rear fender
1NL-21635-00-00
Unavailable
36
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
37
SCREW, WITH WASHER(35R)
90159-06093-00
Unavailable
