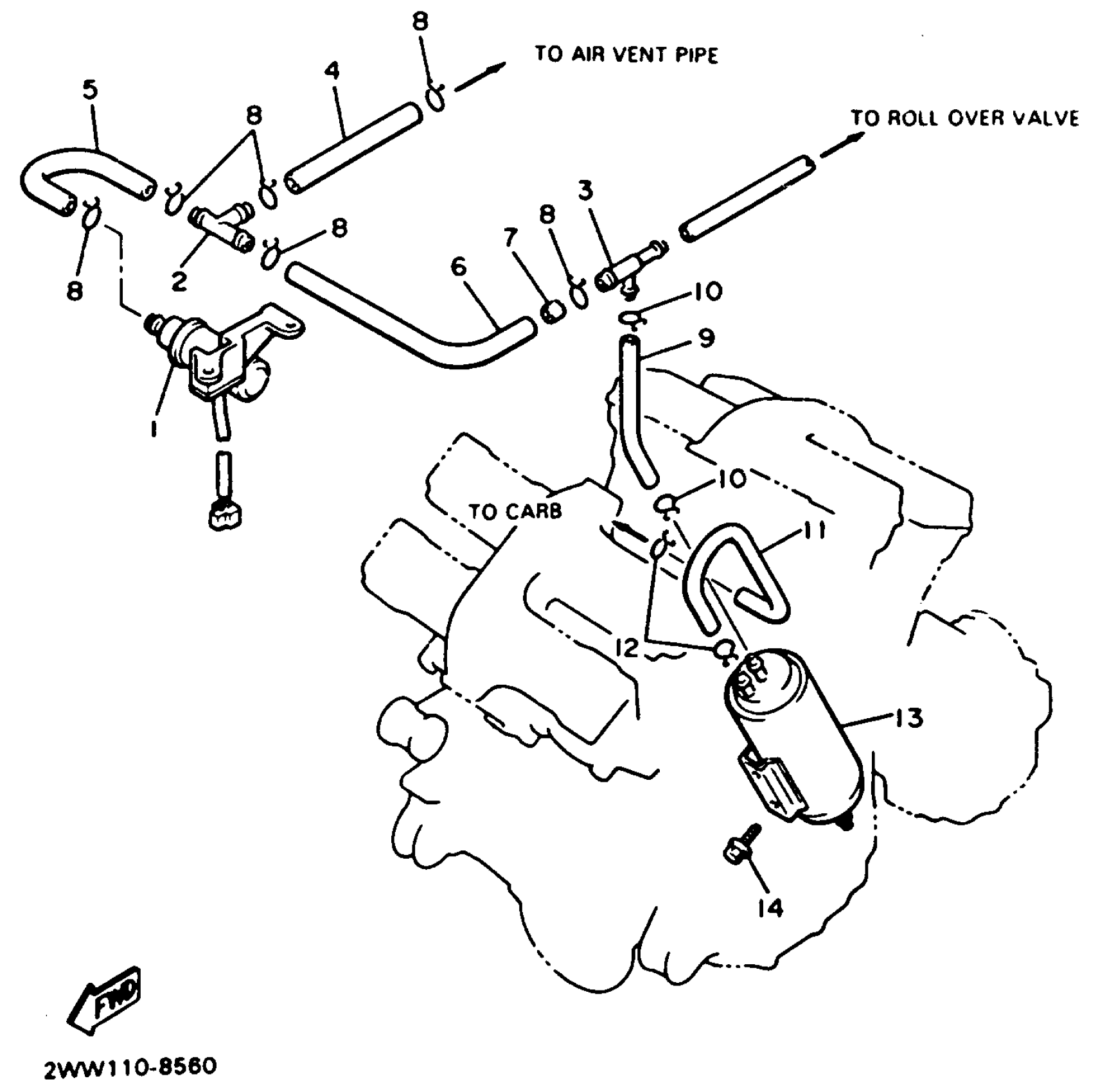

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 EMISSION CONTROL DEVICE CALIFORNIA MODEL ONLY Diagram

#

Description

Price

1

VALVE, outer vent control

[1U-N1489-50-0]

Unavailable

2

WAY 3

90413-11025-00

Unavailable

3

WAY 3

90413-11026-00

Unavailable

4

HOSE

90445-135E2-00

Unavailable

5

PIPE 2

[1U-N1487-20-00

Unavailable

6

PIPE 3

[1U-N1487-30-00

Unavailable

7

NOZZLE 1

[1U-N1513-80-00

Unavailable

8

CLIP(6M6)

90467-13M13-00

Unavailable

9

HOSE (L420)

90445-092K1-00

$12.49

10

CLIP

90467-090A2-00

$4.41

11

PIPE 3

[59-K2431-30-00

Unavailable

12

CLIP

90467-100A1-00

$7.49

13

CANISTER ASSY

4BE-24170-00-00

Unavailable

14

BOLT, FLANGE

95817-06010-00

$4.73
