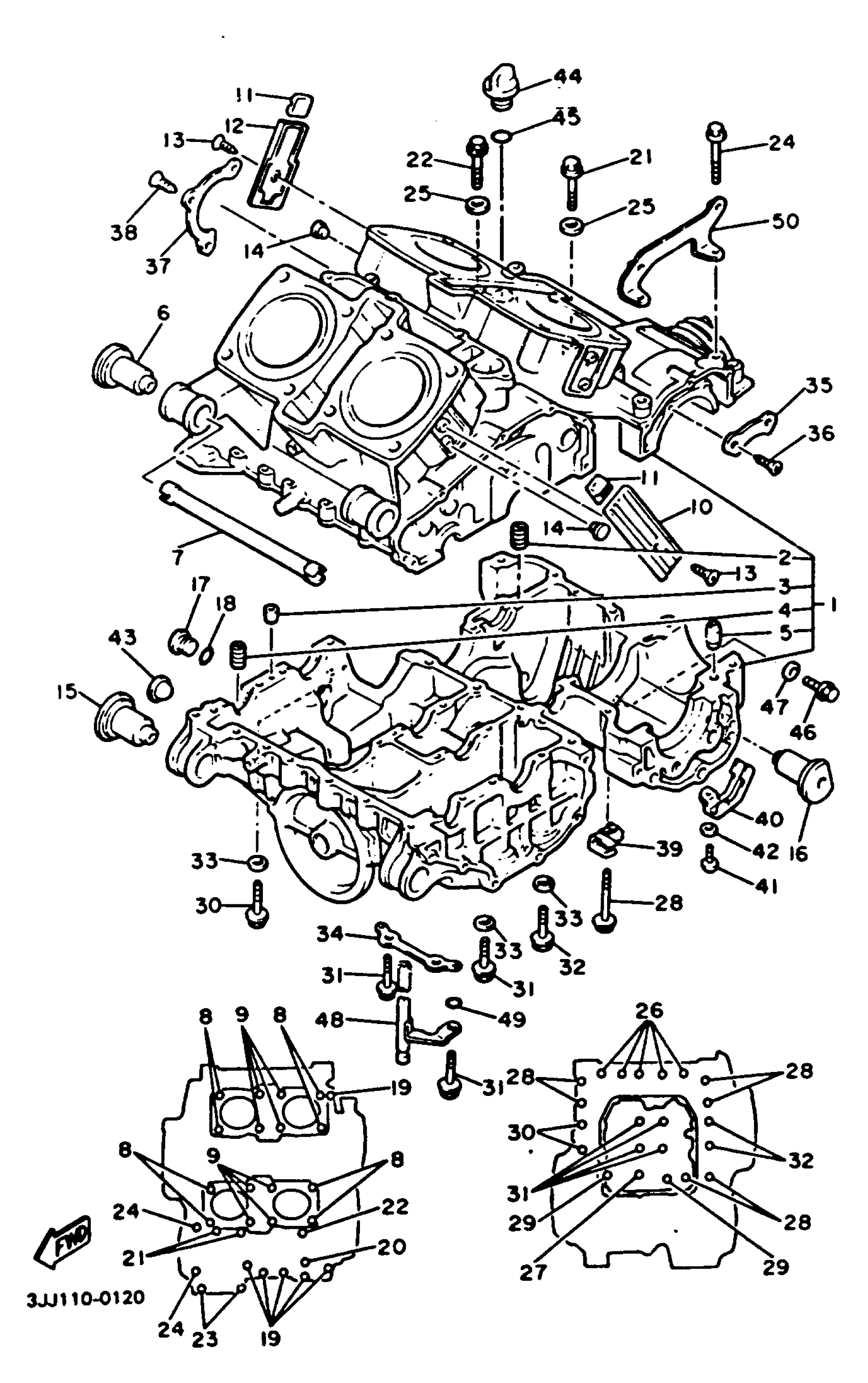

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 CRANKCASE Diagram
#
1
CRANKCASE ASS''Y
1NL-15100-00-00
Unavailable
3
. NOZZLE 2
[26-H1514-80-00
Unavailable
7
SPACER, engine mount
[26-H1531-70-0]
Unavailable
10
COVER, cap
26H-15417-01-00
Unavailable
11
DAMPER, engine mount 2
26H-15326-00-00
Unavailable
12
COVER, cap
26H-15417-01-00
Unavailable
13
SCREW, FLAT HEAD
98780-06016-00
Unavailable
16
DAMPER, ENGINE MOUNT 2
1AA-15326-00-00
Unavailable
17
PLUG
4H7-15189-00-00
Unavailable
18
O-RING (25G)
93210-20573-00
Unavailable
19
BOLT, FLANGE
95817-06045-00
Unavailable
20
BOLT, FLANGE
95817-06070-00
Unavailable
21
BOLT, FLANGE
95817-06090-00
Unavailable
22
BOLT, FLANGE
95817-06095-00
Unavailable
23
BOLT, FLANGE
95814-08045-00
Unavailable
24
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
25
GASKET (4V2)
90430-06166-00
Unavailable
26
BOLT, FLANGE
95817-08050-00
Unavailable
27
BOLT, FLANGE
95814-08065-00
Unavailable
28
BOLT, FLANGE(JF2)
95817-08080-00
Unavailable
29
BOLT, FLANGE(8BT)
95817-08095-00
Unavailable
30
BOLT, WASHER BASED
90105-10247-00
Unavailable
31
BOLT, WASHER BASED (26H)
90105-10248-00
Unavailable
32
BOLT, WASHER BASED (26H)
90105-10249-00
Unavailable
33
WASHER PLATE 256111740000
90201-10131-00
Unavailable
34
PLATE
26H-15113-00-00
Unavailable
35
PLATE, BEARING COVER
26H-15381-00-00
Unavailable
36
SCREW
90149-08013-00
Unavailable
37
PLATE, BEARING COVER
26H-15383-00-00
Unavailable
38
SCREW, FLAT HEAD(4EM)
98707-06016-00
Unavailable
39
CLAMP (26H)
90465-08233-00
Unavailable
40
CLAMP
[90-46508-26-30
Unavailable
41
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
42
WASHER, PLAIN (646)
92990-06600-00
Unavailable
42
WASHER, PLAIN (646)
92990-06600-00
Unavailable
43
GAUGE, LEVEL
2H7-15361-00-00
Unavailable
44
PLUG, OIL
2H7-15363-00-00
Unavailable
45
O-RING(1KT)
93210-27778-00
Unavailable
46
BOLT,FLANGE
95811-12016-00
Unavailable
47
WASHER, PLATE
90201-12790-00
Unavailable
48
PIPE, BREATHER
26H-15373-00-00
Unavailable
49
O-RING(26H)
93210-06667-00
Unavailable
50
BRACKET
26H-15199-00-00
Unavailable
