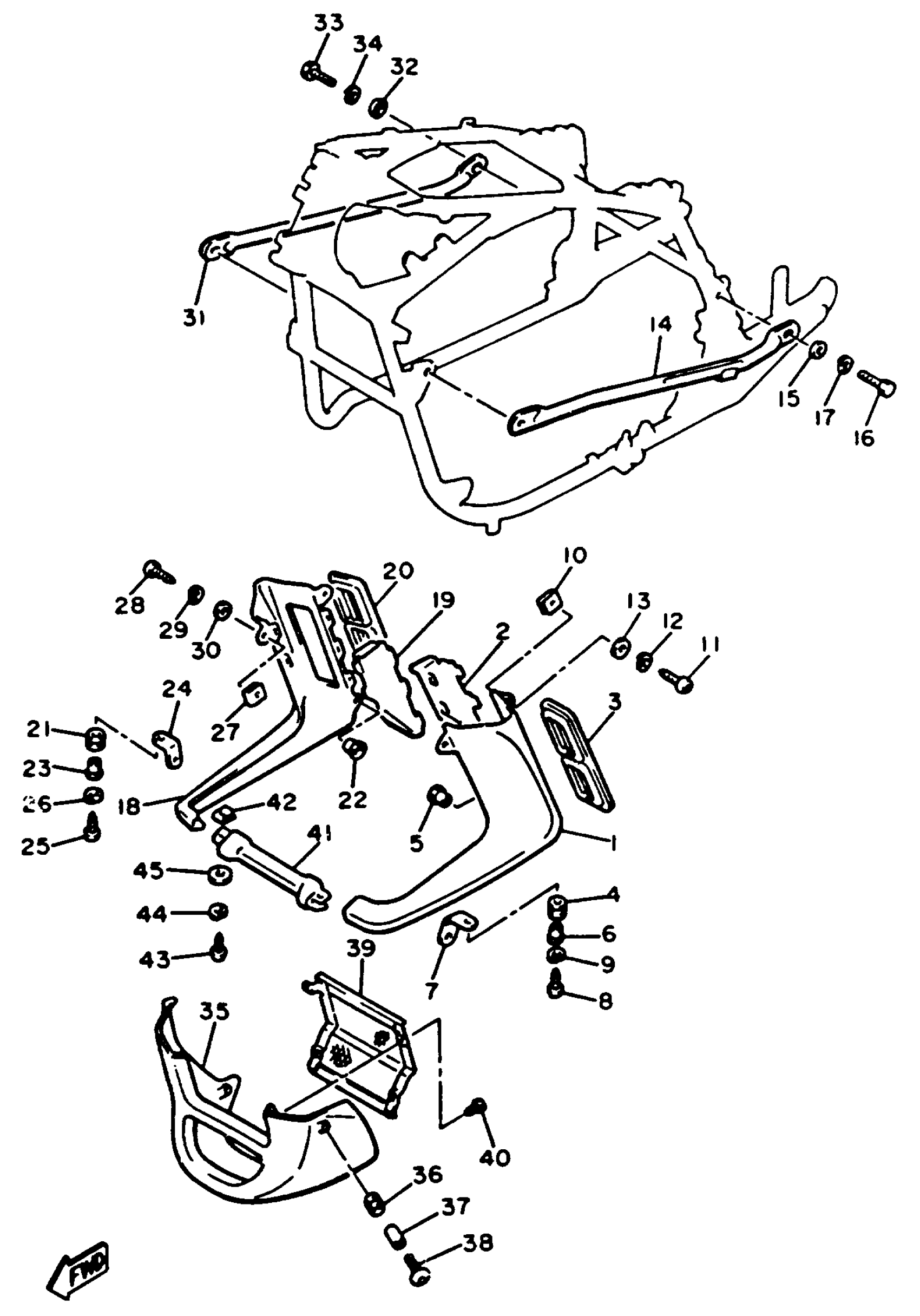

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 COWLING 3 Diagram

#

Description
Price

1

BODY, front lower 1

26H-2835J-01-KM

Unavailable

1

BODY, front lower 1

26H-2835J-01-R0

Unavailable

2

PANEL, inner 4

26H-2836N-02-00

Unavailable

3

GRILL, air outlet 3

26H-2837X-00-00

Unavailable

4

GROMMET (1E6)

90480-15058-00

$5.75

5

GROMMET

90480-08374-00

Unavailable

6

COLLAR (4N0)

90387-071E0-00

$5.73

7

BRACKET 22

26H-2833X-02-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$4.89

9

WASHER, SPRING

92995-06100-00

$2.95

10

NUT, SPRING (26H)

90183-06023-00

$6.94

11

SCREW, PAN

98507-06014-00

$5.76

12

WASHER, SPRING

92995-06100-00

$2.95

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

. STAY 2

41R-28357-00-00

Unavailable

15

WASHER, PLAIN

92990-08200-00

$2.36

16

BOLT, HEXAGON

97013-08020-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BODY, front lower 2

26H-2835K-01-KM

Unavailable

18

BODY, front lower 2

26H-2835K-01-R0

Unavailable

19

PANEL, inner 5

26H-2836R-01-00

Unavailable

20

GRILL, air outlet 4

26H-2837Y-00-00

Unavailable

21

GROMMET (1E6)

90480-15058-00

$5.75

22

GROMMET

90480-08371-00

Unavailable

23

COLLAR (4N0)

90387-071E0-00

$5.73

24

BRACKET 23

26H-2833Y-02-00

Unavailable

25

SCREW PAN HEAD

98580-06020-00

$4.89

26

WASHER, SPRING

92995-06100-00

$2.95

27

NUT, SPRING (26H)

90183-06023-00

$6.94

28

SCREW, PAN

98507-06014-00

$5.76

29

WASHER, SPRING

92995-06100-00

$2.95

30

WASHER, PLAIN (646)

92990-06600-00

$1.84

31

. STAY 3

41R-28358-00-00

Unavailable

32

WASHER, PLAIN

92990-08200-00

$2.36

33

BOLT, HEXAGON

97013-08020-00

Unavailable

34

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

35

COVER, lower

1NL-28385-00-KM

Unavailable

35

COVER, lower

1NL-28385-00-R0

Unavailable

36

GROMMET (462)

90480-13018-00

Unavailable

37

COLLAR(47X)

90387-060G7-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

39

COVER

1NL-28365-00-00

Unavailable

40

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

41

FIN

26H-2835M-00-KM

Unavailable

41

FIN

26H-2835M-00-R0

Unavailable

42

NUT, SPRING (26H)

90183-06023-00

$6.94

43

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

44

WASHER, SPRING

92907-06100-00

Unavailable

45

WASHER(6TA)

92907-06600-00

Unavailable
