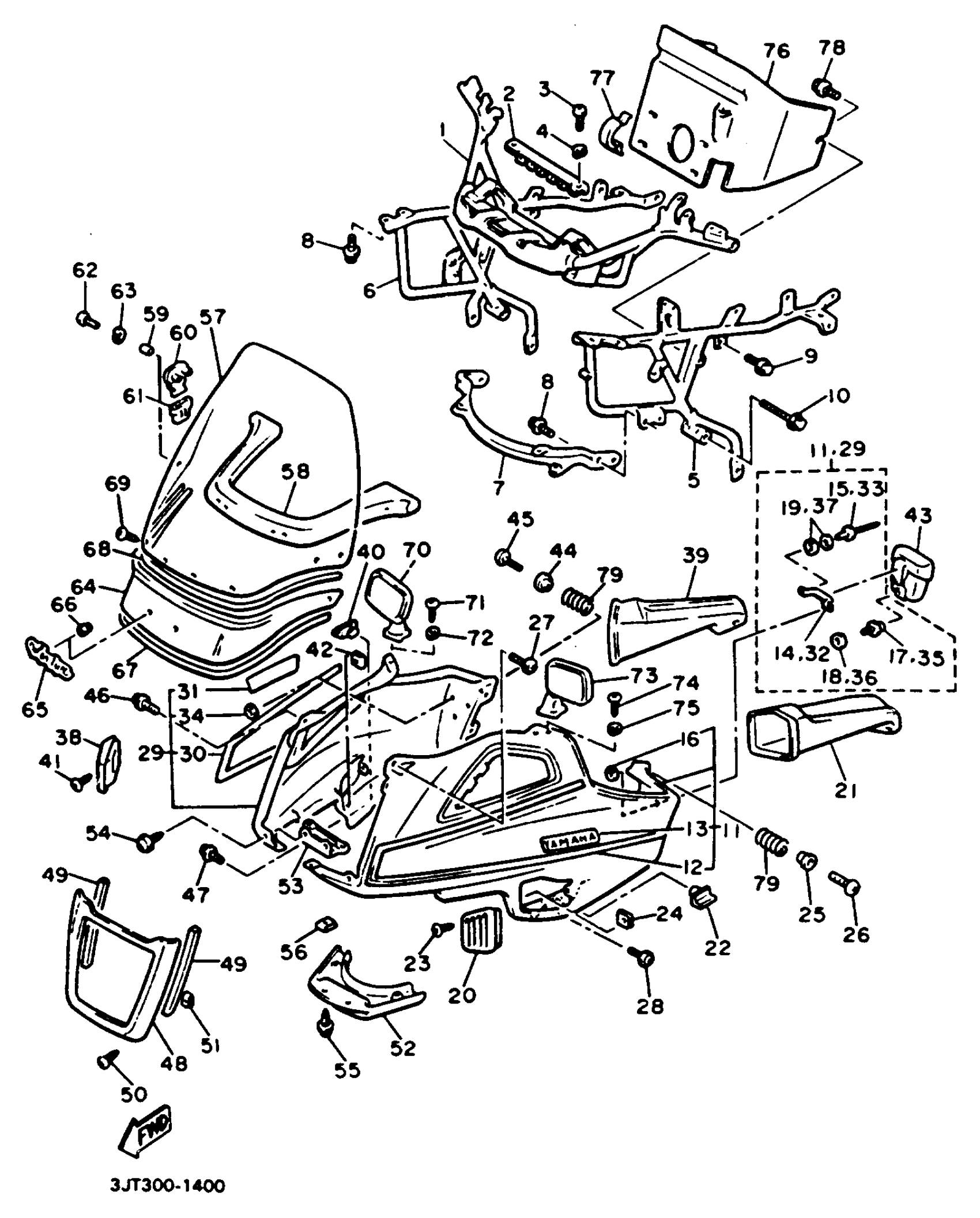

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 COWLING 1 Diagram
#
1
STAY 1
1NL-28356-00-00
Unavailable
2
BRACKET, relay
41R-2134E-01-00
Unavailable
5
STAY, leg shield
1NL-28322-00-00
Unavailable
6
STAY, leg shield
1NL-28332-00-00
Unavailable
7
STAY 2
26H-28359-01-00
Unavailable
11
BODY, front upper 1
59G-Y283G-01-XA
Unavailable
11
BODY, front upper 1
59G-Y283G-11-XE
Unavailable
12
. GRAPHIC 1
3JJ-28391-10-00
Unavailable
12
. GRAPHIC 1 (NEW BLACK BLUE)
3JJ-28391-20-00
Unavailable
13
EMBLEM
26H-28328-00-00
Unavailable
14
. BRACKET, pouch
59G-28283-01-00
Unavailable
15
RIVET, BLIND
90267-32019-00
Unavailable
16
WASHER,PLAIN
92990-03200-00
Unavailable
17
HOOK
59J-28379-00-00
Unavailable
18
WASHER, PLATE
90201-04027-00
Unavailable
19
WASHER (22F)
90201-033H3-00
Unavailable
20
GRILL, air intake 1
26H-2837N-01-33
Unavailable
21
DUCT 3
26H-2838T-01-00
Unavailable
22
DAMPER
26H-28372-00-00
Unavailable
23
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
24
NUT, SPRING (26H)
90183-04027-00
Unavailable
25
COLLAR
90387-06107-00
Unavailable
26
SCREW, PAN HEAD
98580-06016-00
Unavailable
27
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
28
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
29
BODY, front upper 2
59G-Y283H-01-XA
Unavailable
29
BODY, front upper 2
59G-Y283H-11-XE
Unavailable
30
. GRAPHIC 2
3JJ-28392-10-00
Unavailable
30
. GRAPHIC 2 (NEW BLACK BLUE)
3JJ-28392-20-00
Unavailable
31
EMBLEM
26H-28338-00-00
Unavailable
32
. BRACKET, pouch
59G-28283-01-00
Unavailable
33
RIVET, BLIND
90267-32019-00
Unavailable
34
WASHER,PLAIN
92990-03200-00
Unavailable
35
HOOK
59J-28379-00-00
Unavailable
36
WASHER, PLATE
90201-04027-00
Unavailable
37
WASHER (22F)
90201-033H3-00
Unavailable
38
GRILL, air intake 2
26H-2837R-01-33
Unavailable
39
DUCT 4
26H-2838U-01-00
Unavailable
40
DAMPER
26H-28372-00-00
Unavailable
41
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
42
NUT, SPRING (26H)
90183-04027-00
Unavailable
43
POUCH, COWLING
3JJ-28281-00-00
Unavailable
44
COLLAR
90387-06107-00
Unavailable
45
SCREW, PAN
98507-06014-00
Unavailable
46
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
47
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
48
RIM, headlight
1NL-2835A-00-KM
Unavailable
48
RIM, headlight
1NL-2835A-00-R0
Unavailable
49
PAD
1NL-28378-00-00
Unavailable
50
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
51
NUT, SPRING (26H)
90183-04027-00
Unavailable
52
GRILL, air intake 3
26H-2837T-00-KM
Unavailable
52
GRILL, air intake 3
26H-2837T-00-R0
Unavailable
53
PLATE
1NL-28336-00-00
Unavailable
54
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
55
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
56
NUT, SPRING
90183-051A0-00
Unavailable
57
SCREEN (41R-2837U-00)
ABA-26H01-11-00
Unavailable
58
MOLE 1
26H-28345-00-00
Unavailable
59
COLLAR
90387-056J6-00
Unavailable
60
PLATE, front
1NL-28361-00-00
Unavailable
61
DAMPER, SIDE COVER
2N4-21717-00-00
Unavailable
62
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
63
WASHER(3SX)
92907-05100-00
Unavailable
64
MOLE 2
1NL-28346-00-00
Unavailable
65
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
66
GROMMET(1KT)
90480-01445-00
Unavailable
67
MOLD 3
1NL-28347-01-00
Unavailable
68
NOLE 4
1NL-28348-01-00
Unavailable
69
SCREW (26H)
90149-05185-00
Unavailable
70
REAR VIEW MIRROR ASSY (RIGHT)
26H-26290-20-00
Unavailable
71
SCREW, PAN HEAD
98517-05020-00
Unavailable
72
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
73
REAR VIEW MIRROR ASSY (LEFT)
26H-26290-30-00
Unavailable
74
SCREW, PAN HEAD
98517-05020-00
Unavailable
75
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
76
PANEL, inner 3
41V-2836M-00-00
Unavailable
77
BRACKET
1NL-28366-00-00
Unavailable
78
BOLT, WITH WASHER(55K)
90119-06117-00
Unavailable
79
SPRING, compression
90501-142E6-00
Unavailable
