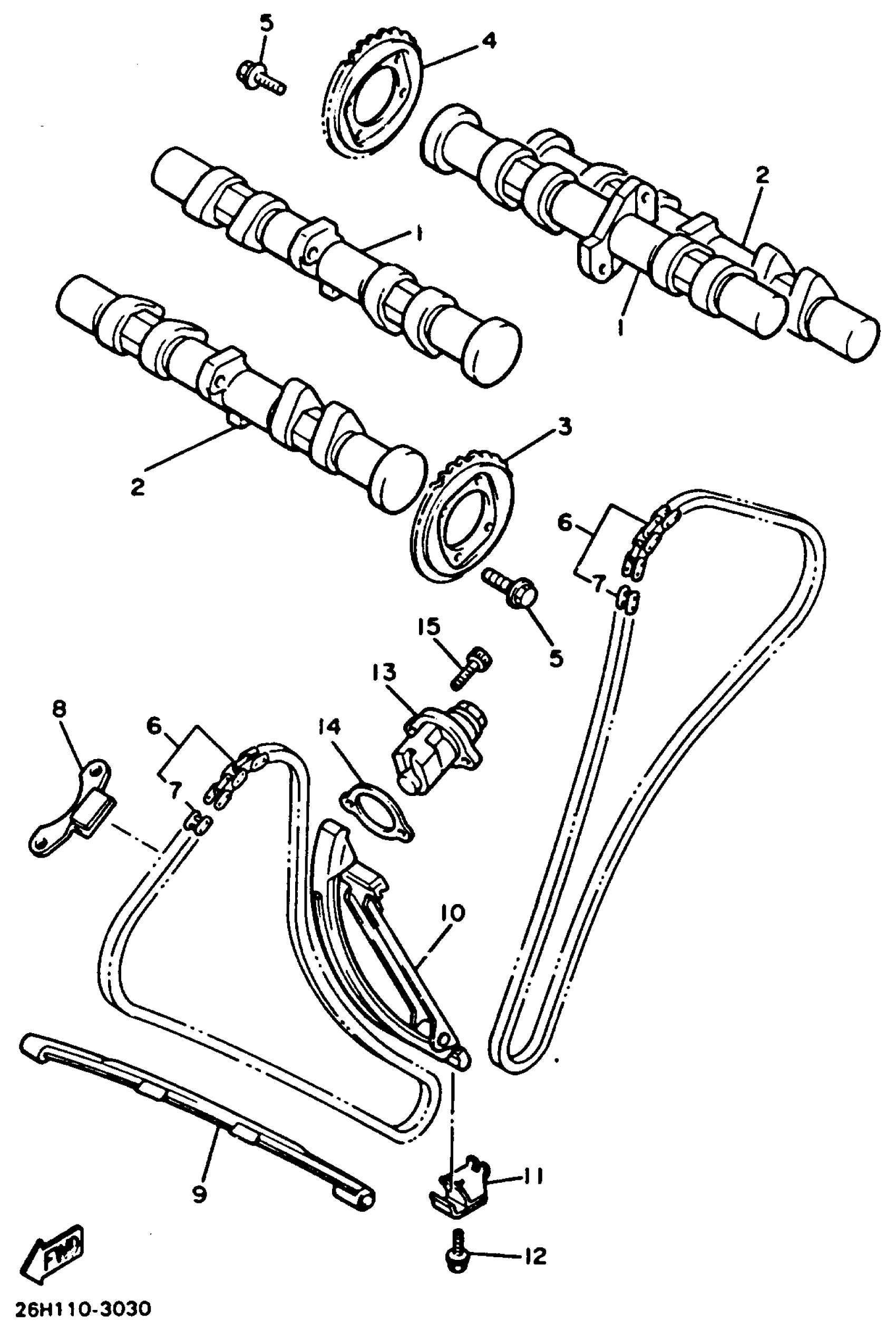

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 CAMSHAFT CHAIN Diagram

CAMSHAFT 1

1NL-12171-00-00

Unavailable

CAMSHAFT 1

2WT-12171-00-00

Unavailable

CAMSHAFT 2

1NL-12181-00-00

Unavailable

SPROCKET, CAM CHAIN

26H-12177-01-00

Unavailable

SPROCKET, CAM CHAIN

26H-12176-02-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

9Y58A-81117-00

Unavailable

JOINT, CHAIN (583)

94600-02001-00

$7.99

GUIDE, STOPPER 2

26H-12241-00-00

Unavailable

DAMPER, CHAIN 1

26H-12251-00-00

Unavailable

DAMPER, CHAIN 2

26H-12252-00-00

Unavailable

PLATE, GUIDE STOPPER 1

26H-12233-00-00

Unavailable

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

TENSIONER ASSY

26H-12210-03-00

$219.99

GASKET, TENSIONER CASE

3JP-12213-01-00

$7.99

BOLT,SOCKET HEAD

91314-06020-00

Unavailable
