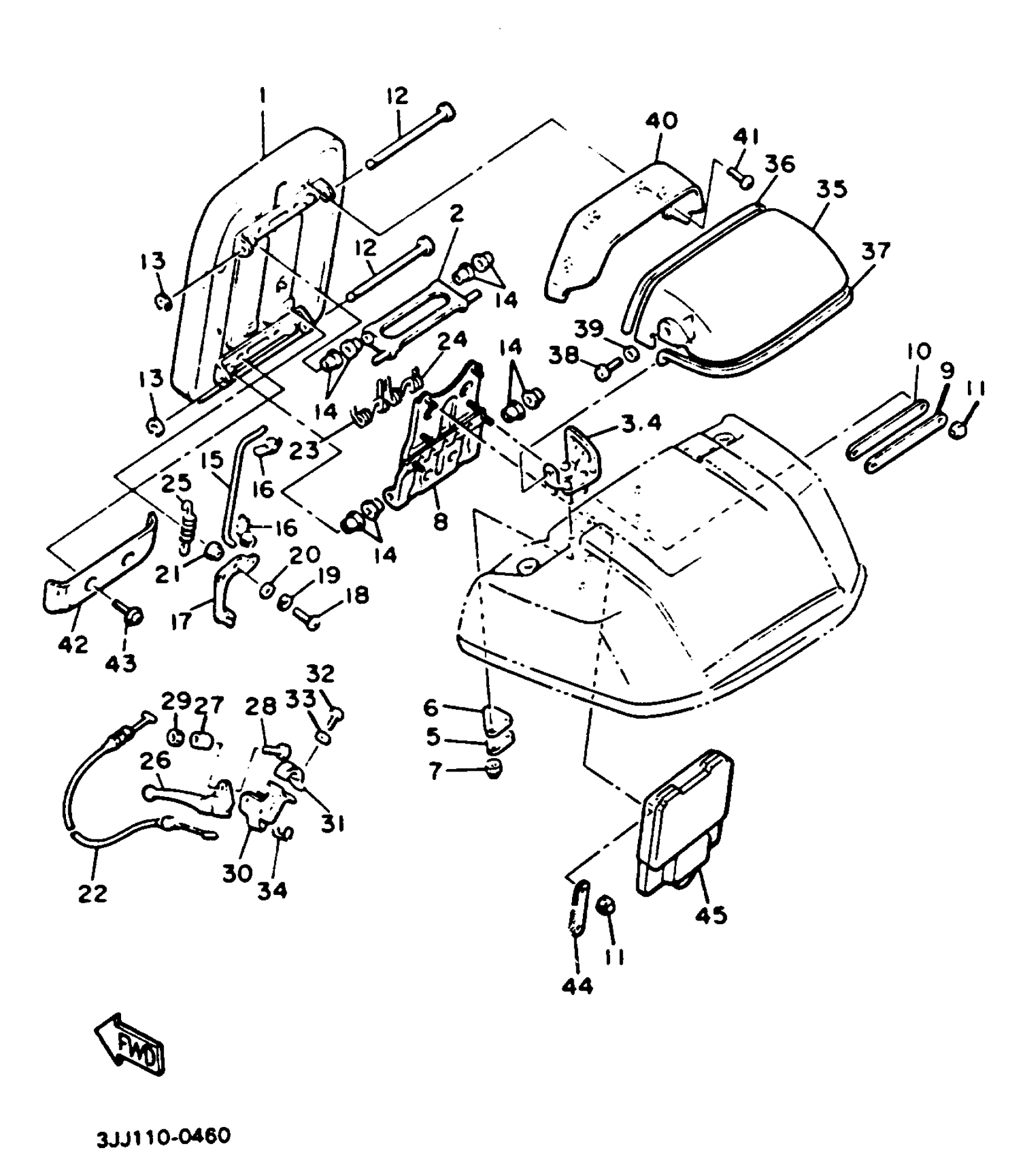

Yamaha XVZ13DBC (VENTURE ROYALE CA) 1991 BACK REST Diagram
#
1
BACK REST ASSY
3JJ-2840F-00-00
Unavailable
2
HINGE 1
1NL-28444-00-00
Unavailable
3
BRACKET, hinge
1NL-2846M-01-00
Unavailable
4
BRACKET, hinge 2
1NL-2846N-01-00
Unavailable
5
PLATE 5
1NL-2847H-00-00
Unavailable
6
PLATE, rubber 7
1NL-2847J-00-00
Unavailable
8
BRACKET 4
3JJ-28477-00-00
Unavailable
9
PLATE 6
1NL-2849H-00-00
Unavailable
10
PLATE, rubber 6
1NL-2846J-00-00
Unavailable
12
SHAFT 1
1NL-2844M-00-00
Unavailable
15
ROD
1NL-28478-00-00
Unavailable
16
JOINT, cage
1NL-28424-00-00
Unavailable
17
LEVER
1NL-2841A-01-00
Unavailable
18
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
19
WASHER(3SX)
92907-05100-00
Unavailable
20
WASHER(1RW)
92907-05600-00
Unavailable
21
WASHER (3R8)
90209-06187-00
Unavailable
22
WIRE, adjusting
1NL-2843M-00-00
Unavailable
23
SPRING
1NL-28489-00-00
Unavailable
24
SPRING 2
1NL-2848A-00-00
Unavailable
25
SPRING 214-14683-01
90506-12029-00
Unavailable
26
LEVER, DECOMPRESSION
583-83981-00-00
Unavailable
27
COLLAR, LEVER 1
5BE-83913-00-00
Unavailable
28
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
30
HOLDER, lever upper 1
1NL-82912-00-00
Unavailable
31
HOLDER, lever lower 1
1NL-82913-00-00
Unavailable
32
SCREW, PAN
98507-06010-00
Unavailable
33
WASHER(6TA)
92907-06600-00
Unavailable
34
STOPPER
1KH-26257-00-00
Unavailable
35
COVER 1
1NL-2842M-00-KM
Unavailable
35
COVER 1
1NL-2842M-00-R0
Unavailable
36
MOULDING 10
1NL-2844U-00-00
Unavailable
37
MOULDING 10
1NL-2844U-00-00
Unavailable
38
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
39
. WASHER, PLATE
90202-05088-00
Unavailable
40
COVER 2
1NL-2842N-00-00
Unavailable
41
SCREW, OVAL HEAD TAPPING
97780-40112-00
Unavailable
42
COVER 3
1NL-2843J-00-00
Unavailable
43
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
44
PLATE 6
3JJ-2849H-00-00
Unavailable
45
VANITY MIRROR ASS''Y
1NL-2840U-00-00
Unavailable
