1990 Yamaha Venture Royale CA (XVZ13DAC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Yamaha Venture Royale CA (XVZ13DAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

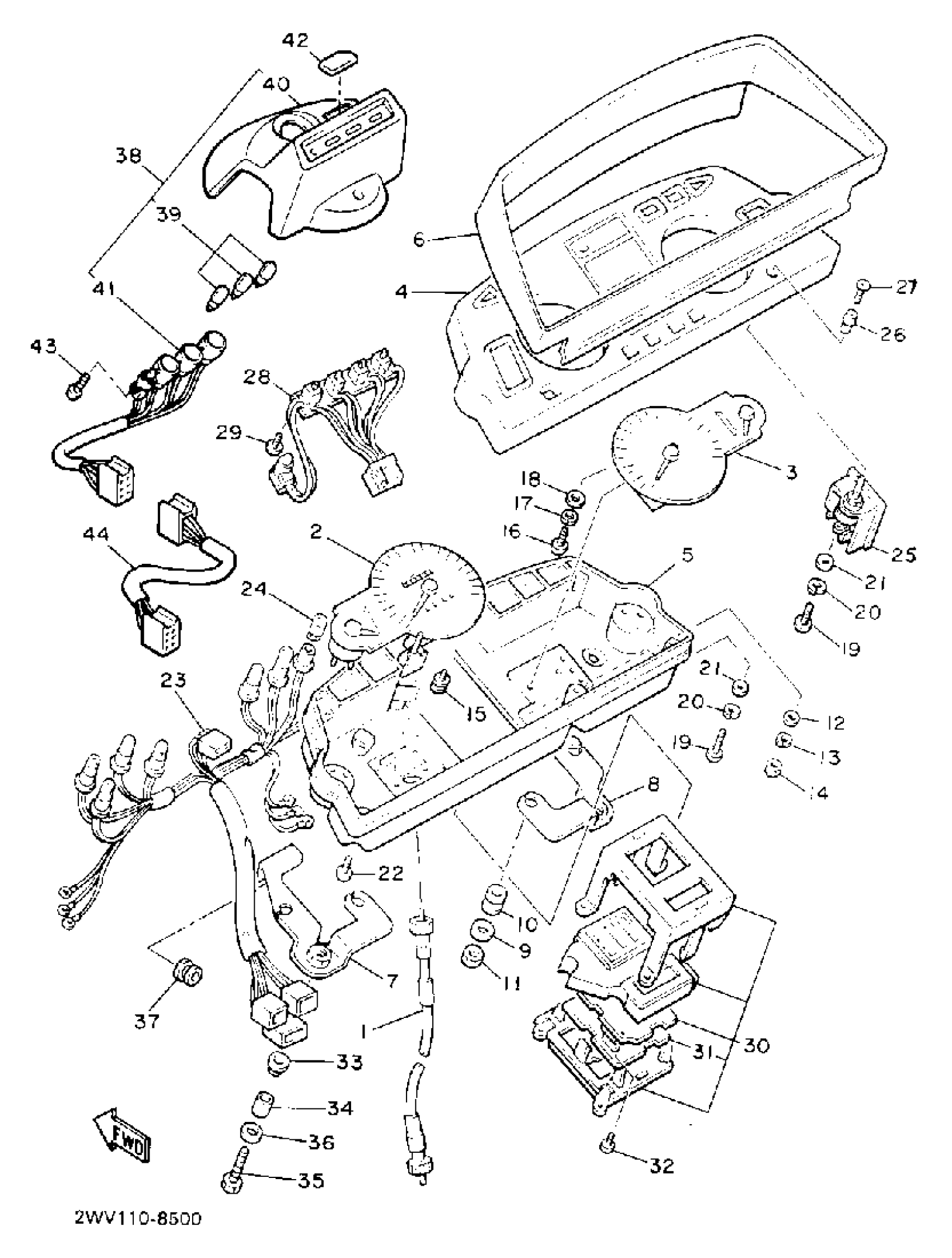

1990 Yamaha Venture Royale CA (XVZ13DAC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER CABLE ASSY

26H-83550-01-00

1
Out of stock

2

SPEEDOMETER ASY

1NL-83570-A0-00

1
Out of stock

3

TACHOMETER ASY

1NL-83540-A0-00

1
Out of stock

4

CASE, speedometer upper

1NL-83571-00-00

1
Out of stock

5

CASE, SPDMTR LOW

3JT-83572-00-00

1
Out of stock

6

. CASE, upper

26H-8353G-00-00

1
Out of stock

7

BRACKET, meter

26H-83519-00-00

1
Out of stock

8

BRACKET, tachometer

26H-83545-00-00

1
Out of stock

9

WASHER, PLATE

90201-06020-00

1
Out of stock

10

DAMPER

5G2-83523-00-00

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1
Out of stock

12

WASHER(3SX)

92907-03600-00

1
Out of stock

13

WASHER, SPRING

92990-03100-00

1
Out of stock

14

NUT(7H6)

90179-03478-00

1
Out of stock

15

SCREW, PAN HEAD (31A)

90167-04021-00

—
Out of stock

16

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

17

YBS67-4 WASHER, SPRING

92990-04100-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

19

SCREW PAN HEAD

98580-03010-00

—
Out of stock

20

WASHER, SPRING

92990-03100-00

1
Out of stock

21

WASHER(3SX)

92907-03600-00

1
Out of stock

22

SCREW, TAPPING (10M)

90164-04009-00

—
Out of stock

23

SOCKET CORD ASS''Y

41R-83509-00-00

1
Out of stock

24

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

25

ILLUMINATION CONTROL UNIT ASS''Y

41R-8357A-00-00

1
Out of stock

26

KNOB

41R-8357H-00-00

1
Out of stock

27

SCREW, PAN HEAD (11H)

90157-02031-00

—
Out of stock

28

LED ASS''Y

41R-83720-00-00

1
Out of stock

29

SCREW, PAN TAP.2

97707-30512-00

—
Out of stock

30

COMPUTER MONITOR ASS''Y

41R-8358A-M1-00

1
Out of stock

31

PRINT BOARD ASS''Y

41R-8359J-M1-00

1
Out of stock

32

SCREW, TAPPING (10M)

90164-04009-00

—
Out of stock

33

GROMMET 839774310000

90480-14023-00

—
Out of stock

34

SPACER

90560-07007-00

—
Out of stock

35

BOLT, HEXAGON

97017-06025-00

—
Out of stock

36

WASHER, PLATE

90201-06380-00

—
Out of stock

37

GROMMET

90480-10017-00

—
Out of stock

38

PILOT LIGHT ASS''Y

1NL-83530-00-00

1
Out of stock

39

. BULB (12V-3W)

1NL-83517-00-00

1
Out of stock

40

. PILOT BOX, upper

1NL-83568-00-00

1
Out of stock

41

. SOCKET CORD ASS''Y

1NL-83509-00-00

1
Out of stock

42

MARK 1

1NL-83621-00-00

1
Out of stock

43

SCREW, FLAT

98707-05012-00

—
Out of stock

44

WIRE, lead

1NL-83553-00-00

1
Out of stock
