1990 Yamaha Venture Royale CA (XVZ13DAC) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1990 Yamaha Venture Royale CA (XVZ13DAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

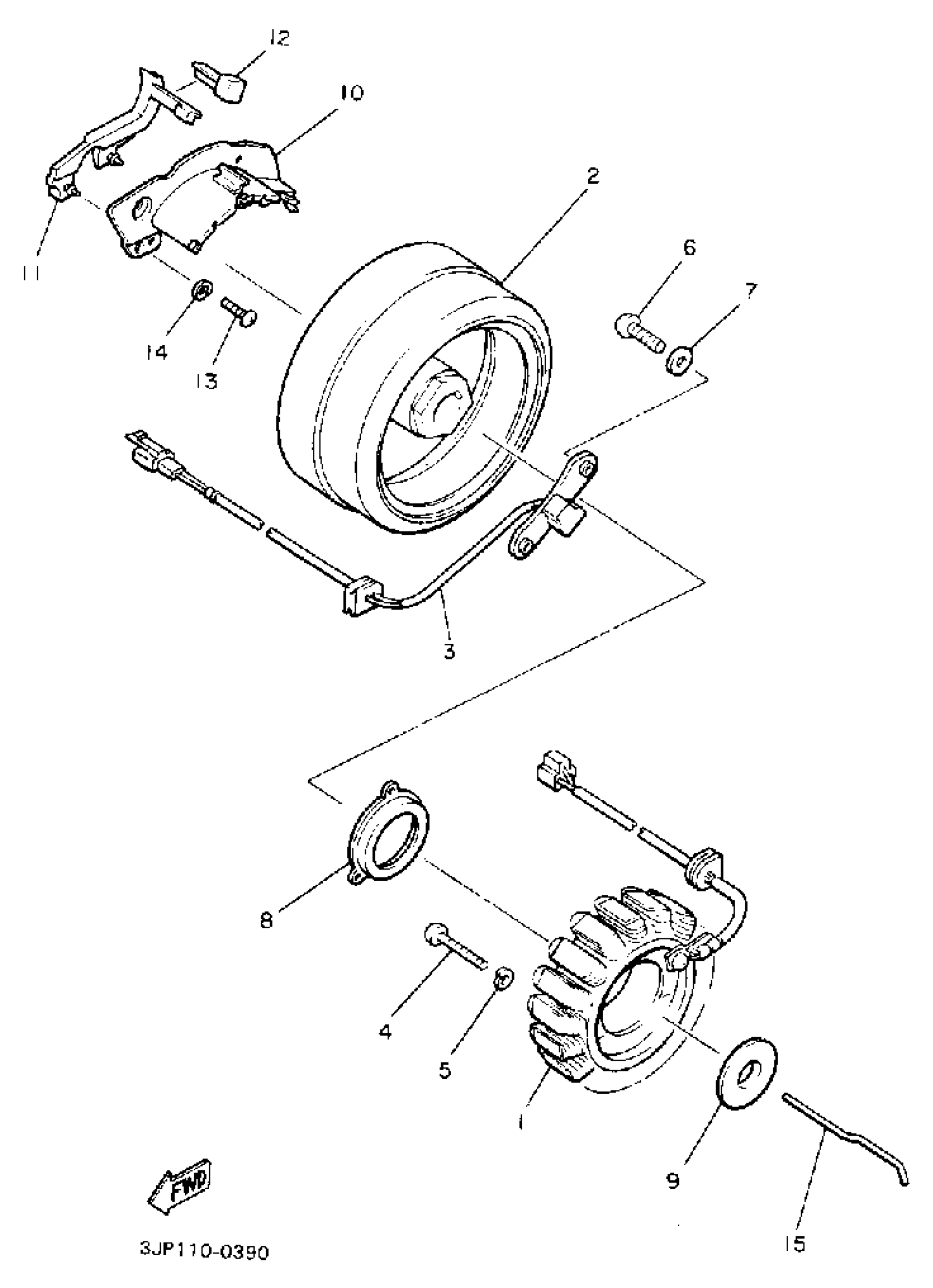

1990 Yamaha Venture Royale CA (XVZ13DAC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASS''Y

3JJ-81410-00-00

1
Out of stock

2

ROTOR ASS''Y

3JJ-81450-00-00

1
Out of stock

3

PICK-UP ASSY

3UF-81670-00-00

—
Out of stock

4

SCREW PAN HEAD

98580-06545-00

1
Out of stock

5

WASHER, SPRING

92995-06100-00

1
Out of stock

6

SCREW, PAN

98507-06014-00

1
Out of stock

7

WASHER, PLATE

90201-06045-00

1
Out of stock

8

PLATE, STAT0R

59J-15113-00-00

1
Out of stock

9

PLATE, C0VER

59J-15191-00-00

1
Out of stock

10

SEPARATOR, OIL

(1FK-15358-00-00)

1
Out of stock

11

SEAL, CRANKCASE

1FK-15379-00-00

1
Out of stock

12

SEAL, PROTECTOR

1FK-15494-00-00

—
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1
Out of stock

14

WASHER, SPRING

92995-06100-00

1
Out of stock

15

SHAFT 1

59J-11455-00-00

1
Out of stock
