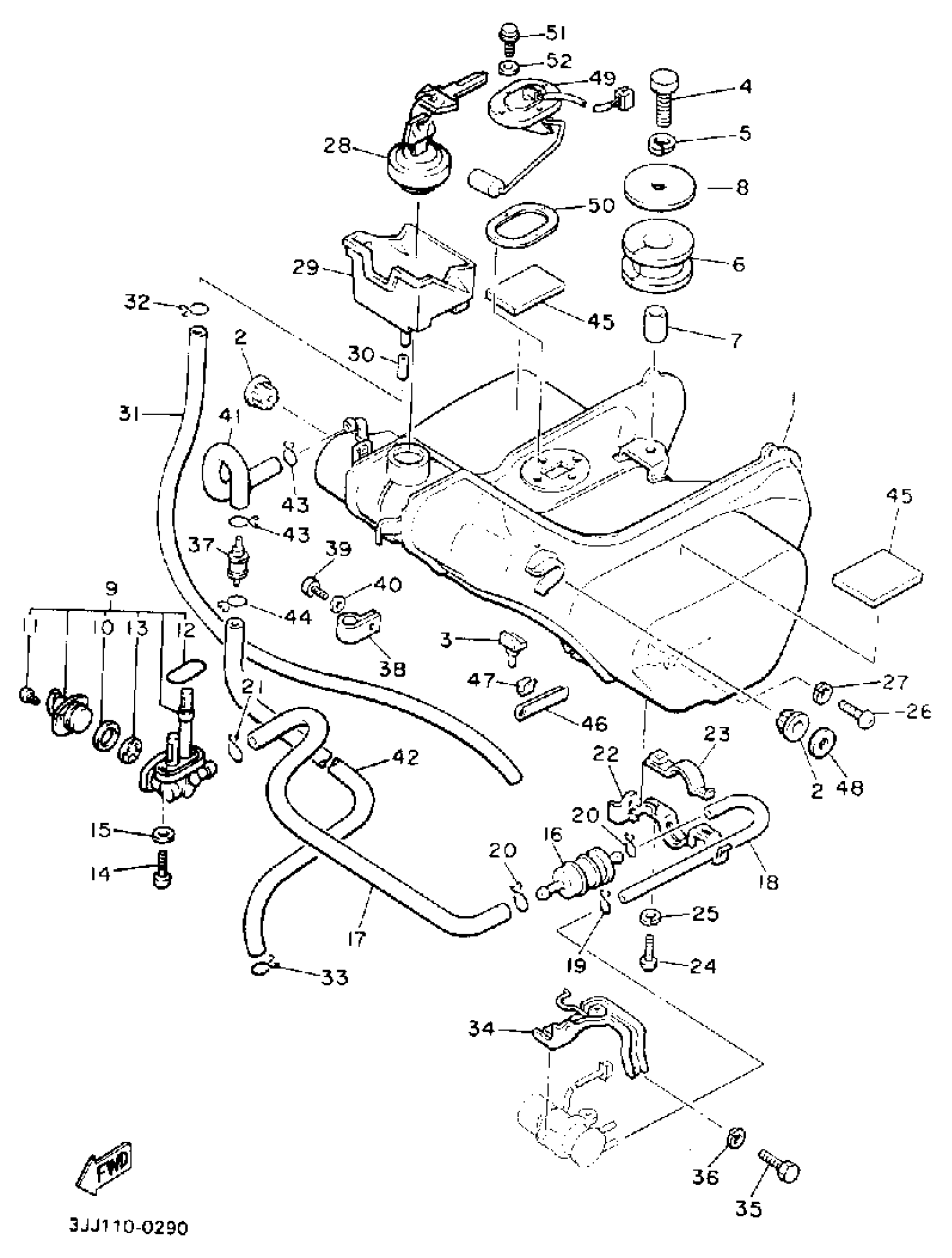

Yamaha XVZ13DAC (VENTURE ROYALE CA) 1990 FUEL TANK Diagram

#

Description
Price

1

. FUEL TANK COMP

54K-24110-00-33

Unavailable

2

DAMPER, LOCATING 1

26H-24181-00-00

$6.99

3

DAMPER, locating 2

26H-24182-01-00

Unavailable

4

BOLT

97014-08040-00

$7.49

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

GROMMET

90480-20357-00

Unavailable

7

COLLAR(82M)

90387-084R5-00

Unavailable

8

WASHER, PLATE (521)

90201-08569-00

$7.49

9

FUEL COCK ASS''Y 1

3JJ-24500-00-00

Unavailable

10

SEAL, COCK

3AJ-24534-01-00

$10.99

11

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

12

O-RING

4X8-24512-00-00

$8.99

13

VALVE PACKING

3AC-24523-00-00

$12.99

14

SCREW 256241430000

90149-06011-00

$5.60

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

FILTER ASSY

1FK-24560-10-00

Unavailable

17

PIPE 4

41R-24314-00-00

Unavailable

18

. PIPE 5

26H-24315-01-00

Unavailable

19

CLIP(42X)

90467-10091-00

Unavailable

20

CLIP (7K7)

90467-11044-00

Unavailable

21

CLIP(42X)

90467-10091-00

Unavailable

22

BRACKET, filter

26H-24566-02-00

Unavailable

23

BAND, FILTER

26H-24568-00-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

27

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

28

CAP ASSY

54K-24602-10-00

Unavailable

29

. COVER, filler

54K-2414A-00-00

Unavailable

30

PIPE, JOINT 1

(54K-24376-00-00)

Unavailable

31

HOSE (L1050)

90445-072G8-00

Unavailable

32

CLIP (16G)

90467-08021-00

Unavailable

33

CLIP 101235600

90467-08003-00

Unavailable

34

BRACKET, fuel pump

26H-24491-01-00

Unavailable

35

BOLT (661)

97013-06012-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable

37

ROLL OVER VALVE ASSY

25H-24180-00-00

Unavailable

38

CLAMP

90464-15014-00

Unavailable

39

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

40

WASHER, PLAIN (646)

92990-05600-00

Unavailable

41

PIPE, fuel 1

54K-24311-00-00

Unavailable

42

PIPE 2

(1UW-24312-00-00)

Unavailable

42

PIPE 2

(54K-24312-00-00)

Unavailable

43

CLIP

90467-100A1-00

Unavailable

44

CLIP 101235600

90467-08003-00

Unavailable

45

DAMPER

1YW-21638-00-00

Unavailable

46

MOLD, fuel tank

26H-24188-00-00

Unavailable

47

CLIP

90468-03063-00

Unavailable

48

WASHER, plate

90202-16163-00

Unavailable

49

SENDER UNIT ASS''Y, fuel meter

26H-85752-00-00

Unavailable

50

GASKET, SENDER UNIT

2H7-85753-00-00

Unavailable

51

BOLT, FLANGE

95817-06014-00

Unavailable

52

WASHER, PLATE(3MB)

90202-05187-00

$1.38
