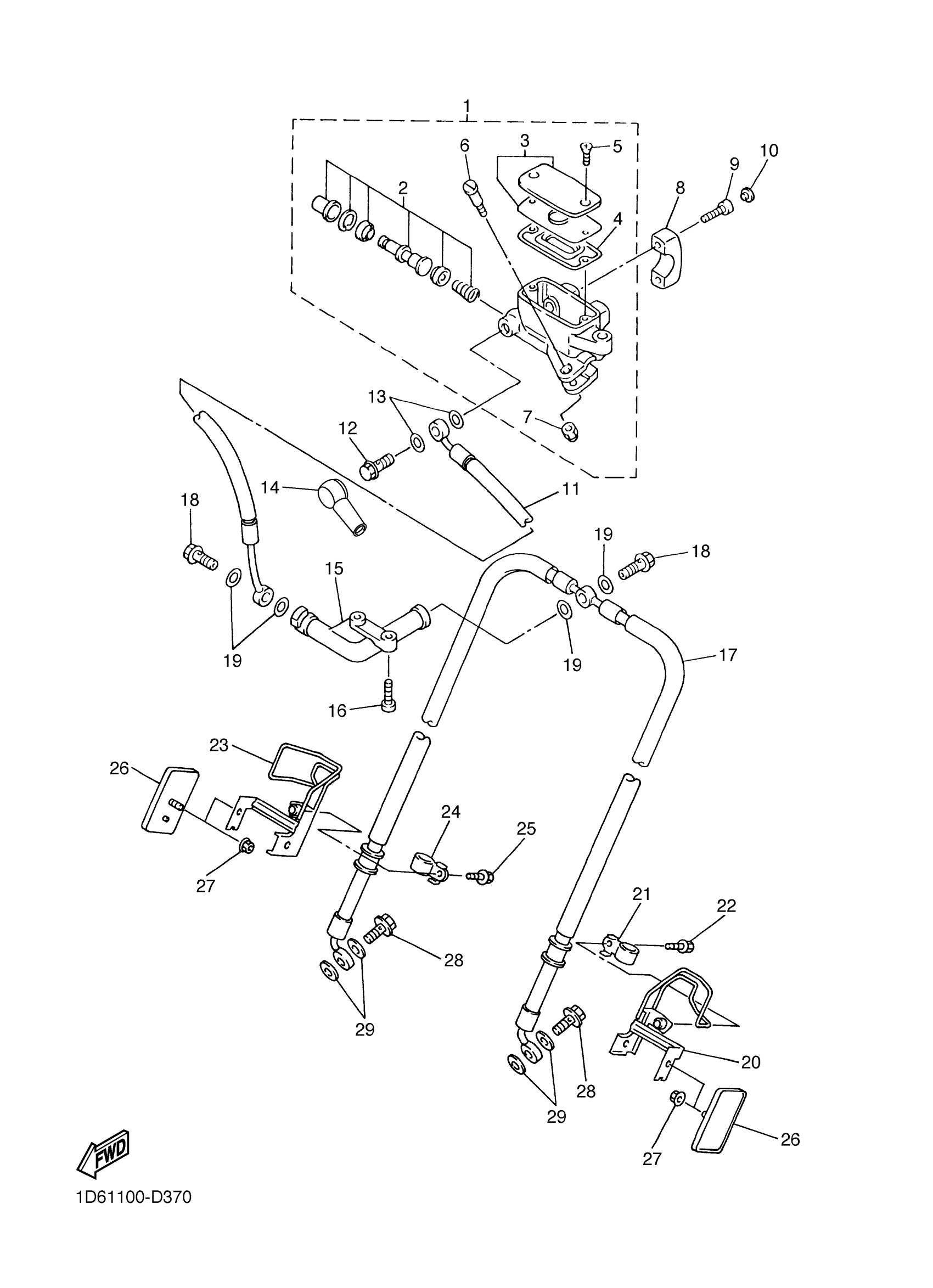

Yamaha XVZ13CTXL (ROYAL STAR TOUR DELUXE) 1D6G 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4XY-W2587-10-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

5VN-W2585-20-00

$61.99

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

9

BOLT,SOCKET HEAD

91314-06025-00

$8.49

10

PLUG(42H)

90338-06162-00

$11.49

11

HOSE, BRAKE 1

1D6-25872-00-00

Unavailable

12

BOLT, UNION

90401-10020-00

$9.49

13

GASKET

90430-10005-00

$9.49

14

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

15

JOINT

4NK-25885-00-00

Unavailable

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

HOSE, BRAKE 2

1D6-25873-00-00

Unavailable

18

BOLT, UNION

90401-10020-00

$9.49

19

GASKET

90430-10005-00

$9.49

20

HOLDER, BRAKE HOSE 1

4XY-25875-00-00

Unavailable

21

CLAMP 1

90461-08031-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

HOLDER, BRAKE HOSE

4XY-25886-00-00

Unavailable

24

CLAMP 1

90461-08031-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

27

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

28

BOLT, UNION

90401-10020-00

$9.49

29

GASKET

90430-10005-00

$9.49
