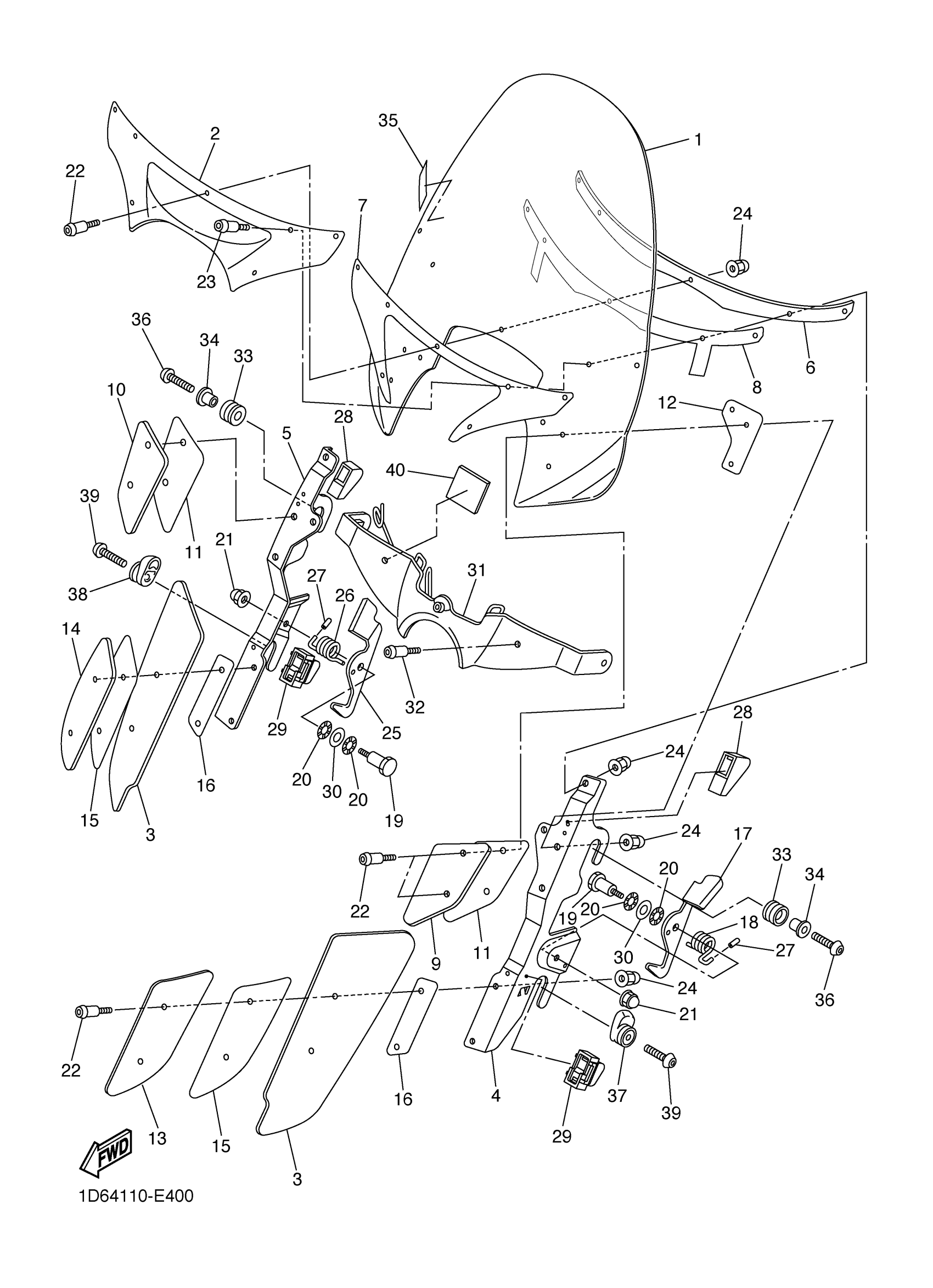

Yamaha XVZ13CTXL (ROYAL STAR TOUR DELUXE) 1D6G 2008 COWLING 1 Diagram
#
1
SCREEN
1D6-2837U-01-00
Unavailable
3
PANEL 1
1D6-2835U-01-00
Unavailable
4
BRACKET 1
1D6-2836A-00-00
Unavailable
5
BRACKET 2
1D6-2836E-00-00
Unavailable
6
HOLDER
1D6-28337-00-00
Unavailable
9
EMBLEM
1D6-2836C-00-00
Unavailable
10
EMBLEM
1D6-2837C-00-00
Unavailable
12
MOLE 2
1D6-28346-00-00
Unavailable
13
PLATE 1
1D6-28396-00-00
Unavailable
14
PLATE 2
1D6-28397-00-00
Unavailable
15
DAMPER 3
1D6-2834E-00-00
Unavailable
16
MOLE 3
1D6-28347-00-00
Unavailable
17
LOCK 1
1D6-2837G-00-00
Unavailable
18
SPRING
1D6-28388-00-00
Unavailable
19
BOLT, LEG SHIELD
1D6-28331-09-00
Unavailable
20
WASHER, WAVE
90206-12M00-00
Unavailable
21
NUT, CROWN (21G)
90176-06041-00
Unavailable
22
BOLT
1D6-28333-09-00
Unavailable
23
BOLT, COWLING
1D6-28374-09-00
Unavailable
24
NUT, CROWN(47X)
90176-05051-00
Unavailable
25
LOCK 2
1D6-2837H-00-00
Unavailable
26
SPRG 2
1D6-2838C-00-00
Unavailable
27
PROTECTOR 1
1D6-2834V-00-00
Unavailable
28
STOPPER, RUBBER 1
1D6-283C1-00-00
Unavailable
29
STOPPER, RUBBER 2
1D6-283C2-00-00
Unavailable
30
WASHER, PLATE
90201-12181-00
Unavailable
31
STAY 1
1D6-28356-01-00
Unavailable
32
BOLT, HEX. SOCKET BUTTON
90111-10016-00
Unavailable
33
DAMPER
1D6-28372-00-00
Unavailable
34
COLLAR
90387-08025-00
Unavailable
35
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
36
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
37
DAMPER, LOCATING 1
1D6-2836T-00-00
Unavailable
38
DAMPER, LOCATING 2
1D6-2836U-00-00
Unavailable
39
BOLT, BUTTON HEAD(3YF)
92014-08025-00
Unavailable
40
PROTECTOR 2
1D6-2834W-00-00
Unavailable
