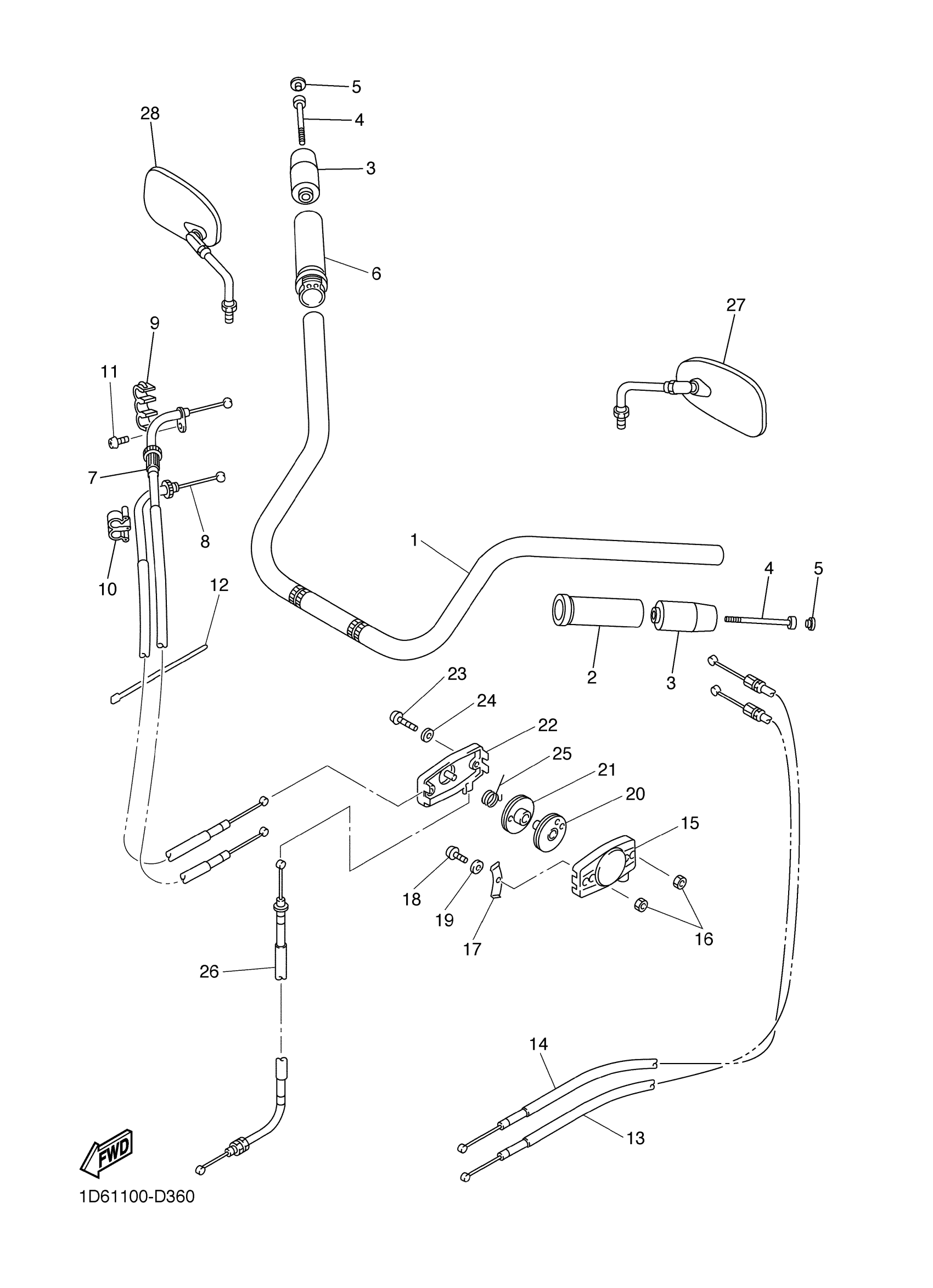

Yamaha XVZ13CTWC (ROYAL STAR TOUR DELUXE CA) 1D6B 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLE COMP.

1D6-26110-02-00

Unavailable

2

GRIP

4NK-26241-01-00

Unavailable

3

END, GRIP

1D6-26246-00-00

Unavailable

4

BOLT,SOCKET

91314-06075-00

$3.59

5

PLUG(42H)

90338-06162-00

$9.73

6

GRIP ASSY

4XY-26240-00-00

$74.09

7

CABLE, THROTTLE 1

1D6-26311-00-00

Unavailable

8

CABLE, THROTTLE 2

1D6-26312-00-00

$44.76

9

CLIP(J38)

90468-07179-00

$6.79

10

CLIP(33M)

90468-15139-00

$5.39

11

GASKET, EXHAUST

98507-05008-00

$2.52

12

CLAMP

90464-16061-00

$6.68

13

CABLE, THROTTLE 3

4XY-26313-00-00

Unavailable

14

CABLE, THROTTLE 4

4XY-2631J-00-00

Unavailable

15

HOUSING

41V-2629A-00-00

$22.80

16

NUT, U

95617-05100-00

Unavailable

17

CLAMP, WIRE

41V-2627E-00-00

Unavailable

18

SCREW, PAN HEAD

98507-05014-00

Unavailable

19

WASHER(1RW)

92907-05600-00

Unavailable

20

ROTOR

41V-26273-00-00

Unavailable

21

ROTOR 2

41V-2627A-00-00

Unavailable

22

HOUSING 2

41V-2629G-01-00

Unavailable

23

SCREW, PAN HEAD(4MY)

98507-05025-00

Unavailable

24

WASHER(1RW)

92907-05600-00

Unavailable

25

SPRING, HOUSING SUPPORT

41V-2629L-00-00

Unavailable

26

CABLE, CONTROL 1

4XY-2637E-00-00

Unavailable

27

REAR VIEW MIRROR ASSY (LEFT)

4NK-26280-10-00

Unavailable

28

REAR VIEW MIRROR ASSY (RIGHT)

4NK-26290-10-00

Unavailable
