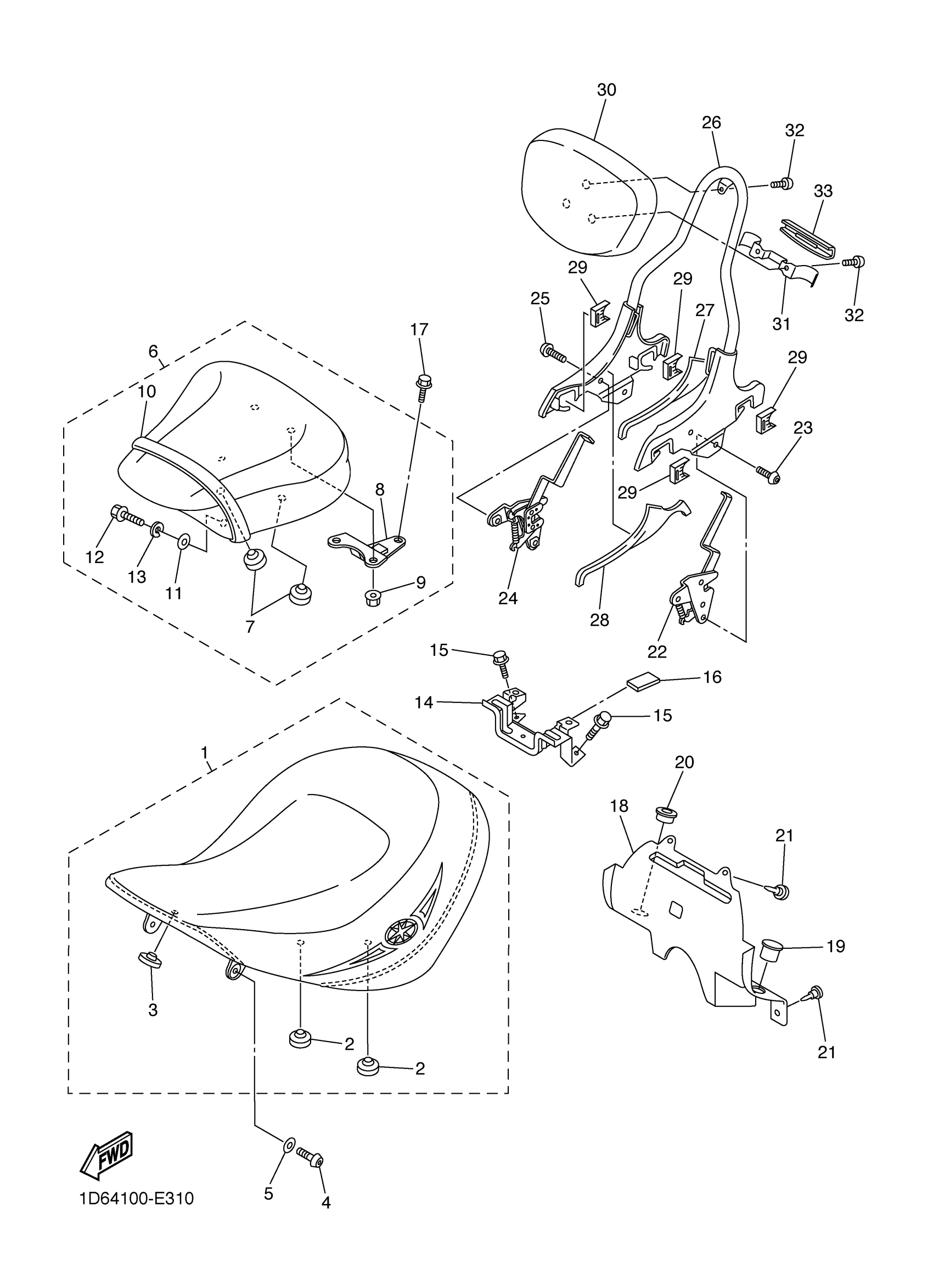

Yamaha XVZ13CTWC (ROYAL STAR TOUR DELUXE CA) 1D6B 2007 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

1D6-24710-00-00

$383.99

2

PAD, SEAT

22W-24741-00-00

$8.99

3

DAMPER, SEAT

3L7-24724-00-00

$7.99

4

BOLT, BUTTON

92014-08020-00

$8.49

5

WASHER, PLAIN

92903-08200-00

Unavailable

6

TANDEM SEAT ASSY

1D6-24750-00-00

Unavailable

7

PAD, SEAT

22W-24741-00-00

$8.99

8

STAY, SEAT

4NK-2471A-00-00

$23.99

9

NUT, FLANGE(4MV)

95707-06500-00

$1.23

10

BAND, SEAT

1D6-24734-00-00

Unavailable

11

WASHER, PLATE

90201-06380-00

$0.60

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

WASHER, SPRING

92907-06100-00

$4.25

14

BRACKET, SEAT LEVER 1

4NK-2475H-00-00

Unavailable

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

16

DAMPER, SEAT

509-24724-00-00

Unavailable

17

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

18

COVER

4NK-24796-00-00

Unavailable

19

PLUG(1FN)

90338-23172-00

Unavailable

20

HOLDER 1

4XY-24847-00-00

Unavailable

21

RIVET

90269-06001-00

Unavailable

22

LOCK ASSY

1D6-216A0-00-00

Unavailable

23

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

24

LOCK ASSY 2

1D6-216B0-00-00

Unavailable

25

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

26

REAR STAY COMP.

1D6-21640-00-00

Unavailable

27

COVER, REAR FENDER 1

1D6-2163A-00-00

Unavailable

28

COVER, REAR FENDER 2

1D6-2163E-00-00

Unavailable

29

STOPPER, RUBBER

1D6-216A1-00-00

Unavailable

30

BACK REST ASSY

1D6-2840F-11-00

Unavailable

31

STAY 2

5GA-2164G-00-00

Unavailable

32

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

33

EMBLEM

5GA-24786-01-00

Unavailable
