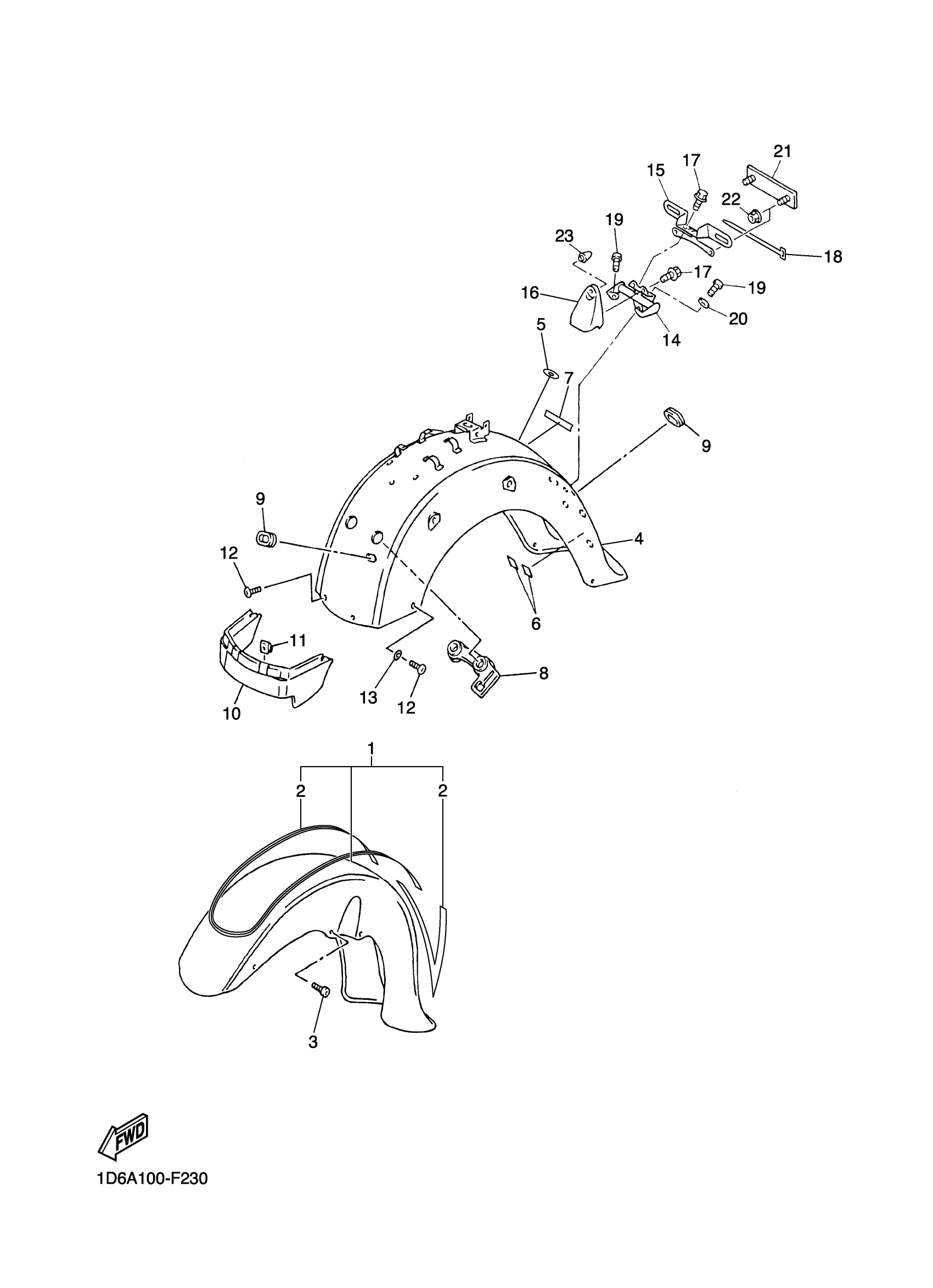

Yamaha XVZ13CTWC (ROYAL STAR TOUR DELUXE CA) 1D6B 2007 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

4NK-Y2150-M0-3Y

Unavailable

2

GRAPHIC SET, FRONT FENDER

1D6-21570-30-00

Unavailable

3

BOLT,SOCKET

91314-08025-00

$8.49

4

REAR FENDER COMP. (DEEP RED METALLIC K)

5EJ-21610-00-P2

Unavailable

5

SEAL 2

4NK-21735-00-00

$6.99

6

PROTECTOR

3MA-27491-00-00

$8.99

7

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

8

DAMPER

4NK-21649-00-00

Unavailable

9

GROMMET (438)

90480-15061-00

$8.49

10

FLAP

4NK-21621-00-PB

Unavailable

11

NUT, SPRING(4ES)

90183-06069-00

Unavailable

12

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

13

WASHER, PLATE

90202-06170-00

Unavailable

14

STAY, 9

4XY-2317W-00-00

Unavailable

15

BRACKET, LICENSE

5BN-84751-00-00

$63.99

16

BRACKET

1D6-84703-01-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

18

CLAMP

90464-25002-00

Unavailable

19

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

20

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

21

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

22

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

23

DAMPER 2

42U-21639-00-00

Unavailable
