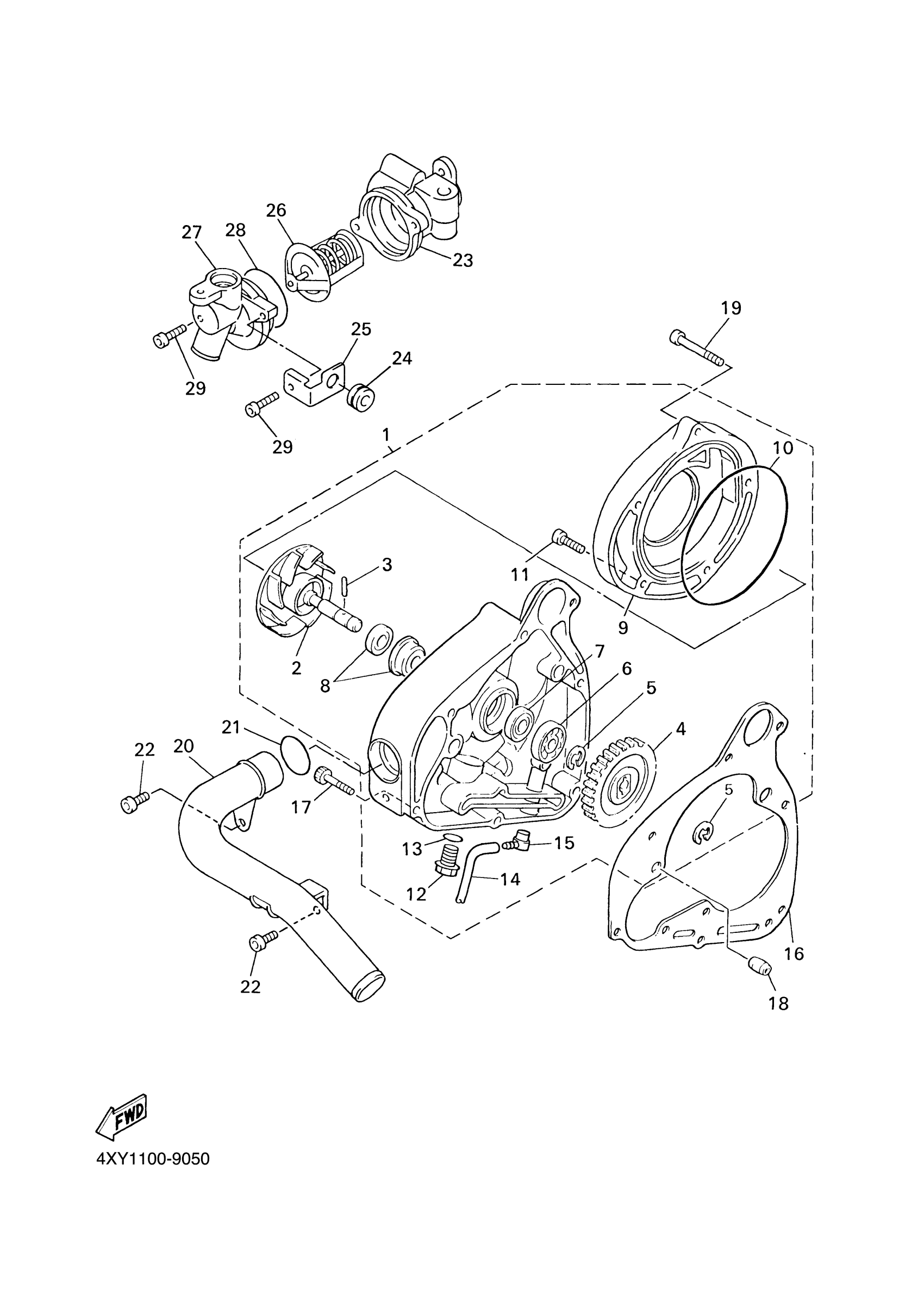

Yamaha XVZ13CTVC (ROYAL STAR TOUR DELUXE CA) 1D65 2006 WATER PUMP Diagram

WATER PUMP ASSY

4NK-12420-03-00

Unavailable

INPELLER SHAFT ASSY

1FK-12450-00-00

$122.99

PIN, DOWEL

93603-14026-00

$8.49

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

CIRCLIP(10W)

99009-10400-00

$4.73

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

OIL SEAL (J10)

93101-10090-00

$8.49

SEAL, MECHANICAL

11H-12438-10-00

$62.99

COVER, HOUSING

4NK-Y124E-02-00

$311.99

O-RING (26H)

93211-16591-00

$15.99

BOLT, SOCKET

91314-06030-00

$8.49

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

GASKET

214-11198-01-00

$3.17

HOSE (L200)

90445-05N13-00

$8.49

NOZZLE

353-13552-01-00

$9.99

GASKET, WATER PUMP

4NK-12449-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

BOLT, SOCKET

91314-06080-00

Unavailable

PIPE 3

4XY-12483-00-00

Unavailable

O-RING(1LT)

93210-23787-00

Unavailable

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

HOUSING, THERMOSTAT

4XY-12417-00-00

Unavailable

GROMMET(3GM)

90480-10517-00

Unavailable

BRACKET 1

4XY-1244E-00-00

Unavailable

THERMOSTAT ASSY

1AE-12410-01-00

Unavailable

COVER, THERMOSTAT

4XY-12413-00-00

Unavailable

O-RING (620)

93210-49046-00

Unavailable

BOLT,SOCKET

91317-06020-00

Unavailable
