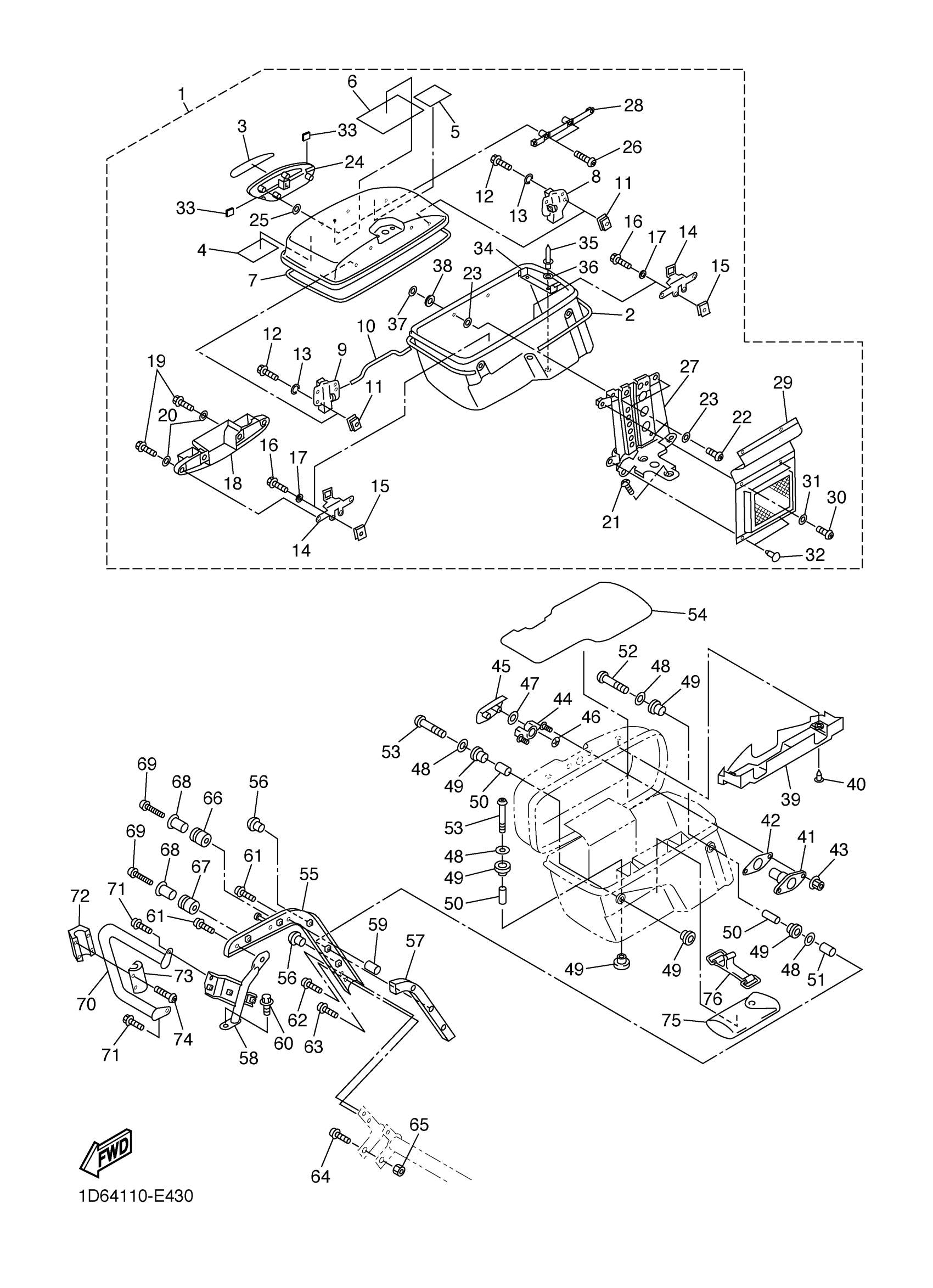

Yamaha XVZ13CTVC (ROYAL STAR TOUR DELUXE CA) 1D65 2006 SADDLEBAG 2 Diagram

#

Description
Price

1

SADDLEBAG COMP, 2 (BLUISH WHITE COCKTAIL 1)

4XY-Y2844-2M-P2

Unavailable

1

SADDLEBAG COMP, 2 (BLUISH WHITE COCKTAIL 1)

4XY-Y2844-2N-P2

Unavailable

2

. SADDLEBAG GRAPHIC SET 2

1D6-2840J-20-00

Unavailable

3

. ORNAMENT 2

1D6-2847B-10-00

Unavailable

4

PLATE, EPA 2 (CALIFORNIA)

1D6-2179R-10-00

Unavailable

4

PLATE, EPA (NON CALIFORNIA)

1D6-2179W-00-00

Unavailable

5

PLATE, ROUTING 2

4LE-21686-A0-00

$30.99

6

. LABEL, CAUTION

1D6-28446-00-00

Unavailable

7

SEAL 1

4XY-28428-00-00

Unavailable

8

HOOK 3

4XY-28494-00-00

$43.99

9

HOOK 4

4XY-28495-00-00

$43.99

10

LEVER

4XY-2841A-00-00

$37.99

11

NUT, SPRING

90183-051A0-00

$3.81

12

BOLT(4GV)

97017-05012-00

$8.49

13

WASHER(1RW)

92907-05600-00

$3.78

14

HOOK 2

4XY-28498-00-00

Unavailable

15

NUT, SPRING

90183-051A0-00

$3.81

16

BOLT(4TW)

97017-05016-00

Unavailable

17

WASHER(1RW)

92907-05600-00

$3.78

18

COVER 3

4XY-2843J-00-00

Unavailable

19

BOLT, BUTTON HEAD

92017-05008-00

Unavailable

20

WASHER(1RW)

92907-05600-00

$3.78

21

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

22

BOLT, BUTTON HEAD

92017-05014-00

Unavailable

23

WASHER PLATE (664)

90201-05556-00

Unavailable

24

HING 3

4XY-28454-10-00

Unavailable

25

WASHER, PLATE (5E3)

90202-10120-00

Unavailable

26

BOLT, BUTTON HEAD

92017-05020-00

Unavailable

27

REINFORCEMENT 2

4XY-28437-00-00

Unavailable

28

PLATE 5

4XY-2847H-00-00

Unavailable

29

STOPPER, OPEN

4XY-2845M-00-00

Unavailable

30

BOLT, BUTTON HEAD

92017-05014-00

Unavailable

31

WASHER(1RW)

92907-05600-00

$3.78

32

RIVET(81E)

90269-05055-00

Unavailable

33

PLATE, RUBBER 4

4XY-28499-00-00

Unavailable

34

PLATE

4XY-2843L-00-00

Unavailable

35

YBS34-46A RIVET

90267-32003-00

Unavailable

36

WASHER(3SX)

92907-03600-00

Unavailable

37

WASHER (853)

90201-08326-00

Unavailable

38

SEAL 2

4XY-28429-00-00

Unavailable

39

COVER LOCK ASSY 2

4XY-2849K-00-00

Unavailable

40

RIVET

90269-06081-00

Unavailable

41

LOCK ASSY 3

4XY-W2843-00-00

Unavailable

42

PLATE, RUBBER 5

4XY-2845J-00-00

Unavailable

43

NUT, S/L FLANGE

95607-05200-00

Unavailable

44

PLATE 6

4XY-2849H-00-00

Unavailable

45

COVER 6

4XY-2843C-00-00

Unavailable

46

NUT SPRING 116283170100

90183-04005-00

Unavailable

47

DAMPER

4KJ-28371-00-00

Unavailable

48

WASHER (23T)

90201-065G8-00

Unavailable

49

GROMMET(1NL)

90480-20447-00

Unavailable

50

COLLAR(82M)

90387-084R5-00

Unavailable

51

COLLAR

90387-0811N-00

Unavailable

52

BOLT, BUTTON HEAD

92017-06055-00

Unavailable

53

BOLT, BUTTON

92017-06035-00

Unavailable

54

SEAT 2

4XY-2848K-01-00

Unavailable

55

FRAME, SADDLEBAG 2

1D6-28474-00-00

Unavailable

56

PLUG

90338-07259-00

Unavailable

57

DAMPER 2

1D6-28416-00-00

Unavailable

58

STAY, FRONT GUARD 2

4YE-28414-02-00

Unavailable

59

COLLAR

90387-0811N-00

Unavailable

60

BOLT, FLANGE

95817-08014-00

Unavailable

61

BOLT, BUTTON HEAD(4TR)

92014-08040-00

Unavailable

62

BOLT, BUTTON

92014-08016-00

Unavailable

63

BOLT, BUTTON

92014-08020-00

Unavailable

64

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

65

NUT, CAP

95307-08800-00

Unavailable

66

DAMPER, GRIP

1D6-2843A-00-00

Unavailable

67

DAMPER, GRIP 2

1D6-2843N-00-00

Unavailable

68

COLLAR

90387-08029-00

Unavailable

69

BOLT, BUTTON HEAD

92017-08035-00

Unavailable

70

GUARD, SADDLEBAG 2

4XY-2842K-00-00

Unavailable

71

BOLT, FLANGE

95814-08016-00

Unavailable

72

REFLECTOR, REAR 1

4YE-85131-00-00

Unavailable

73

BRACKET, REFLECTOR 1

4YE-85132-00-00

Unavailable

74

SCREW, TAPPING(3NX)

97707-30514-00

Unavailable

75

TOOL KIT

4XY-28100-01-00

Unavailable

76

BAND

55K-2811G-00-00

Unavailable
