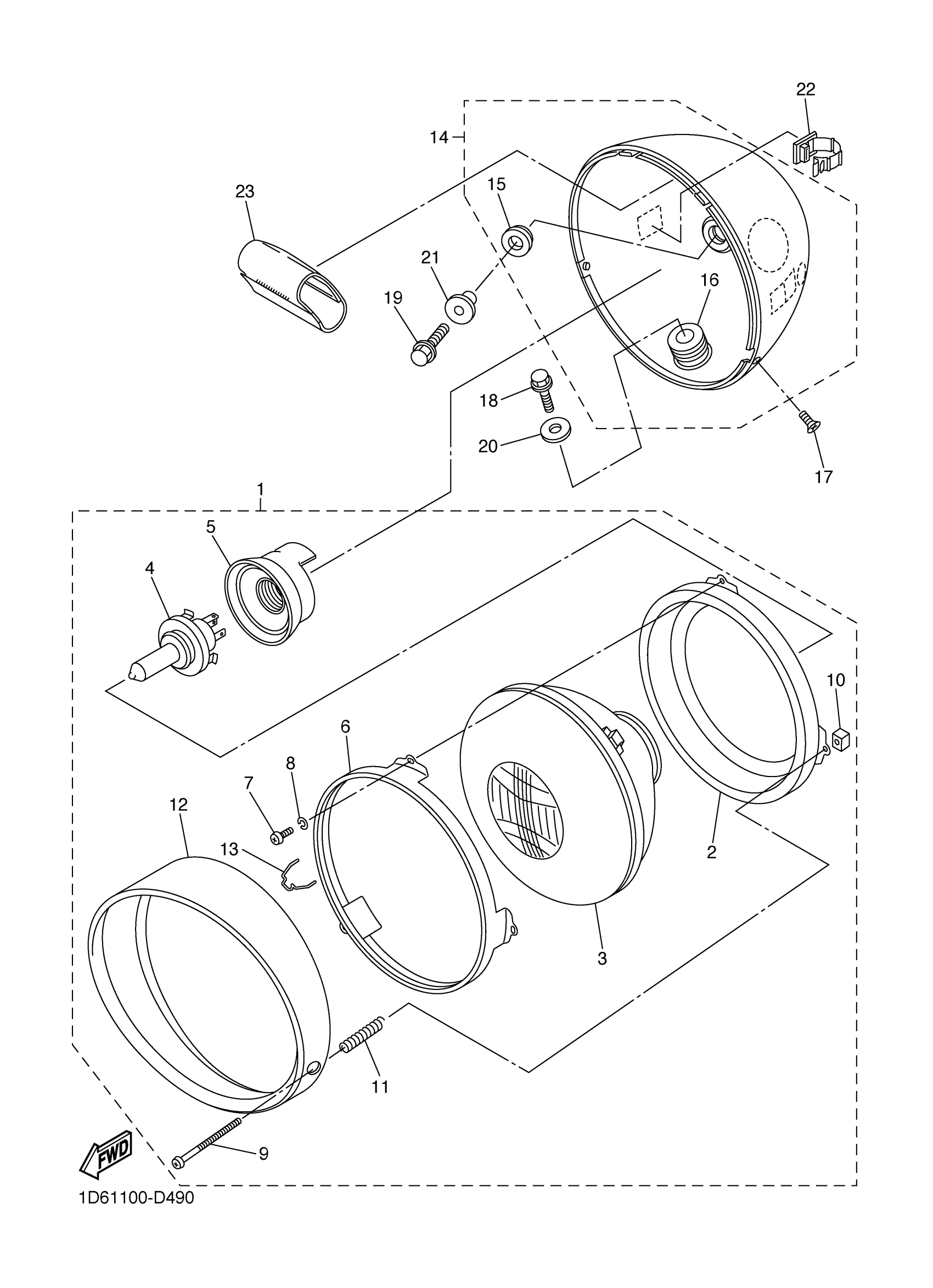

Yamaha XVZ13CTVC (ROYAL STAR TOUR DELUXE CA) 1D65 2006 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

1D6-84310-00-00

Unavailable

2

RING, MOUNTING

1D6-84394-00-00

Unavailable

3

LENS ASSY

4NK-84320-00-00

$216.99

4

BULB, HEADLIGHT

8V0-84314-10-00

$69.99

5

COVER, SOCKET

3SX-84397-00-00

Unavailable

6

RING, RETAINING

2F9-84395-00-00

$58.99

7

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

9

SCREW 214841316100

90157-04001-00

$8.49

10

NUT, ADJUST

198-84334-60-00

$7.99

11

SPRING, ADJUST

341-84332-60-00

$9.99

12

RIM, HEADLIGHT

1D6-84315-00-00

$357.99

13

SPRING, REFLECTOR SET (FRAN)

290-84124-21-00

Unavailable

14

BODY ASSY

4WM-84330-00-00

$349.99

15

DAMPER, HEADLIGHT 1

42X-84366-00-00

$20.99

16

DAMPER, HEADLIGHT 1

4WM-84366-00-00

Unavailable

17

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

18

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

19

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

20

WASHER, PLATE

90201-06086-00

Unavailable

21

COLLAR

90387-06175-00

Unavailable

22

CLAMP

90464-14002-00

Unavailable

23

STAY SETTING

5VN-8412H-00-00

Unavailable
