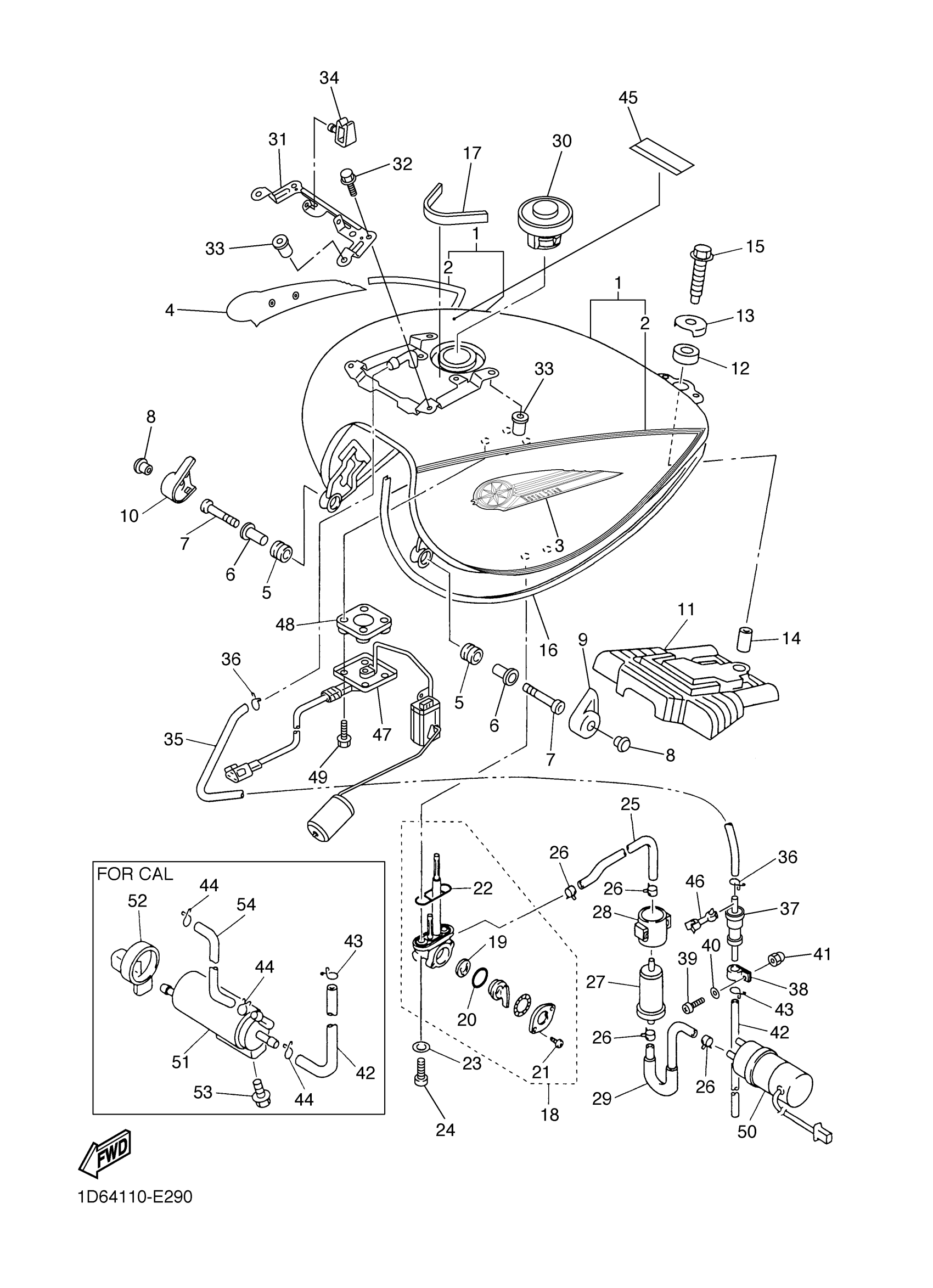

Yamaha XVZ13CTVC (ROYAL STAR TOUR DELUXE CA) 1D65 2006 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLUISH WHITE COCKTAIL 1)
1D6-Y2410-10-05
Unavailable
2
. GRAPHIC SET
1D6-24240-20-00
Unavailable
3
EMBLEM
1D6-2416B-20-00
Unavailable
4
EMBLEM
1D6-2417B-20-00
Unavailable
7
BOLT,SOCKET
91317-06035-00
Unavailable
10
COVER, SIDE 2
1D6-24139-00-00
Unavailable
11
DAMPER, LOCATING 2
4XY-24182-00-00
Unavailable
16
MOLD, FUEL TANK
1D6-24188-00-00
Unavailable
17
SEAL
1D6-2414G-00-00
Unavailable
18
FUEL COCK ASSY 1
4WM-24500-10-00
Unavailable
19
VALVE PACKING
3AC-24523-00-00
Unavailable
20
SEAL, COCK
3AJ-24534-01-00
Unavailable
21
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
22
O-RING
4X8-24512-00-00
Unavailable
23
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
24
SCREW 256241430000
90149-06011-00
Unavailable
25
PIPE, FUEL 1
4XY-24311-00-00
Unavailable
26
CLIP (7K7)
90467-11044-00
Unavailable
27
FILTER ASSY
1FK-24560-10-00
Unavailable
28
BRACKET, FILTER
1FK-24566-00-00
Unavailable
29
PIPE 2
4NK-24312-00-00
Unavailable
30
CAP ASSY
4NK-24602-20-00
Unavailable
31
STAY, FUEL TANK 1
1D6-24157-00-00
Unavailable
32
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
33
NUT(1KT)
90179-05523-00
Unavailable
34
CLAMP
90464-06005-00
Unavailable
35
PIPE 10
1D6-24321-00-00
Unavailable
36
CLIP
90467-09002-00
Unavailable
37
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
38
CLAMP
90464-15014-00
Unavailable
39
SCREW, PAN
98517-05012-00
Unavailable
40
WASHER(1RW)
92907-05600-00
Unavailable
41
NUT, CROWN(47X)
90176-05054-00
Unavailable
42
HOSE (L400)
90445-116K9-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
CLIP
90467-100A1-00
Unavailable
45
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
46
CLAMP(2YK)
90464-13103-00
Unavailable
47
SENDER UNIT ASSY, FUEL METER
1D6-85752-01-00
Unavailable
48
GASKET, SENDER UNIT
5G3-85753-00-00
Unavailable
49
BOLT, WITH WASHER
90119-05071-00
Unavailable
50
FUEL PUMP COMP.
1D6-13907-01-00
Unavailable
51
CANISTER ASSY
4XY-24170-00-00
Unavailable
52
COVER, CANISTER
2JU-2419E-00-00
Unavailable
53
BOLT, FLANGE
95817-06010-00
Unavailable
54
HOSE
90445-113K3-00
Unavailable
