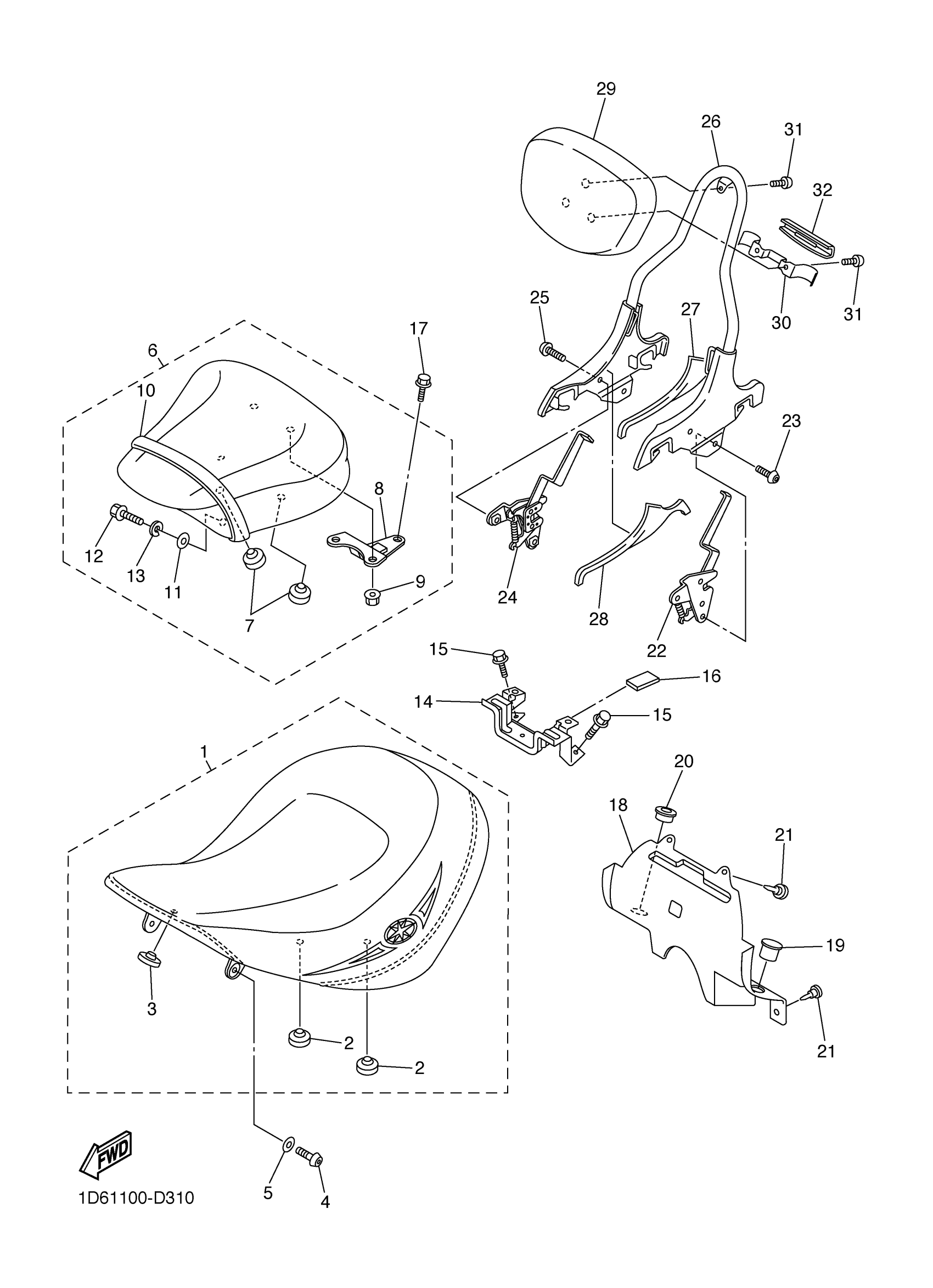

Yamaha XVZ13CTTC (ROYAL STAR TOUR DELUXE CA) 1D62 2005 SEAT Diagram
#
Description
Price
5
WASHER, PLAIN
92903-08200-00
Unavailable
6
TANDEM SEAT ASSY
1D6-24750-00-00
Unavailable
10
BAND, SEAT
1D6-24734-00-00
Unavailable
14
BRACKET, SEAT LEVER 1
4NK-2475H-00-00
Unavailable
16
DAMPER, SEAT
509-24724-00-00
Unavailable
17
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
18
COVER
4NK-24796-00-00
Unavailable
19
PLUG(1FN)
90338-23172-00
Unavailable
20
HOLDER 1
4XY-24847-00-00
Unavailable
21
RIVET
90269-06001-00
Unavailable
22
LOCK ASSY
1D6-216A0-00-00
Unavailable
23
BOLT, BUTTON HEAD(4NK)
92014-06014-00
Unavailable
24
LOCK ASSY 2
1D6-216B0-00-00
Unavailable
25
BOLT, BUTTON HEAD(4NK)
92014-06014-00
Unavailable
26
REAR STAY COMP.
1D6-21640-00-00
Unavailable
27
COVER, REAR FENDER 1
1D6-2163A-00-00
Unavailable
28
COVER, REAR FENDER 2
1D6-2163E-00-00
Unavailable
29
PASSENGER BACKREST PAD
1D6-2840F-00-00
Unavailable
30
STAY 2
5GA-2164G-00-00
Unavailable
31
BOLT, BUTTON HEAD(3JP)
92014-06012-00
Unavailable
32
EMBLEM
5GA-24786-01-00
Unavailable
