Description

Price

1

MASTER CYLINDER SUB ASSY

4XY-W2587-01-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

5

SCREW

3D8-2589H-10-00

$7.99

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$8.49

8

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

9

BOLT,SOCKET HEAD

91314-06025-00

$8.49

10

PLUG(42H)

90338-06162-00

$11.49

11

HOSE, BRAKE 1

1D6-25872-00-00

Unavailable

12

BOLT, UNION(3GM)

90401-10159-00

$11.49

13

WASHER, PLATE(481)

90201-10118-00

Unavailable

14

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

15

JOINT

4NK-25885-00-00

Unavailable

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

HOSE, BRAKE 2

1D6-25873-00-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

$11.49

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

HOLDER, BRAKE HOSE 1

4XY-25875-00-00

Unavailable

21

CLAMP 1

90461-08031-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

HOLDER, BRAKE HOSE

4XY-25886-00-00

Unavailable

24

CLAMP 1

90461-08031-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable

26

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

27

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

28

BOLT, UNION(3GM)

90401-10159-00

$11.49

29

WASHER, PLATE(481)

90201-10118-00

Unavailable

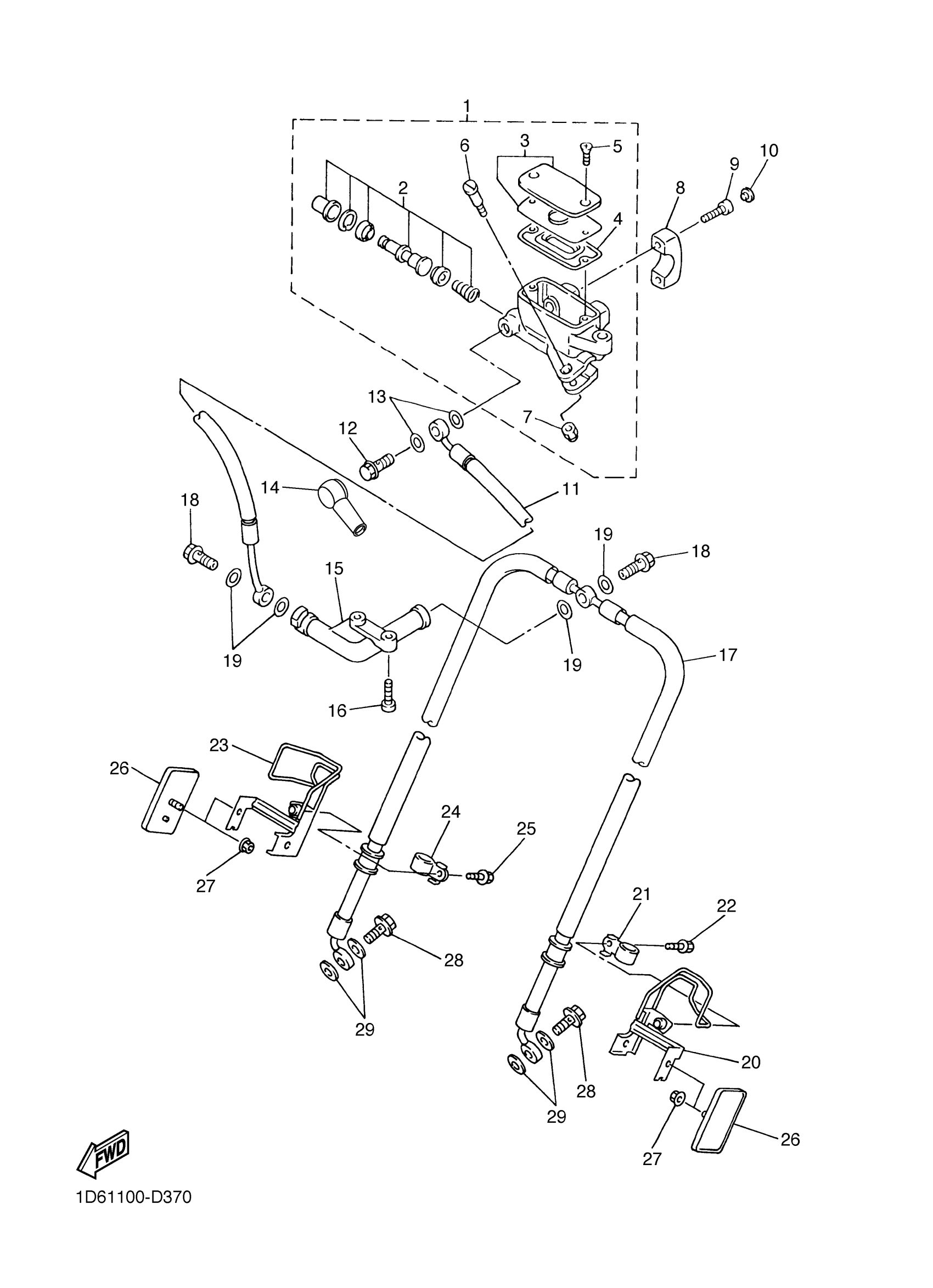

Yamaha XVZ13CTTC (ROYAL STAR TOUR DELUXE CA) 1D62 2005 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

CYLINDER KIT, MASTER

RESERVOIR CAP SET

DIAPHRAGM, RESERVOIR

SCREW

BOLT, LEVER

NUT, U(4NK)

BRACKET, MASTER CYLINDER

BOLT,SOCKET HEAD

PLUG(42H)

HOSE, BRAKE 1

BOLT, UNION(3GM)

WASHER, PLATE(481)

BOOT, MASTER CYLINDER

JOINT

BOLT,SOCKET

HOSE, BRAKE 2

BOLT, UNION(3GM)

WASHER, PLATE(481)

HOLDER, BRAKE HOSE 1

CLAMP 1

BOLT, FLANGE

HOLDER, BRAKE HOSE

CLAMP 1

BOLT, FLANGE

FRONT REFLECTOR ASSY

NUT, FLANGE(3GM)

BOLT, UNION(3GM)

WASHER, PLATE(481)
