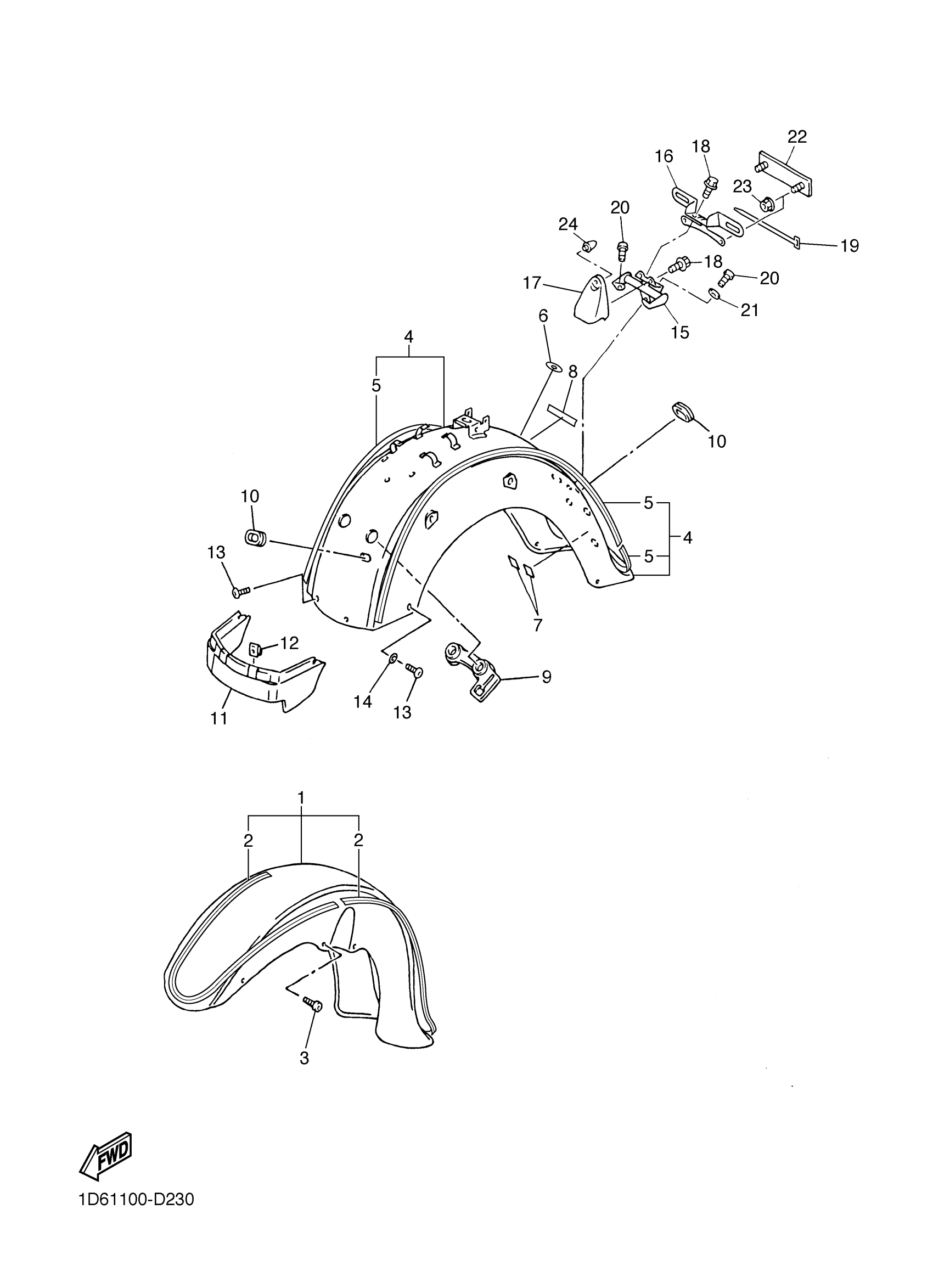

Yamaha XVZ13CTTC (ROYAL STAR TOUR DELUXE CA) 1D62 2005 FENDER Diagram
#
Description
Price
1
FRONT FENDER ASSY (BLACK METALLIC X) (DARK BLUISH GRAY METALLIC 8)
4NK-Y2150-J0-1Y
Unavailable
1
FRONT FENDER ASSY
4NK-Y2150-K0-2Y
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DARK BLUISH GRAY METALLIC 8)
1D6-21570-01-00
Unavailable
2
. GRAPHIC SET, FRONT FENDER (DEEP RED METALLIC K)
1D6-21570-11-00
Unavailable
4
REAR FENDER COMP. (BLACK METALLIC X) (DARK BLUISH GRAY METALLIC 8)
5EJ-Y2161-50-3X
Unavailable
4
REAR FENDER COMP. (BLACK METALLIC X) (DEEP RED METALLIC K)
5EJ-Y2161-60-4X
Unavailable
5
.. GRAPHIC SET, REAR FENDER (DARK BLUISH GRAY METALLIC 8)
1D6-2165A-01-00
Unavailable
5
.. GRAPHIC SET, REAR FENDER (DEEP RED METALLIC K)
1D6-2165A-11-00
Unavailable
9
DAMPER
4NK-21649-00-00
Unavailable
11
FLAP
4NK-21621-00-PA
Unavailable
11
FLAP
4NK-21621-00-PB
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
14
WASHER, PLATE
90202-06170-00
Unavailable
15
STAY, 9
4XY-2317W-00-00
Unavailable
16
BRACKET, LICENSE
5BN-84751-00-00
Unavailable
17
BRACKET
1D6-84703-01-00
Unavailable
18
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
19
CLAMP
90464-25002-00
Unavailable
20
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
21
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
22
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
23
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
24
DAMPER 2
42U-21639-00-00
Unavailable
