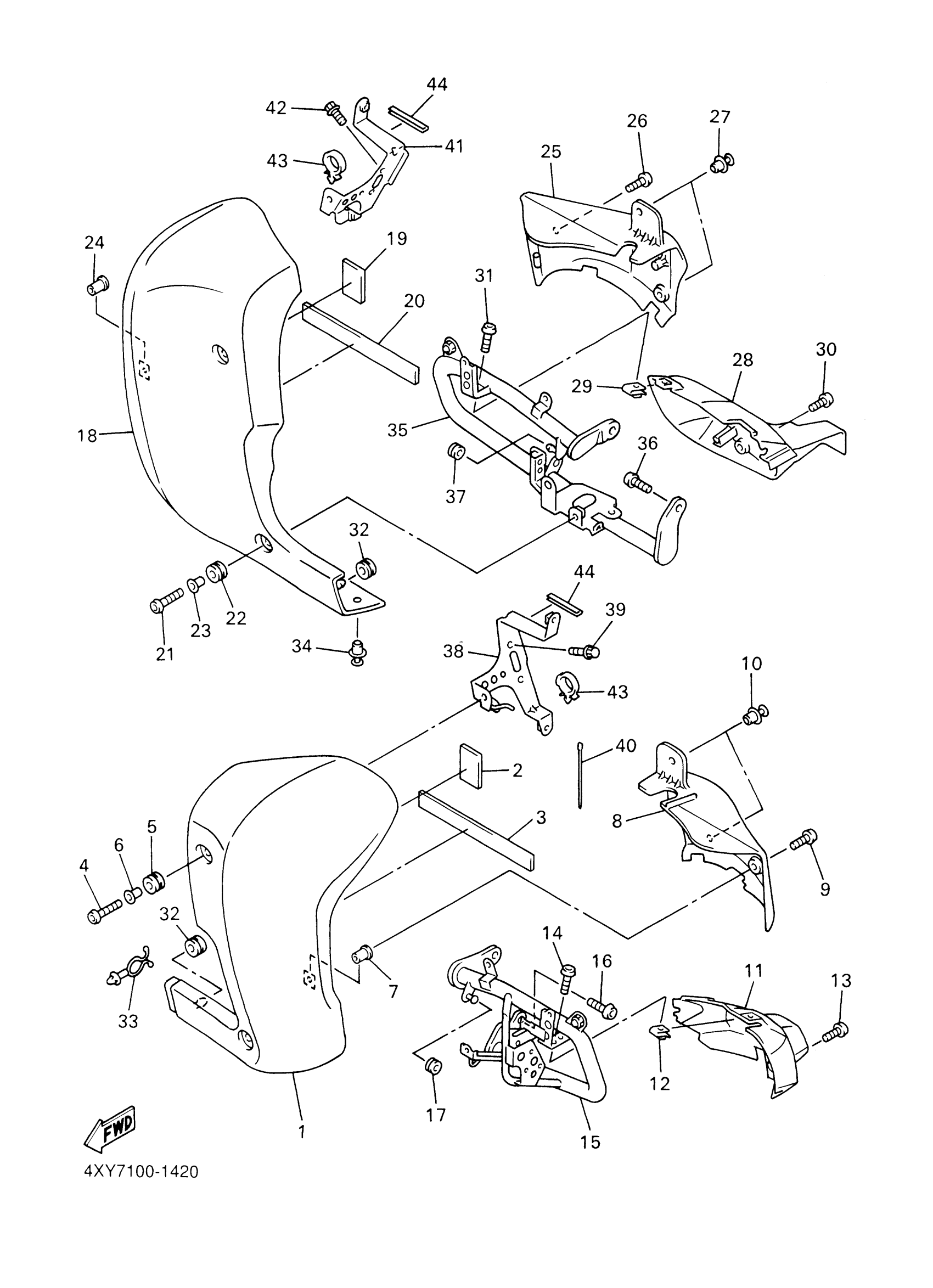

Yamaha XVZ13CTTC (ROYAL STAR TOUR DELUXE CA) 1D62 2005 COWLING 2 Diagram

#

Description
Price

1

BODY, FRONT LOWER 1 (BLACK METALLIC X)

4XY-2835J-01-P5

Unavailable

1

BODY, FRONT LOWER 1

4XY-2835J-01-P6

$454.32

2

DAMPER

22F-2139X-00-00

$5.96

3

DAMPER

4XY-2139X-00-00

$6.36

4

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$5.30

5

GROMMET (4N0)

90480-10289-00

$6.02

6

COLLAR(4BH)

90387-066Y6-00

$6.52

7

NUT(1KT)

90179-05523-00

$4.33

8

BODY, REAR 1

4XY-2835N-00-00

Unavailable

9

SCREW(3YF)

90149-05299-00

$3.32

10

RIVET

90269-06081-00

$5.31

11

COVER 1

4XY-2842M-00-00

Unavailable

12

NUT, SPRING

90183-051A0-00

$2.49

13

SCREW, BINDING (10V)

90154-05013-00

$4.64

14

SCREW, BINDING

98907-05010-00

$5.85

15

GUARD, ENGINE 1

4XY-28418-01-00

Unavailable

16

BOLT, BUTTON

92017-10030-00

Unavailable

17

GROMMET (2H7)

90480-11224-00

Unavailable

18

BODY, FRONT LOWER 2 (BLACK METALLIC X)

4XY-2835K-01-P5

Unavailable

18

BODY, FRONT LOWER 2

4XY-2835K-01-P6

Unavailable

19

DAMPER

22F-2139X-00-00

$5.96

20

DAMPER

4XY-2139X-00-00

$6.36

21

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$5.30

22

GROMMET (4N0)

90480-10289-00

$6.02

23

COLLAR(4BH)

90387-066Y6-00

$6.52

24

NUT(1KT)

90179-05523-00

$4.33

25

BODY, REAR 2

4XY-2835R-00-00

Unavailable

26

SCREW(3YF)

90149-05299-00

$3.32

27

RIVET

90269-06081-00

$5.31

28

COVER 2

4XY-2842N-00-00

Unavailable

29

NUT, SPRING

90183-051A0-00

$2.49

30

SCREW, BINDING (10V)

90154-05013-00

$4.64

31

SCREW, BINDING

98907-05010-00

$5.85

32

GROMMET(4DN)

90480-01558-00

Unavailable

33

CLAMP

90464-18269-00

Unavailable

34

RIVET(4JH)

90269-07076-00

Unavailable

35

GUARD, ENGINE 2

4XY-28419-00-00

Unavailable

36

BOLT, BUTTON

92017-10030-00

Unavailable

37

GROMMET (2H7)

90480-11224-00

Unavailable

38

STAY, SUPPORT 1

4XY-2831T-01-00

Unavailable

39

BOLT, FLANGE

95817-06010-00

Unavailable

40

CLAMP

90465-10098-00

$1.68

41

STAY, SUPPORT 2

4XY-2832T-01-00

Unavailable

42

BOLT, FLANGE

95817-06010-00

Unavailable

43

CLAMP(M80)

90464-07209-00

Unavailable

44

MOLE 3

4XY-28347-00-00

Unavailable
