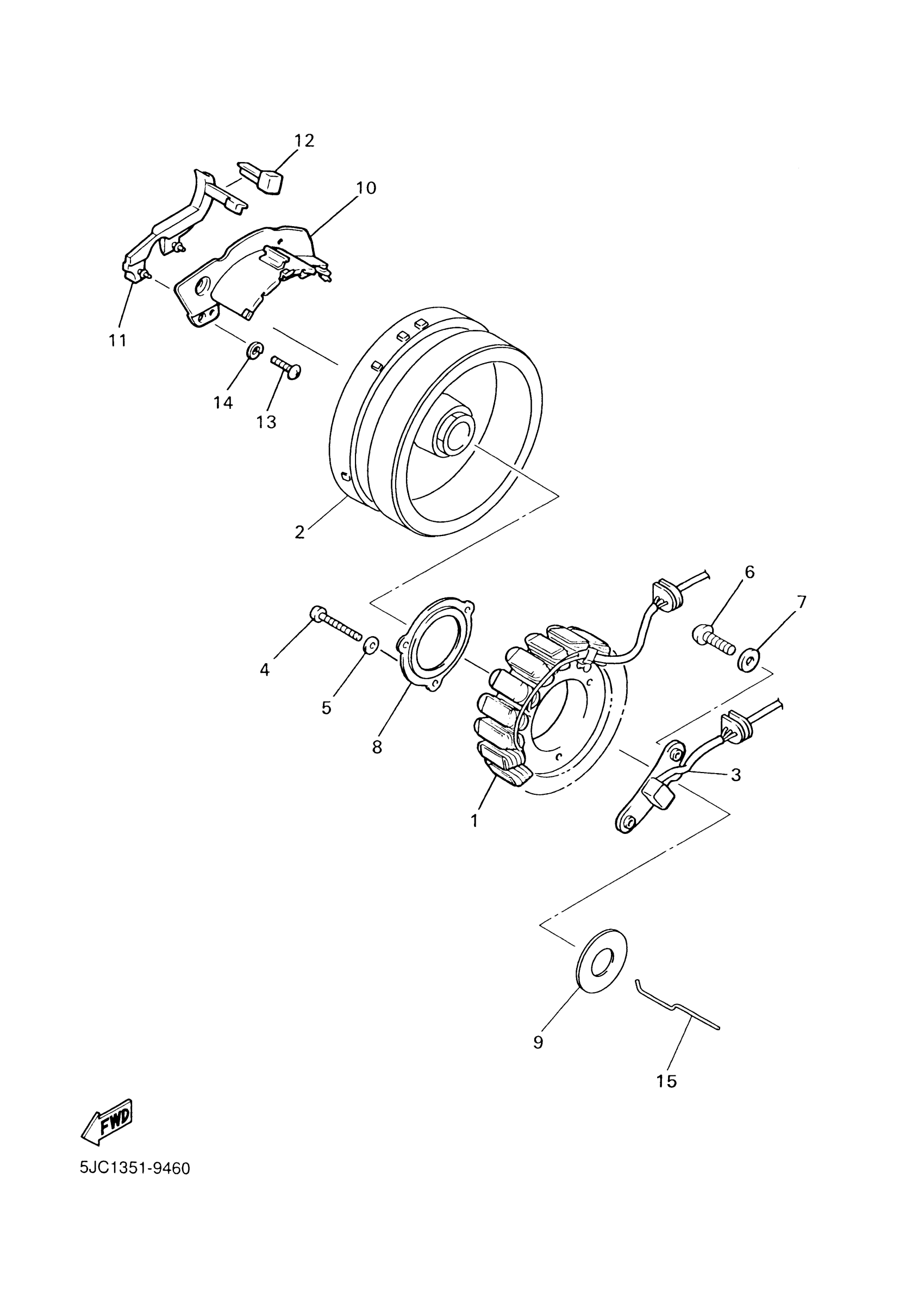

Yamaha XVZ13CTSZC (ROYAL STAR TOUR DELUXE S CA) 1BL2 2010 GENERATOR Diagram

#

Description
Price

1

STATOR ASSY

4XY-81410-02-00

Unavailable

2

ROTOR ASSY

4XY-81450-00-00

$793.99

3

PICK-UP ASSY

1D6-81670-00-00

Unavailable

4

SCREW, PAN

98507-06035-00

$8.49

5

WASHER(6TA)

92907-06600-00

$2.72

6

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

7

WASHER, PLATE

90201-06045-00

$8.49

8

PLATE

4NK-15113-00-00

$10.99

9

PLATE, C0VER

59J-15191-00-00

$4.37

10

SEPARATOR, OIL

1FK-15358-00-00

Unavailable

11

SEAL, CRANKCASE

1FK-15379-00-00

$25.99

12

SEAL, PROTECTOR

1FK-15494-00-00

Unavailable

13

SCREW, PAN

98517-06012-00

$3.78

14

WASHER(6TA)

92907-06600-00

$2.72

15

SHAFT 1

59J-11455-00-00

$11.99
