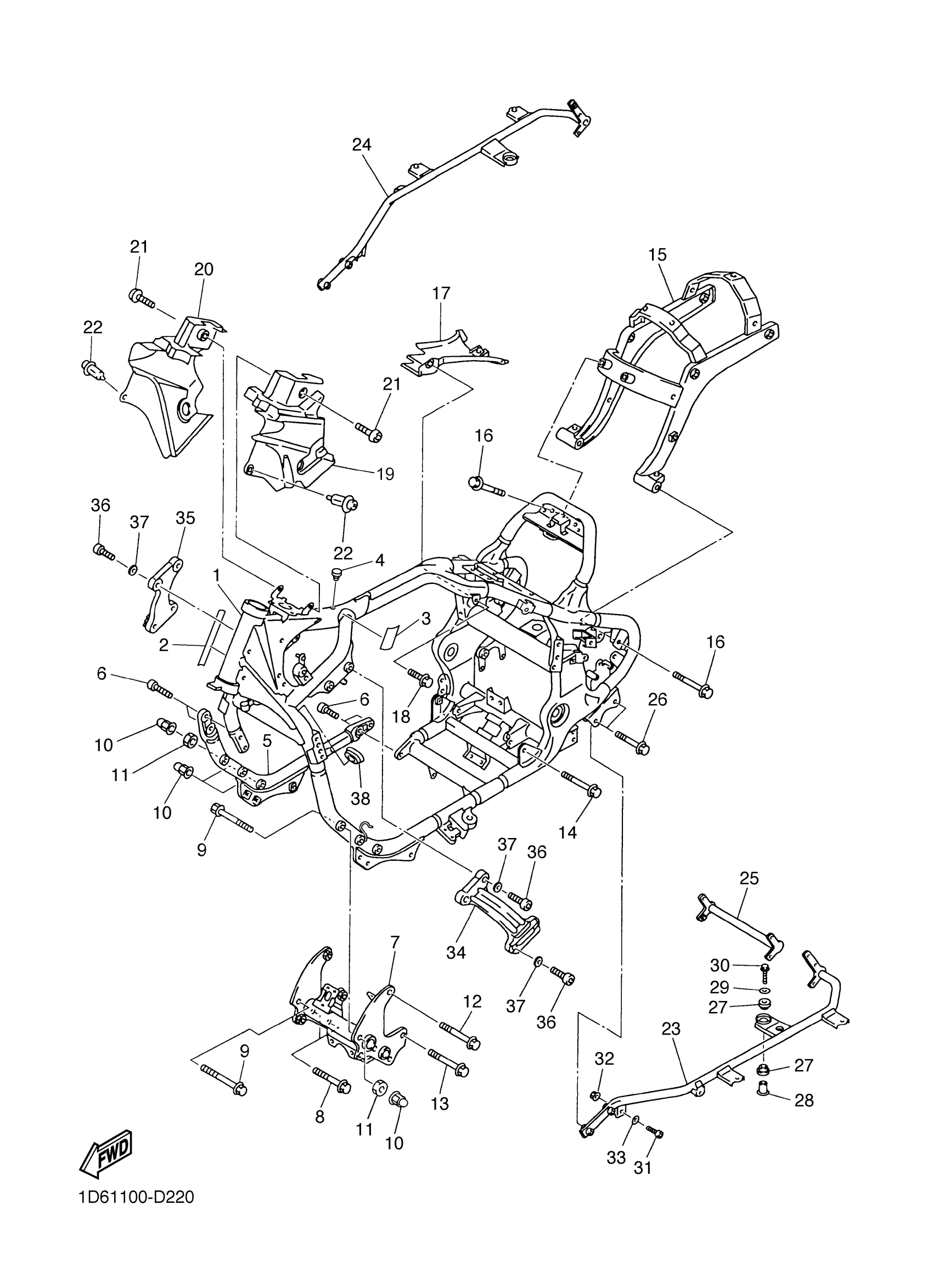

Yamaha XVZ13CTSXC (ROYAL STAR TOUR DELUXE S CA) 1D6L 2008 FRAME Diagram
#
1
FRAME COMP.
1D6-21110-00-00
Unavailable
2
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
7
CROSS BAR COMPLETE
4XY-2141V-01-00
Unavailable
8
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
15
REAR FRAME COMP.
4XY-21190-02-00
Unavailable
16
BOLT, FLANGE
95817-10035-00
Unavailable
17
COVER 2
4XY-2117M-00-00
Unavailable
18
BOLT, WITH WASHER
90119-06236-00
Unavailable
19
COVER, SIDE 5
4XY-2171E-00-00
Unavailable
20
COVER, SIDE 6
4XY-2171X-00-00
Unavailable
21
SCREW, BINDING (10V)
90154-05013-00
Unavailable
22
RIVET
90269-06001-00
Unavailable
23
STAY, MUFFLER 1
4XY-21445-00-00
Unavailable
24
STAY, MUFFLER 2
4XY-21446-00-00
Unavailable
25
STAY, MUFFLER 3
4YE-2144F-01-00
Unavailable
26
BOLT, WASHER BASED(36Y)
90105-08310-00
Unavailable
27
DAMPER, MUFFLER
36Y-14747-00-00
Unavailable
28
COLLAR
4G0-14638-00-00
Unavailable
29
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
30
BOLT, FLANGE
95814-10040-00
Unavailable
31
BOLT, SOCKET
91317-08035-00
Unavailable
32
NUT, SELF-LOCKING
90185-08169-00
Unavailable
33
WASHER (853)
90201-08326-00
Unavailable
34
STAY, ENGINE 2
4XY-21315-20-00
Unavailable
35
STAY, ENGINE 3
4XY-21316-20-00
Unavailable
36
BOLT, SOCKET
91314-10035-00
Unavailable
37
WASHER, PLATE
92990-10600-00
Unavailable
38
GROMMET(41Y)
90480-01401-00
Unavailable
