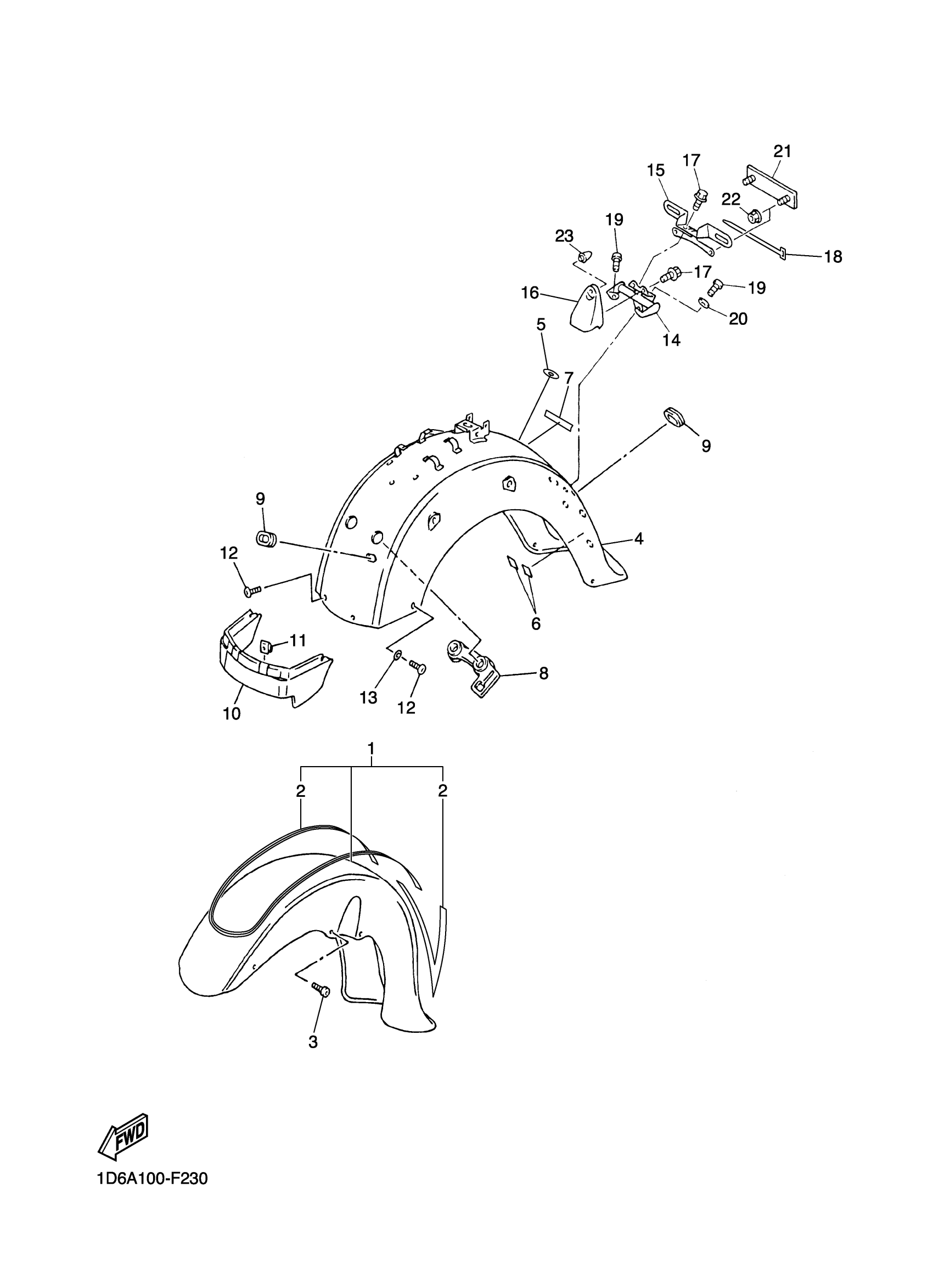

Yamaha XVZ13CTSXC (ROYAL STAR TOUR DELUXE S CA) 1D6L 2008 FENDER Diagram

FRONT FENDER ASSY (SILVER 3) (DARK BLUISH GRAY METALLIC 8)

4NK-Y2150-P0-5Y

Unavailable

. GRAPHIC SET, FRONT FENDER

1D6-21570-50-00

Unavailable

BOLT,SOCKET

91314-08025-00

$8.49

REAR FENDER COMP. (DARK BLUISH GRAY METALLIC 8)

5EJ-21610-00-P4

Unavailable

SEAL 2

4NK-21735-00-00

$6.99

PROTECTOR

3MA-27491-00-00

$8.99

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

DAMPER

4NK-21649-00-00

Unavailable

GROMMET (438)

90480-15061-00

$8.49

FLAP

4NK-21621-00-PA

Unavailable

NUT, SPRING(4ES)

90183-06069-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

WASHER, PLATE

90202-06170-00

Unavailable

STAY, 9

4XY-2317W-00-00

Unavailable

BRACKET, LICENSE

5BN-84751-00-00

$63.99

BRACKET

1D6-84703-01-00

Unavailable

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

CLAMP

90464-25002-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

DAMPER 2

42U-21639-00-00

Unavailable
