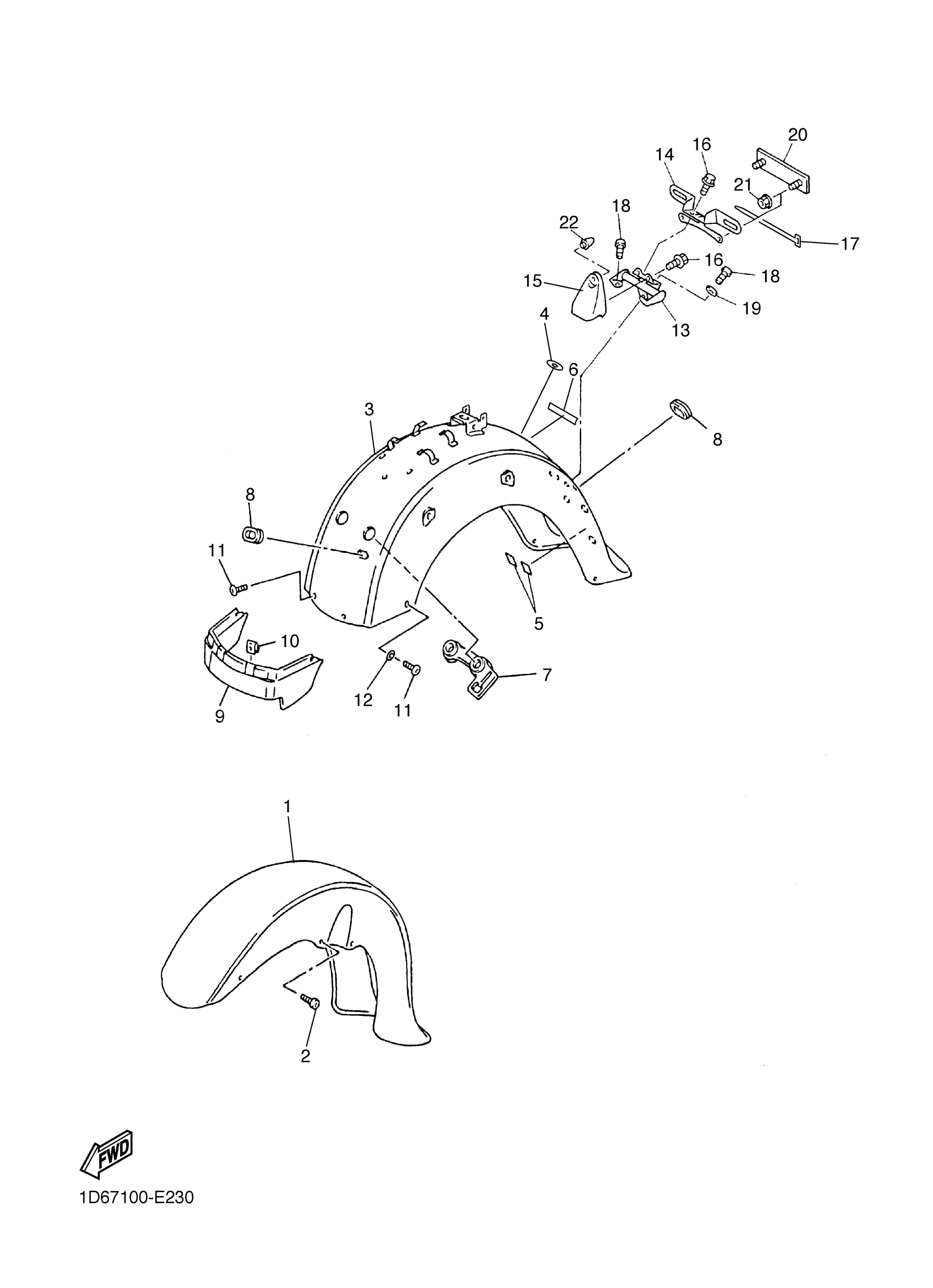

Yamaha XVZ13CTMWC (ROYAL STAR MIDNIGHT TOUR DELUXE CA) 1D6E 2007 FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

4NK-YK215-00-P1

Unavailable

2

BOLT,SOCKET

91314-08025-00

$8.49

3

REAR FENDER COMP.

5EJ-21610-00-P1

Unavailable

4

SEAL 2

4NK-21735-00-00

$6.99

5

PROTECTOR

3MA-27491-00-00

$8.99

6

EMBLEM, YAMAHA

3WF-2153E-71-00

$4.89

7

DAMPER

4NK-21649-00-00

Unavailable

8

GROMMET (438)

90480-15061-00

$8.49

9

FLAP

4NK-21621-00-P9

Unavailable

10

NUT, SPRING(4ES)

90183-06069-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

12

WASHER, PLATE

90202-06170-00

Unavailable

13

STAY, 9

4XY-2317W-00-00

Unavailable

14

BRACKET, LICENSE

5BN-84751-00-00

$63.99

15

BRACKET

1D6-84703-01-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

17

CLAMP

90464-25002-00

Unavailable

18

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable

19

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

20

REAR REFLECTOR ASSY

1FK-85130-00-00

Unavailable

21

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

22

DAMPER 2

42U-21639-00-00

Unavailable
