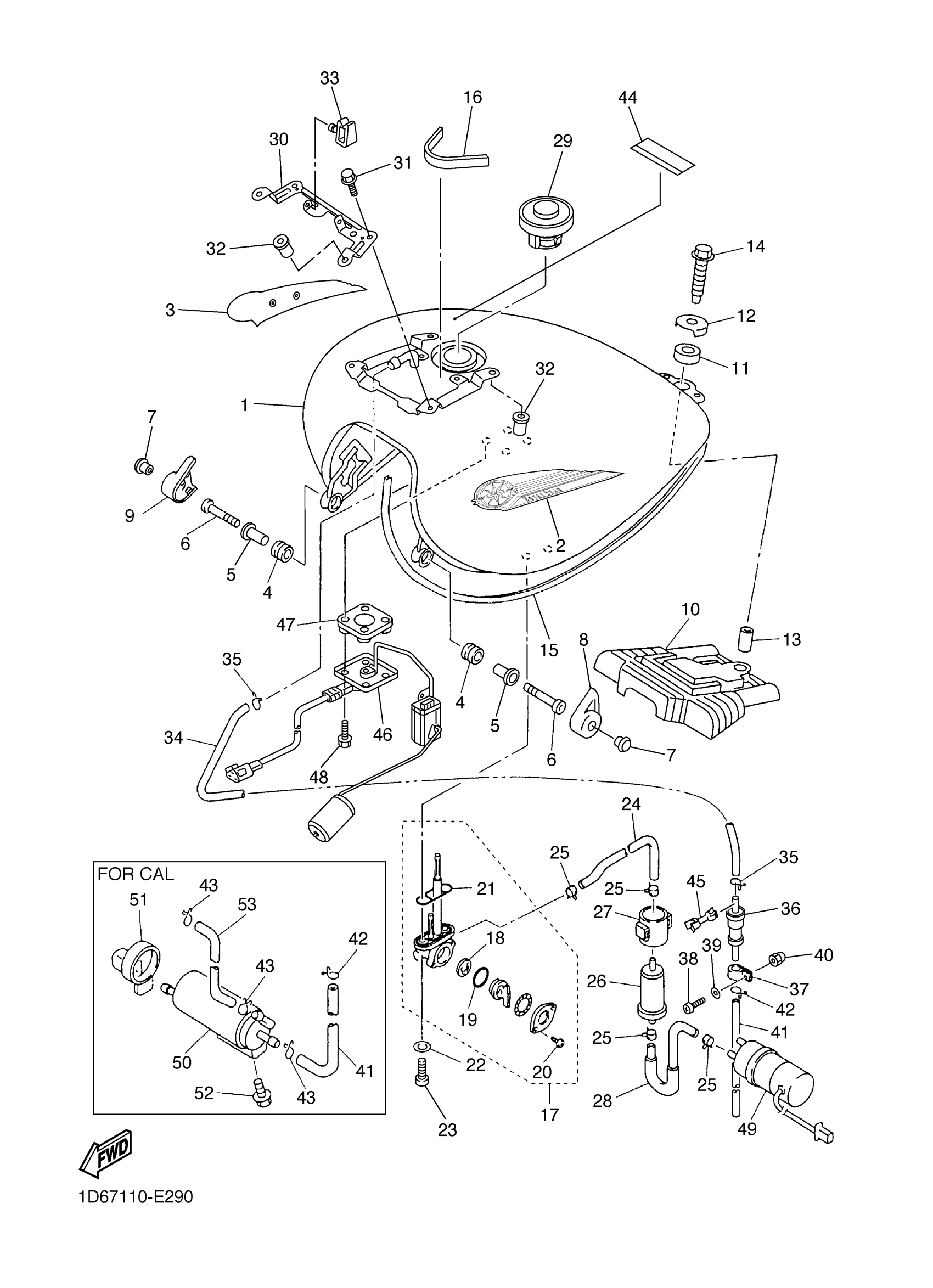

Yamaha XVZ13CTMVC (ROYAL STAR MIDNIGHT TOUR DELUXE CA) 1D68 2006 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP. (BLACK METALLIC X)

1D6-YK241-10-P1

Unavailable

2

EMBLEM

1D6-2416B-30-00

Unavailable

3

EMBLEM

1D6-2417B-30-00

Unavailable

4

GROMMET(4AA)

90480-18549-00

$10.49

5

COLLAR

90387-06091-00

$8.49

6

BOLT,SOCKET

91317-06035-00

Unavailable

7

PLUG

90338-05010-00

$8.49

8

COVER, SIDE 1

1D6-24129-00-00

$15.49

9

COVER, SIDE 2

1D6-24139-00-00

Unavailable

10

DAMPER, LOCATING 2

4XY-24182-00-00

Unavailable

11

DAMPER, LOCATING 3

4XY-24183-00-00

$8.99

12

WASHER, SPECIAL

42X-24186-00-00

$9.99

13

COLLAR

90387-0813V-00

$4.72

14

BOLT

90109-08002-00

$10.49

15

MOLD, FUEL TANK

1D6-24188-00-00

$71.99

16

SEAL

1D6-2414G-00-00

Unavailable

17

FUEL COCK ASSY 1

4WM-24500-10-00

Unavailable

18

VALVE PACKING

3AC-24523-00-00

Unavailable

19

SEAL, COCK

3AJ-24534-01-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

O-RING

4X8-24512-00-00

Unavailable

22

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

23

SCREW 256241430000

90149-06011-00

Unavailable

24

PIPE, FUEL 1

4XY-24311-00-00

Unavailable

25

CLIP (7K7)

90467-11044-00

Unavailable

26

FILTER ASSY

1FK-24560-10-00

Unavailable

27

BRACKET, FILTER

1FK-24566-00-00

Unavailable

28

PIPE 2

4NK-24312-00-00

Unavailable

29

CAP ASSY

4NK-24602-20-00

Unavailable

30

STAY, FUEL TANK 1

1D6-24157-00-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

32

NUT(1KT)

90179-05523-00

Unavailable

33

CLAMP

90464-06005-00

Unavailable

34

PIPE 10

1D6-24321-00-00

Unavailable

35

CLIP

90467-09002-00

Unavailable

36

ROLL OVER VALVE ASSY

5PX-24180-00-00

Unavailable

37

CLAMP

90464-15014-00

Unavailable

38

SCREW, PAN

98517-05012-00

Unavailable

39

WASHER(1RW)

92907-05600-00

Unavailable

40

NUT, CROWN(47X)

90176-05054-00

Unavailable

41

HOSE (L400)

90445-116K9-00

Unavailable

42

CLIP

90467-100A1-00

Unavailable

43

CLIP

90467-100A1-00

Unavailable

44

LABEL, CAUTION

5GK-2118K-00-00

Unavailable

45

CLAMP(2YK)

90464-13103-00

Unavailable

46

SENDER UNIT ASSY, FUEL METER

1D6-85752-01-00

Unavailable

47

GASKET, SENDER UNIT

5G3-85753-00-00

Unavailable

48

BOLT, WITH WASHER

90119-05071-00

Unavailable

49

FUEL PUMP COMP.

1D6-13907-01-00

Unavailable

50

CANISTER ASSY

4XY-24170-00-00

Unavailable

51

COVER, CANISTER

2JU-2419E-00-00

Unavailable

52

BOLT, FLANGE

95817-06010-00

Unavailable

53

HOSE

90445-113K3-00

Unavailable
