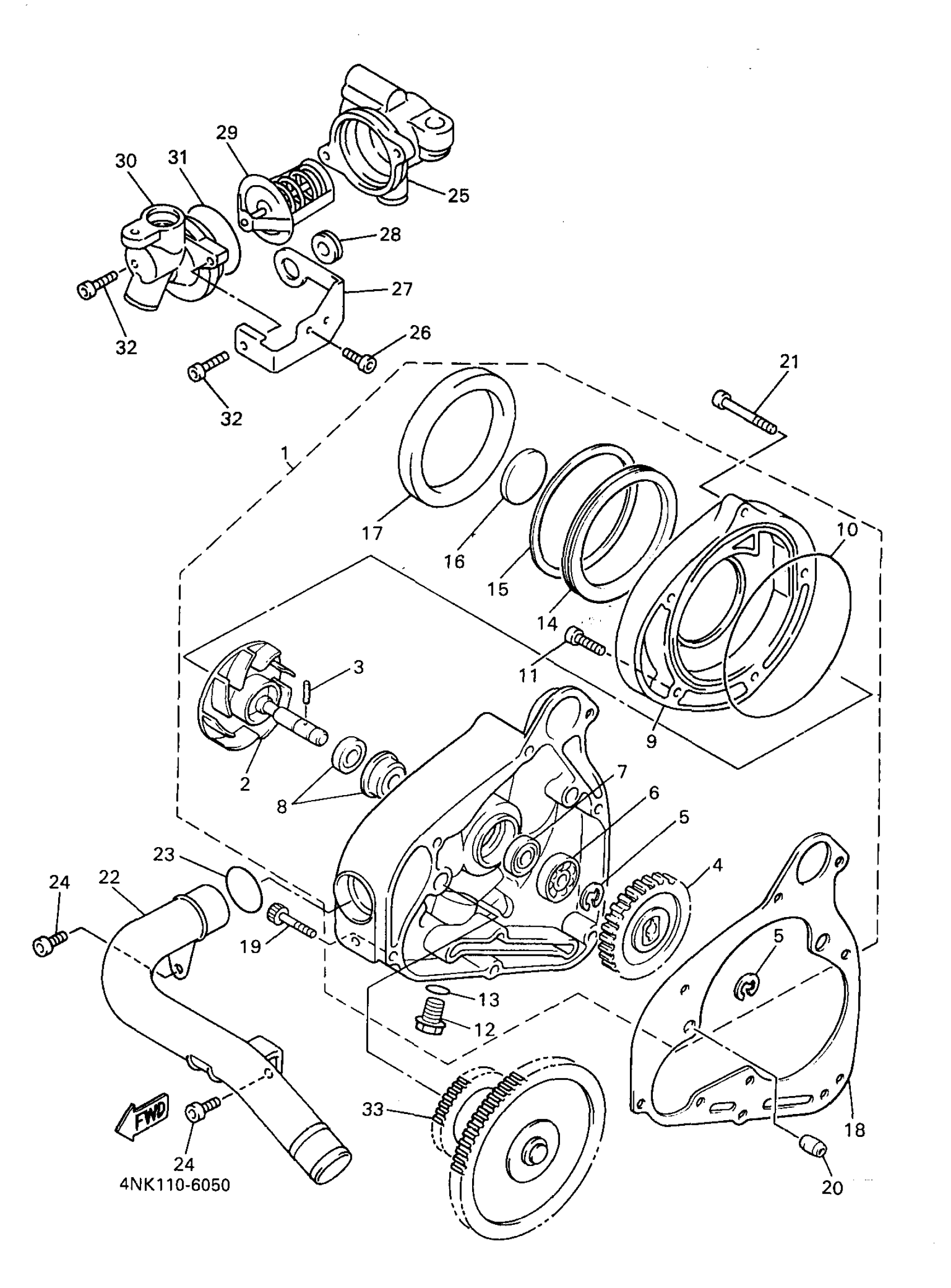

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

4NK-12420-03-00

Unavailable

2

INPELLER SHAFT ASSY

1FK-12450-00-00

$115.05

3

PIN, DOWEL

93603-14026-00

$6.12

4

GEAR, IMPELLER SHAFT (31T)

26H-12459-00-00

Unavailable

5

CIRCLIP(10W)

99009-10400-00

$3.65

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$30.52

7

OIL SEAL (J10)

93101-10090-00

$5.75

8

SEAL, MECHANICAL

11H-12438-10-00

$48.82

9

COVER, HOUSING

4NK-Y124E-02-00

$335.03

10

O-RING (26H)

93211-16591-00

$12.08

11

BOLT, SOCKET

91314-06030-00

$5.75

12

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

13

GASKET

214-11198-01-00

$1.93

14

DAMPER 4

26H-15337-01-00

Unavailable

15

CLIP (26H)

90468-98132-00

$9.80

16

DAMPER, ENGINE MOUNT 5

26H-15338-00-00

Unavailable

17

. STOPPER

4NK-12437-00-00

Unavailable

18

GASKET, WATER PUMP

4NK-12449-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

BOLT, SOCKET

91314-06080-00

Unavailable

22

PIPE 3

4NK-12483-00-00

Unavailable

23

O-RING(1LT)

93210-23787-00

Unavailable

24

BOLT,SOCKET HEAD

91314-06014-00

Unavailable

25

HOUSING, THERMOSTAT

4NK-12417-00-00

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable

27

BRACKET 1

4NK-1244E-00-00

Unavailable

28

GROMMET (4L0)

90480-18276-00

Unavailable

29

THERMOSTAT ASSY

1AE-12410-01-00

Unavailable

30

COVER, THERMOSTAT

4NK-12413-00-00

Unavailable

31

O-RING (620)

93210-49046-00

Unavailable

32

BOLT,SOCKET

91317-06020-00

Unavailable

33

IMPELLER SHAFT ASSY

4NK-12450-00-00

Unavailable
