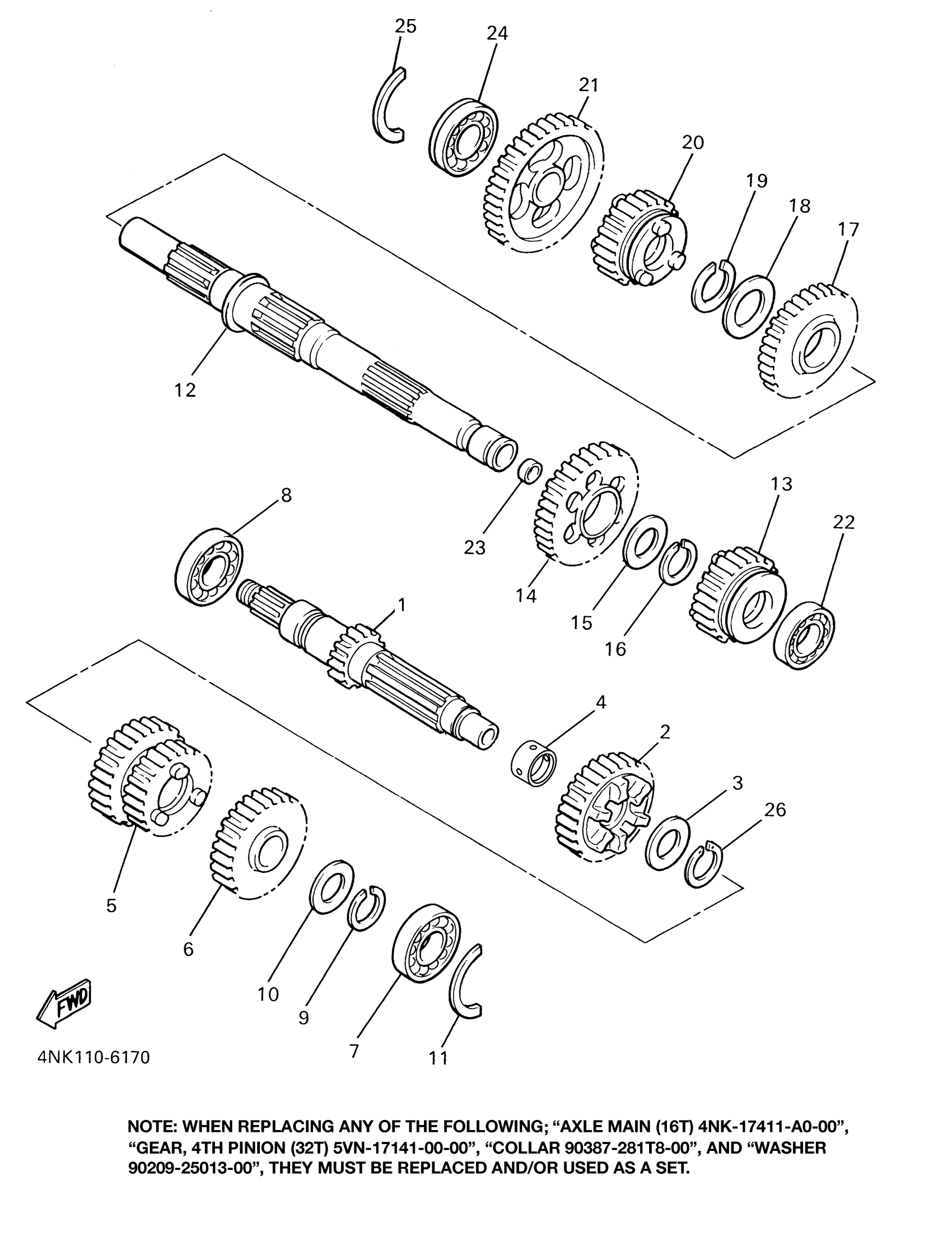

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 TRANSMISSION Diagram
#
Description
Price
1
AXLE, MAIN
4NK-17411-A0-00
Unavailable
2
GEAR, 4TH PINION
5VN-17141-00-00
Unavailable
3
WASHER
90209-25013-00
Unavailable
4
COLLAR(2GH)
90387-281T8-00
Unavailable
5
GEAR, 2ND PINION
4NK-17121-02-00
Unavailable
6
GEAR, 5TH PINION
4NK-17151-00-00
Unavailable
10
WASHER, PLATE(1FK)
90201-232K5-00
Unavailable
12
DRIVE AXLE ASSY
4NK-17402-00-00
Unavailable
13
GEAR, 5TH WHEEL
4NK-17251-00-00
Unavailable
15
WASHER (26H)
90209-32231-00
Unavailable
16
CIRCLIP (2H7)
93440-28062-00
Unavailable
16
CIRCLIP (371)
93440-34025-00
Unavailable
17
GEAR, 3RD WHEEL
4NK-17231-01-00
Unavailable
18
WASHER (3J3)
90209-27192-00
Unavailable
19
CIRCLIP (3J3)
93440-30077-00
Unavailable
20
GEAR, 4TH WHEEL
4NK-17241-02-00
Unavailable
21
GEAR, 1ST WHEEL (39T)
4NK-17211-01-00
Unavailable
22
BEARING(4NK)
93306-20645-00
Unavailable
23
PLUG (26H)
90331-15039-00
Unavailable
24
BEARING (26H)
93306-20555-00
Unavailable
26
CIRCLIP (2H7)
93440-28062-00
Unavailable
