Partiron

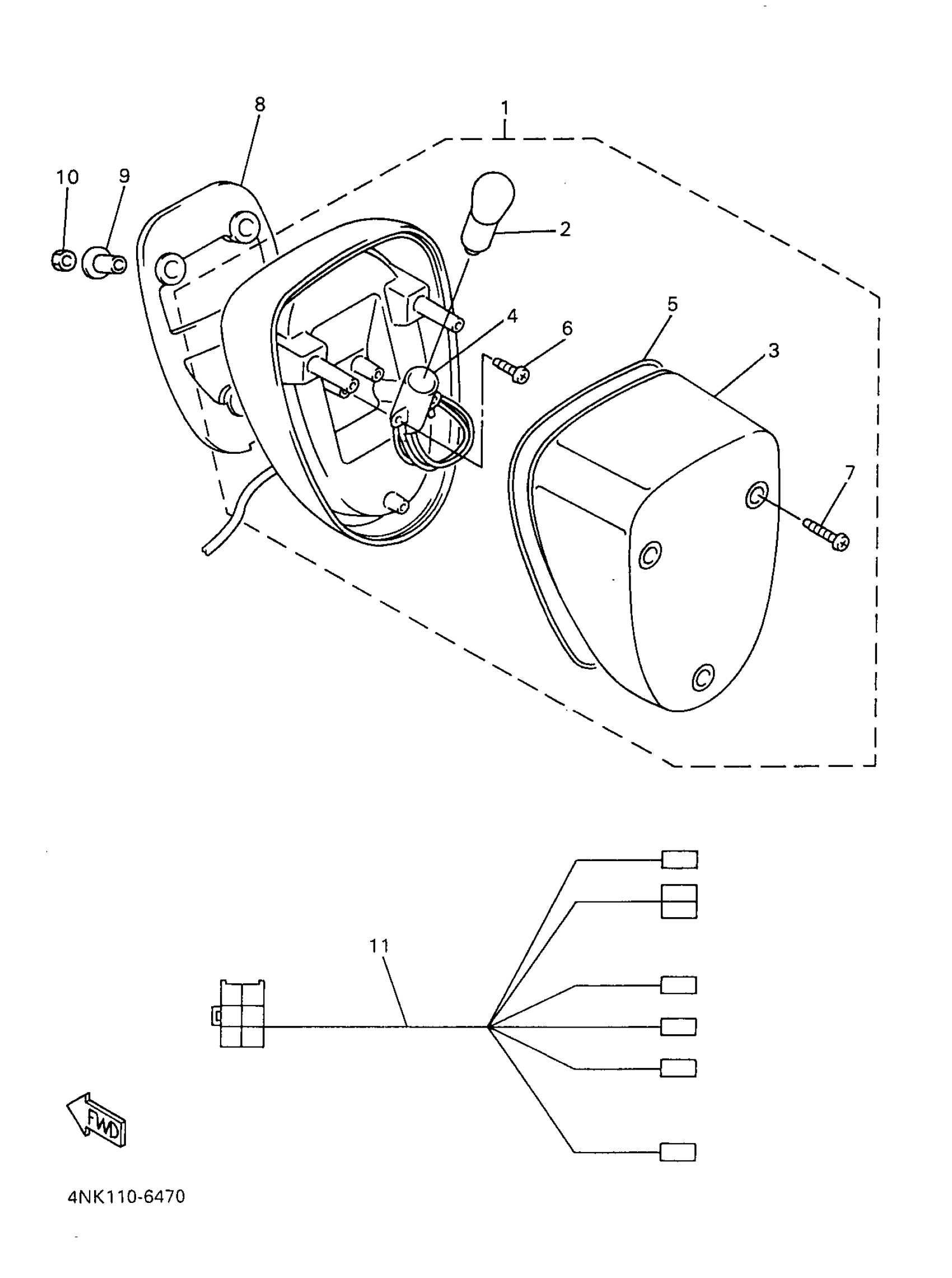

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5BN-84700-01-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

LENS, TAILLIGHT

4NK-84721-00-00

$26.57

4

CORD ASSY

5BN-84735-00-00

$23.36

5

SEAL

1VJ-14462-00-00

$15.00

6

SCREW, TAPPING

97780-40116-00

$3.57

7

SCREW, TAPPING(7G6)

97780-40525-00

$5.61

8

DAMPER

4NK-84527-01-00

Unavailable

9

COLLAR

90387-06158-00

$5.75

10

NUT(6TA)

95317-06600-00

$2.52

11

CORD, TAILLIGHT

5BN-84717-00-00

Unavailable
