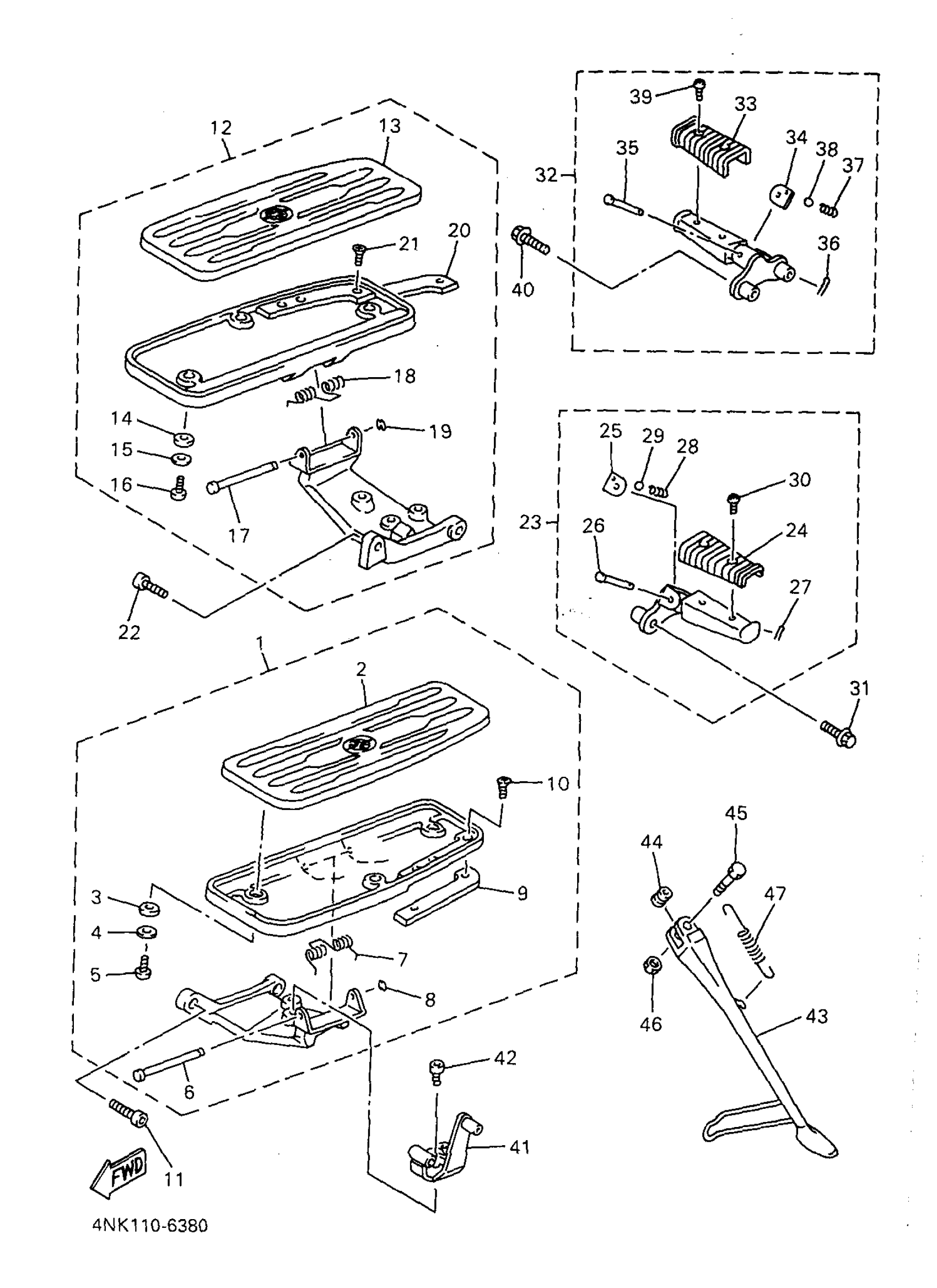

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 STAND FOOTREST Diagram

#

Description
Price

1

FRONT FOOTREST ASSY (LEFT)

4XY-27410-10-00

Unavailable

2

. COVER, FOOTREST

4NK-27413-00-00

Unavailable

3

. DAMPER, FOOTREST

4NK-27414-00-00

Unavailable

4

WASHER (676)

90201-05660-00

$7.49

5

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

6

SHAFT

3D8-27427-00-00

$7.99

7

SPRING, RETURN

4NK-27426-00-00

$6.99

8

CIRCLIP(53L)

99001-06600-00

$1.01

9

MOLE 1

4NK-27496-00-00

$25.99

10

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

11

BOLT,SOCKET

91314-10030-00

$5.60

12

FRONT FOOTREST ASSY (RIGHT)

4XY-27420-10-00

Unavailable

13

. COVER, FOOTREST

4NK-27423-00-00

Unavailable

14

. DAMPER, FOOTREST

4NK-27414-00-00

Unavailable

15

WASHER (676)

90201-05660-00

$7.49

16

BOLT, BUTTON HEAD(4NK)

92014-05010-00

$8.49

17

SHAFT

3D8-27427-00-00

$7.99

18

SPRING, RETURN

4NK-27426-00-00

$6.99

19

CIRCLIP(53L)

99001-06600-00

$1.01

20

MOLE 2

4NK-27497-00-00

Unavailable

21

SCREW, FLAT HEAD (716)

98780-05010-00

Unavailable

22

BOLT,SOCKET

91314-10030-00

$5.60

23

REAR FOOTREST ASSY 1

4NK-27430-00-00

Unavailable

24

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

25

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

26

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

27

PIN, COTTER

91490-16020-00

Unavailable

28

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

29

BALL

93501-04011-00

Unavailable

30

SCREW, PAN

98517-06012-00

Unavailable

31

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

32

REAR FOOTREST ASSY 2

4NK-27440-00-00

Unavailable

33

COVER, REAR FOOTREST

1NH-27433-00-00

Unavailable

34

. WASHER, SPECIAL

2NT-27437-00-00

Unavailable

35

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable

37

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

38

BALL

93501-04011-00

Unavailable

39

SCREW, PAN

98517-06012-00

Unavailable

40

BOLT, FLANGE (3JPE)

95024-08030-00

Unavailable

41

BRACKET 3

4NK-27443-00-00

Unavailable

42

BOLT, SOCKET

91317-08014-00

Unavailable

43

STAND, SIDE

4NK-27311-01-00

Unavailable

44

COLLAR(4NK)

90387-1007K-00

Unavailable

45

BOLT(M35)

90101-10776-00

Unavailable

46

NUT, U

90185-10037-00

Unavailable

47

SPRING, TENSION(36Y)

90506-29358-00

Unavailable
