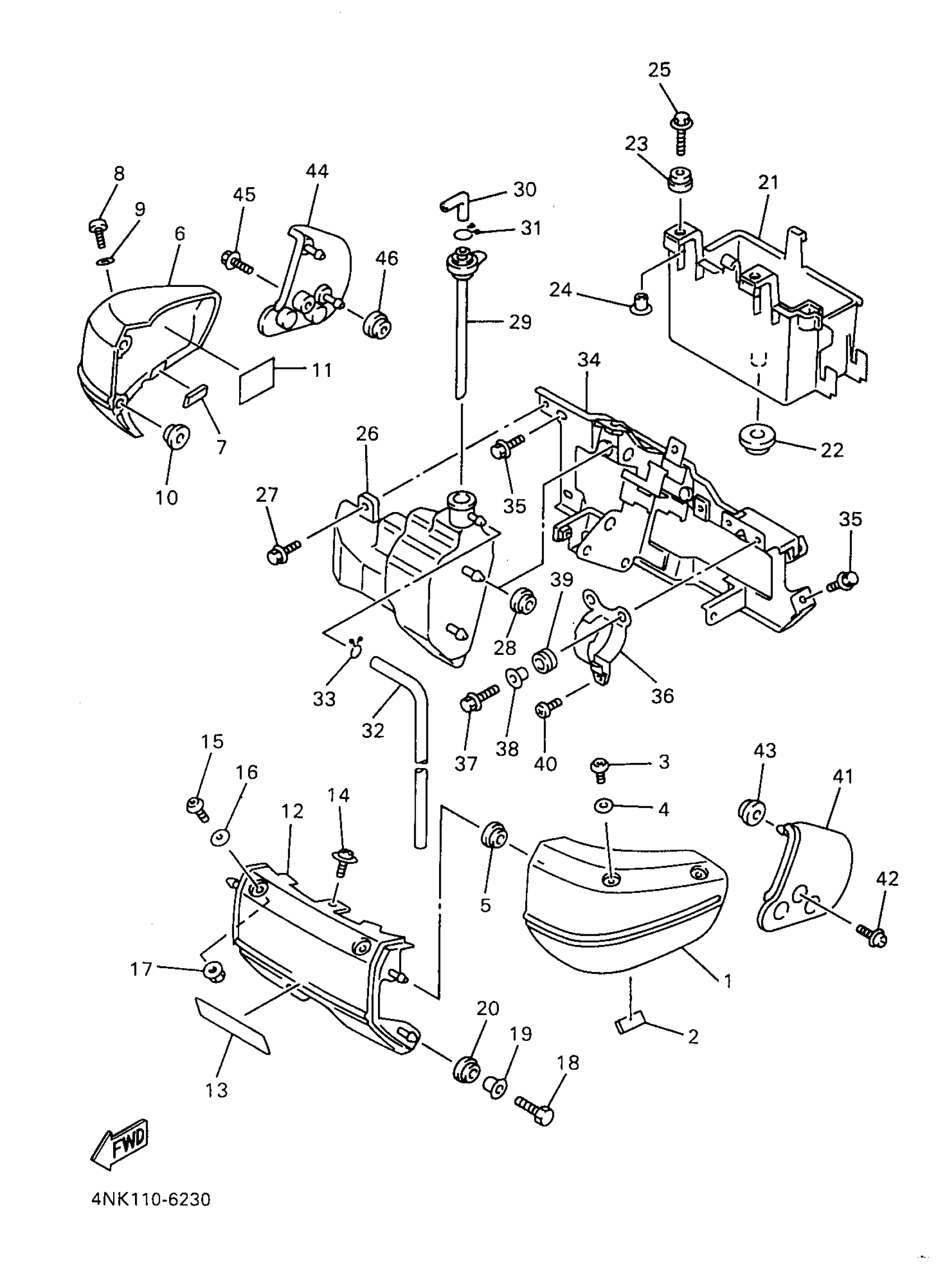

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 SIDE COVER Diagram
#
1
COVER, SIDE 1
4NK-21711-00-4B
Unavailable
1
COVER, SIDE 1 (MATURE RED)
4NK-21711-00-FE
Unavailable
1
COVER, SIDE 1 (ENTICER MAROON) (SHIROBAI WHITE)
4NK-21711-00-GW
Unavailable
1
COVER, SIDE 1
4NK-21711-00-JW
Unavailable
4
WASHER, PLATE
90202-06170-00
Unavailable
6
COVER, SIDE 2
4NK-21721-00-4B
Unavailable
6
COVER, SIDE 2 (MATURE RED)
4NK-21721-00-FE
Unavailable
6
COVER, SIDE 2 (ENTICER MAROON) (SHIROBAI WHITE)
4NK-21721-00-GW
Unavailable
6
COVER, SIDE 2
4NK-21721-00-JW
Unavailable
9
WASHER, PLATE
90202-06170-00
Unavailable
11
SEAL,2
1JK-21735-00-00
Unavailable
12
COVER 9
4NK-2117X-00-4B
Unavailable
12
COVER 9
4NK-2117X-01-FE
Unavailable
12
COVER 9 (ENTICER MAROON) (SHIROBAI WHITE)
4NK-2117X-00-GW
Unavailable
12
COVER 9
4NK-2117X-00-JW
Unavailable
13
PROTECTOR
52W-2117G-00-00
Unavailable
14
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
16
WASHER, PLATE
90202-06170-00
Unavailable
17
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
18
BOLT, HEXAGON
97017-06020-00
Unavailable
19
COLLAR(1LJ)
90387-067N5-00
Unavailable
20
GROMMET
90480-13014-00
Unavailable
21
BOX, BATTERY
4NK-2177G-00-00
Unavailable
22
GROMMET(42X)
90480-20384-00
Unavailable
23
GROMMET
90480-13014-00
Unavailable
24
COLLAR(1LJ)
90387-067N5-00
Unavailable
25
BOLT, WITH WASHER (10V)
90119-06063-00
Unavailable
26
TANK, RECOVERY
4NK-21871-00-00
Unavailable
27
BOLT, WITH WASHER
90119-06242-00
Unavailable
29
CAP
1B7-21875-00-00
Unavailable
30
ELBOW
26H-21828-00-00
Unavailable
31
CLIP(72X)
90467-11M08-00
Unavailable
32
HOSE (L545)
90445-09361-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
PLATE, BRIDGE
4NK-21243-01-00
Unavailable
35
BOLT, FLANGE
95817-06010-00
Unavailable
36
BRACKET, FUEL PUMP
3CV-24491-10-00
Unavailable
37
BOLT, FLANGE
95817-06016-00
Unavailable
38
COLLAR(42G)
90387-062L2-00
Unavailable
39
GROMMET (1E5)
90480-13163-00
Unavailable
40
SCREW, BINDING
98907-05010-00
Unavailable
41
COVER, SIDE 3
4NK-21731-00-00
Unavailable
42
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
44
COVER, SIDE 4
4NK-21741-00-00
Unavailable
45
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
