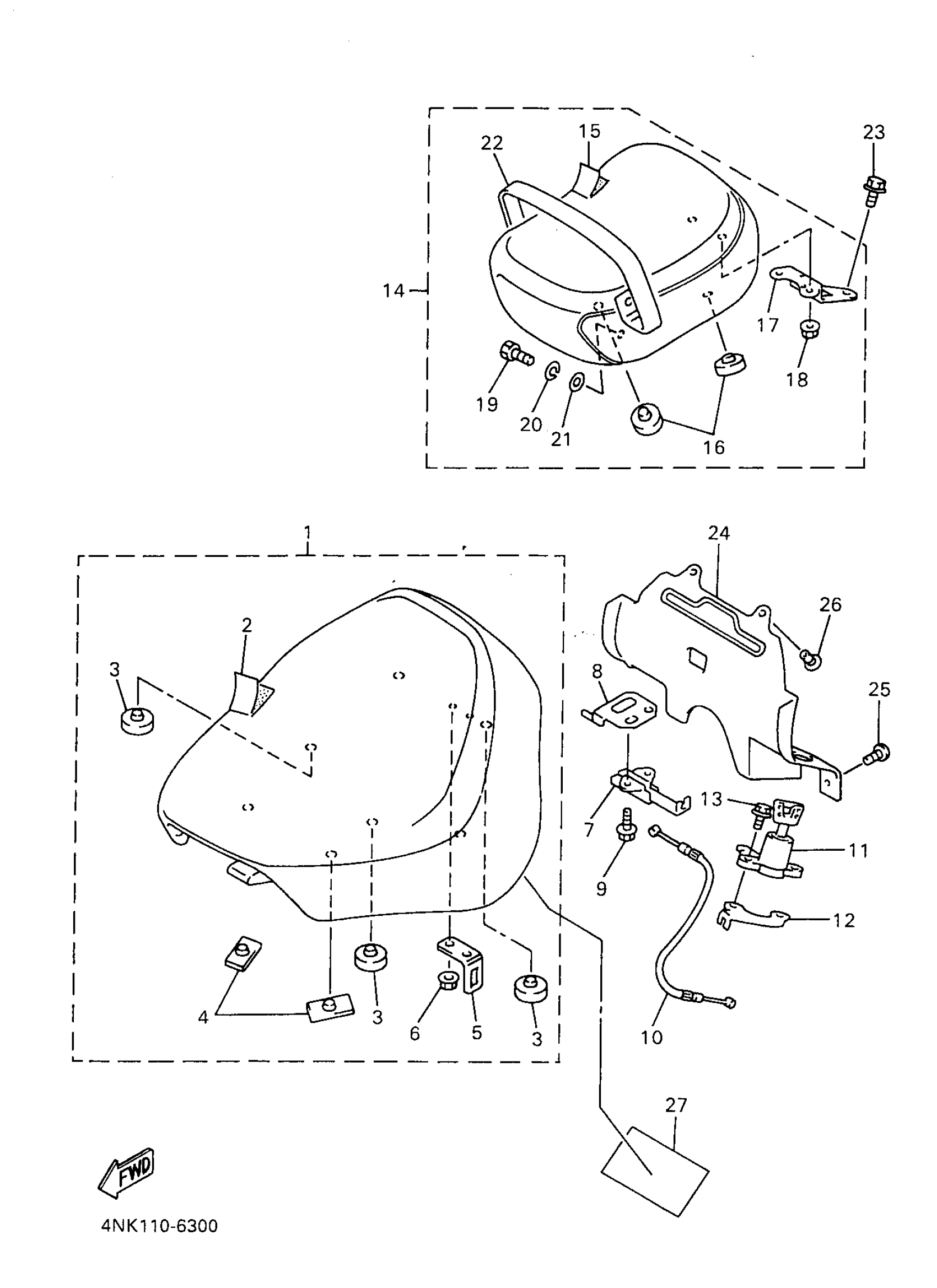

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

4NK-24710-00-00

Unavailable

1

SINGLE SEAT ASSEMBLY

4NL-24710-00-00

Unavailable

2

. COVER, SINGLE SEAT

4NK-24711-00-00

Unavailable

2

. COVER, SINGLE SEAT

4NL-24711-00-00

Unavailable

3

PAD, SEAT

22W-24741-00-00

$8.99

4

DAMPER, SEAT

509-24724-00-00

$10.99

5

BRACKET, SEAT

4NK-24728-00-00

$11.99

6

NUT, FLANGE(4MV)

95707-06500-00

$1.23

7

SEAT LOCK ASSY

50W-W247E-00-00

Unavailable

8

PLATE

4NK-24792-00-00

Unavailable

9

BOLT, FLANGE

95817-06014-00

Unavailable

10

CABLE, SEAT LOCK

4NK-2478E-00-00

Unavailable

11

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

12

BRACKET, SEAT LOCK

4NK-2478X-00-00

Unavailable

13

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

14

TANDEM SEAT ASSY

4NK-24750-00-00

Unavailable

14

TANDEM SEAT ASSEMBLY

4NL-24750-00-00

Unavailable

15

. COVER, TANDEM SEAT

4NK-24751-00-00

Unavailable

15

. COVER, TANDEM SEAT

4NL-24751-00-00

Unavailable

16

PAD, SEAT

22W-24741-00-00

$8.99

17

STAY, SEAT

4NK-2471A-00-00

Unavailable

18

NUT, FLANGE(4MV)

95707-06500-00

$1.23

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

WASHER, SPRING

92907-06100-00

Unavailable

21

WASHER, PLATE

90201-06020-00

Unavailable

22

. HOOK, SEAT

4NK-24754-00-00

Unavailable

23

BOLT, FLANGE(2UJ)

95024-08012-00

Unavailable

24

COVER

4NK-24796-00-00

Unavailable

25

BOLT,HEX. SOCKET BUTTON

90111-05059-00

Unavailable

26

RIVET

90269-06001-00

Unavailable

27

PLATE, EPA 2

4NK-2179R-10-00

Unavailable

27

PLATE, EPA 1

4NK-2179V-10-00

Unavailable
