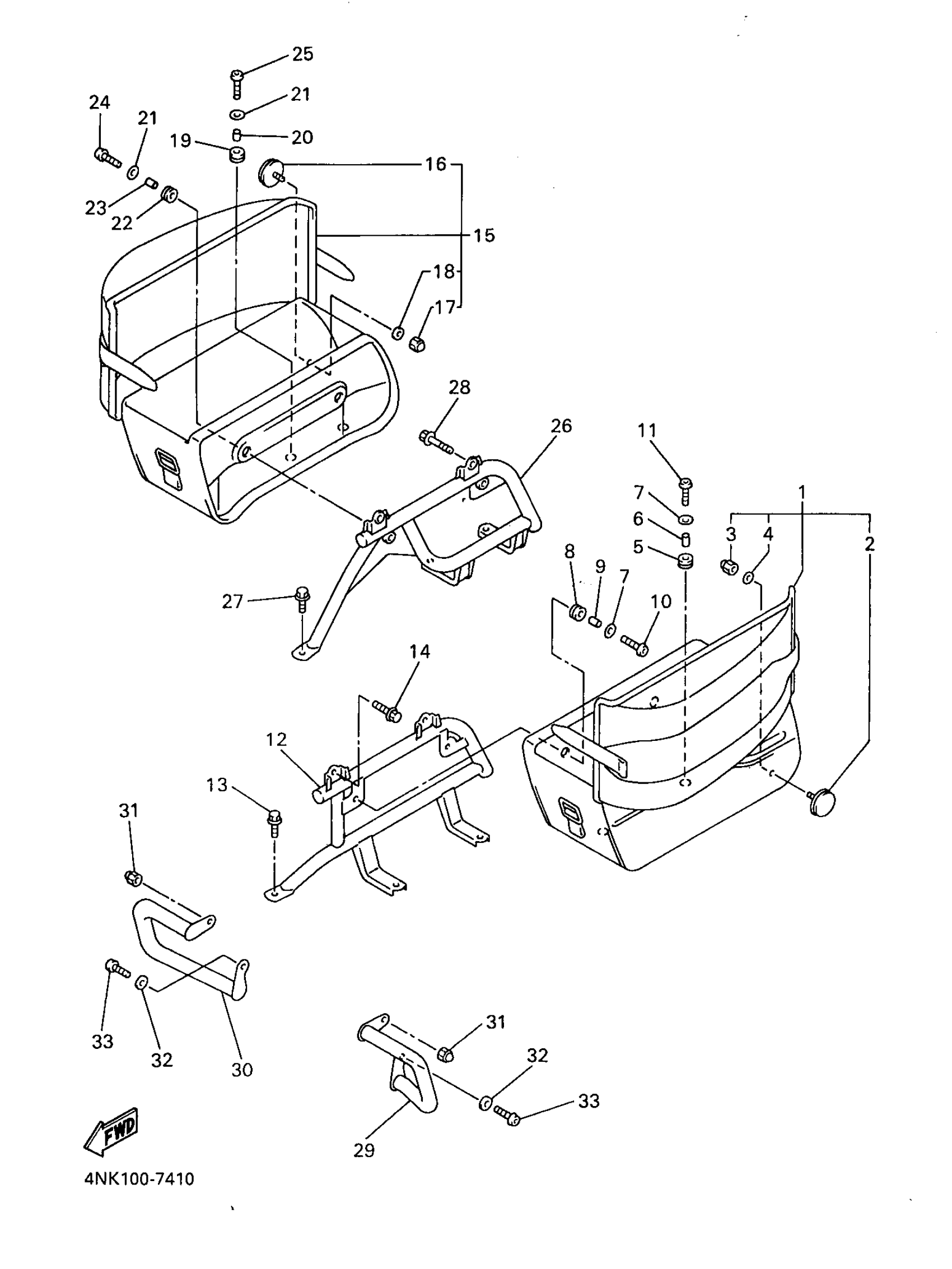

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 SADDLEBAG 1 Diagram

#

Description
Price

1

SADDLEBAG COMP. 1

4NL-F8430-00-00

Unavailable

2

REFLECTOR, REAR 1

449-85131-02-00

$30.99

3

NUT, CROWN(8V0)

90176-05059-00

$2.44

4

WASHER(1RW)

92907-05600-00

$3.78

5

GROMMET 437147470000

90480-20132-00

$8.49

6

COLLAR(88R)

90387-061Y7-00

$4.56

7

WASHER PLATE 248217570000

90201-06074-00

$9.49

8

GROMMET

90480-20338-00

$4.14

9

COLLAR (8A7)

90387-06518-00

$7.49

10

BOLT, BUTTON HEAD

92017-06025-00

$9.49

11

BOLT, BUTTON

92017-06030-00

$8.49

12

FRAME, SADDLEBAG 1

4NL-F8473-00-00

Unavailable

13

BOLT, FLANGE

95817-08012-00

$5.49

14

BOLT, FLANGE

95817-08050-00

$2.44

15

SIDE BAG COMP.

4NL-F8440-00-00

Unavailable

16

REFLECTOR, REAR 1

449-85131-02-00

$30.99

17

NUT, CROWN(8V0)

90176-05059-00

$2.44

18

WASHER(1RW)

92907-05600-00

$3.78

19

GROMMET 437147470000

90480-20132-00

$8.49

20

COLLAR(88R)

90387-061Y7-00

$4.56

21

WASHER PLATE 248217570000

90201-06074-00

$9.49

22

GROMMET

90480-20338-00

$4.14

23

COLLAR (8A7)

90387-06518-00

$7.49

24

BOLT, BUTTON HEAD

92017-06025-00

$9.49

25

BOLT, BUTTON

92017-06030-00

$8.49

26

FRAME, SADDLEBAG 2

4NL-F8474-00-00

Unavailable

27

BOLT, FLANGE

95817-08012-00

$5.49

28

BOLT, FLANGE

95817-08050-00

$2.44

29

GUARD, ENGINE 1

4NL-F8418-00-00

Unavailable

30

GUARD, ENGINE 2

4NL-F8419-00-00

Unavailable

31

NUT, CROWN(2GG)

90176-10075-00

Unavailable

32

WASHER(6TA)

92907-10600-00

Unavailable

33

BOLT, BUTTON

92017-10030-00

Unavailable
