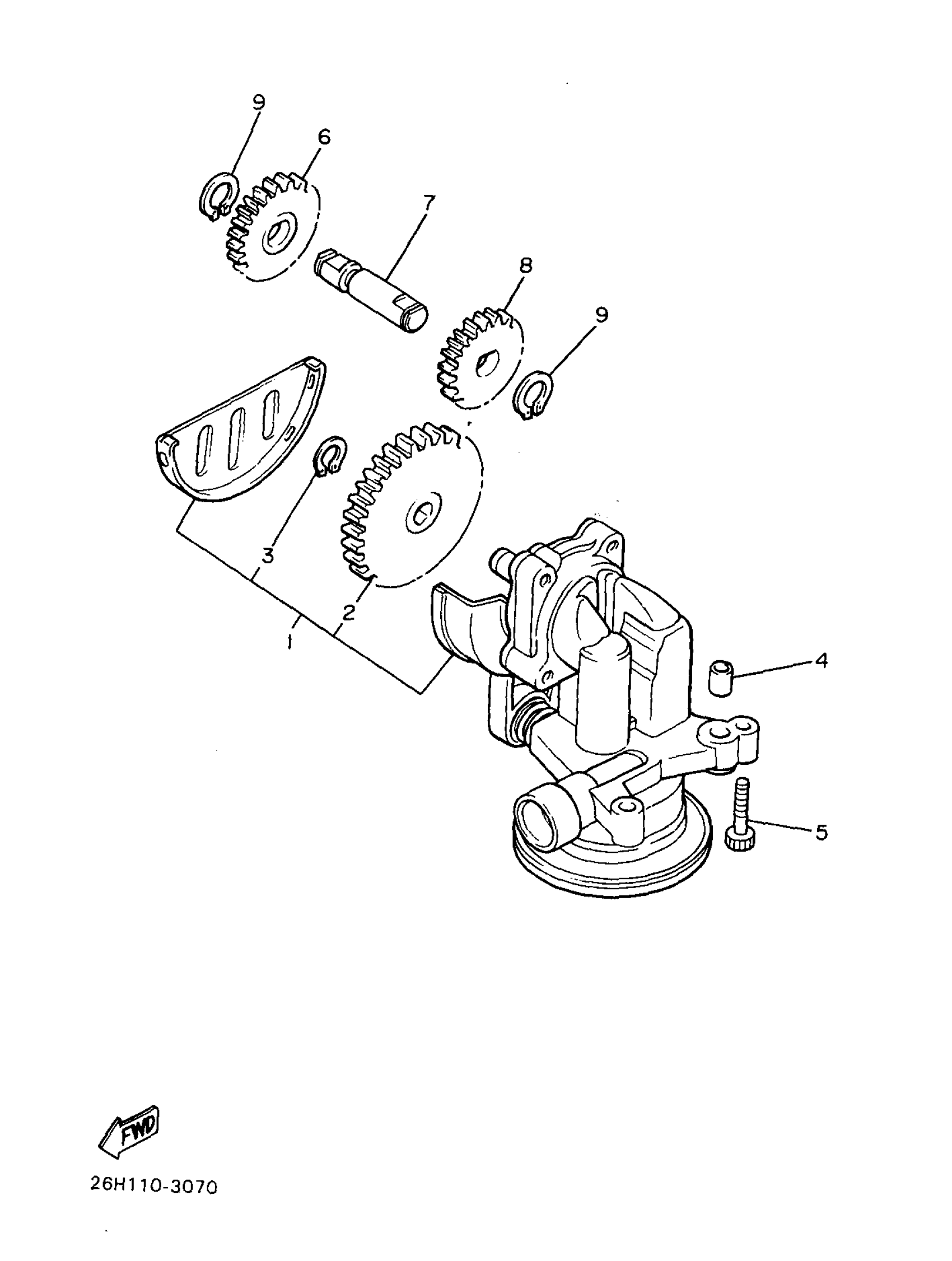

Yamaha XVZ13ATJC (ROYAL STAR TOUR CLASSIC CA) 1997 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASS'Y

26H-13300-02-00

Unavailable

2

GEAR, PUMP DRIVEN (28T)

26H-13325-00-00

Unavailable

3

CIRCLIP(24H)

99009-11400-00

$5.75

4

PIN, DOWEL(3VD)

99530-10114-00

$2.13

5

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06240-00

$6.57

6

GEAR, PUMP IDLE 1 (16T)

26H-13351-01-00

$40.12

7

SHAFT, IDLE GEAR

26H-13342-00-00

Unavailable

8

GEAR, PUMP IDLE 2 (15T)

26H-13361-00-00

Unavailable

9

CIRCLIP(10Y)

99009-12400-00

$2.87
